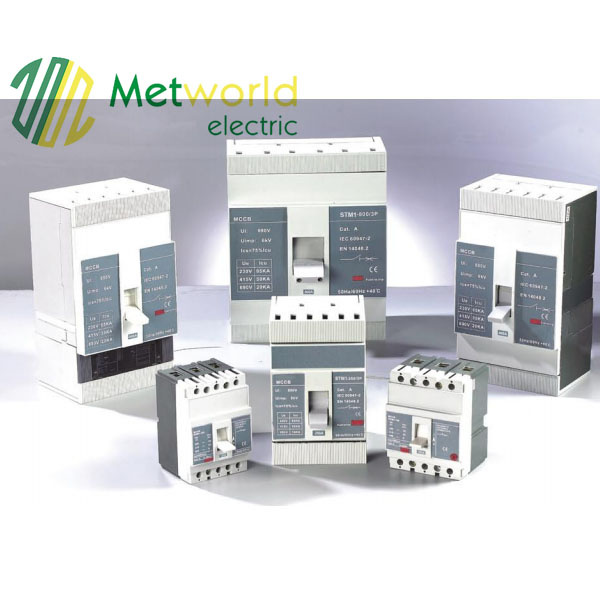

Molded Case Circuit Breaker / Molded Case Circuit Breaker MCCB

Prod Model:	MGM, STM, etc.
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
No. Of Pole:	2, 3, 4
Dimension:	Customized
Capacity:	S, H, R
Frame Size Rated Current:	63, 100, 255, 250, 400, 630, 800A
Arcing Distance:	<=50, 100
Rated Operational Voltage:	380, 400, 415, 690V
Rated Insulation Voltage:	500, 800V
Rated Current:	10, 16, 20, 25, 32, 40, 50, 63, 80, 100, 125, 160, etc.
Series:	Mgm
AC Or DC:	AC
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCCB
Poles Number:	3
Certification:	CCC
Function:	MCCB

Product Description

Moulded Case Circuit Breaker
Model series:
MGM1-100, MGM1-160,MGM1-250,MGM1-400,MGM1-630

The Gross weight	12pcs/21.5kg
The dimension	35.5*36.5*30.5(cm)
M.O.Q	20pcs (Samples Excepted)
Payment term	T/T, L/C,D/P,O.A
Delivery time	Usually 25 days (Negotiable for different order quantity)
Standard:	IEC60947-2


Promote the products with our own brand (As one of our agents in your market)
Promote the products with neutral packing
Do OEM for you.

Application:
overload, short circuit, under-voltage protection

Characteristics:
MGM1 series moulded case circuit breaker is one of the most advanced type breakers in the world. They are suitable for short circuit and overload protection for circuit of AC690V 50/60Hz, rated current from 12.5A to 630A. Its rated insulation voltage is 690V. It can be used as switch to make and break the circuit infrequently start, stop and protect overload, short circuit and under voltage.
