| Prod Model: |
HLLH~8S-76D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Mode: |
Heating and Cooling |
| Refrigerant: |
R22, R407c, R134A |
| Compressor: |
Copeland |
| Certification: |
CE |
| Type: |
Heat Pump |
| Usage: |
Ventilation |
| Control Type: |
Digital |
| Display Type: |
LED |
| Material: |
Stainless Steel |
Product Description

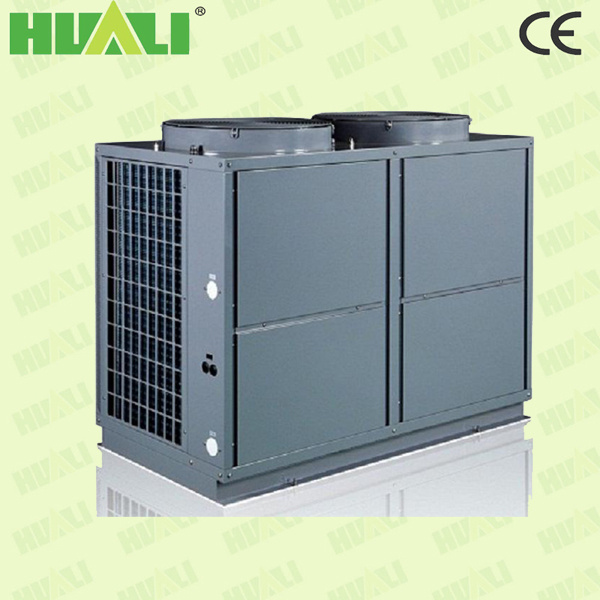

Air to water heat pump
1, Energy-efficient: The ratio output against input is coefficient of performance (COP). Normally it can be more than 4.
2, Environmental protection: There is no waste water, waste residue, used heat, the waste gas discharged. It will not produce any pollution to the atmosphere and environment.
3, Modular controlling function: As per the actual requirements, one or more units can be added to combine a heat water supply system, which are controlled by modular. `
4, Automatic energy balance: According to ambiguous controlling principle, the unit checks the load dynamically. When the unit reaches the setting temperature, the unit keeps the load in balance.
|
Model HLLH- |
8S |
9S |
16D |
20D |
33D |
40D |
43D |
57D |
76D |
|
Heating input power |
Heating mode |
KW |
2.03 |
2.29 |
4.09 |
4.9 |
8.24 |
9.84 |
10.6 |
14.2 |
18.8 |
|
Heating capacity |
KW |
8.1 |
9.1 |
16.4 |
19.5 |
32.8 |
39.1 |
43.4 |
57.2 |
75.6 |
|
COP |
|
3.99 |
3.97 |
4.01 |
3.98 |
3.98 |
3.97 |
4.09 |
4.03 |
4.02 |
|
Heating current |
A |
10.2 |
4.5 |
7.5 |
8.5 |
14.5 |
17 |
20 |
26 |
33 |
|
Water flow when heating |
L/h |
2000 |
2200 |
4000 |
4600 |
8000 |
9200 |
10500 |
13800 |
18500 |
|
Cooling input power |
Cooling mode |
KW |
2.32 |
2.62 |
4.71 |
5.42 |
9.42 |
10.6 |
12.3 |
15.9 |
22.3 |
|
Cooling capacity |
KW |
6.3 |
7.1 |
12.8 |
15.1 |
25.6 |
29.6 |
33.4 |
43.8 |
60.2 |
|
EER |
|
2.72 |
2.71 |
2.72 |
2.79 |
2.72 |
2.79 |
2.72 |
2.75 |
2.70 |
|
Cooling current |
A |
10.70 |
4.80 |
8.00 |
9.30 |
16.00 |
18.50 |
22.00 |
28.00 |
36.00 |
|
Water flow |
L/h |
1400 |
1600 |
2800 |
3400 |
5600 |
6700 |
7500 |
10200 |
13500 |
|
Water pressure drop |
K pa |
≥ 70 |
≥ 70 |
≥ 70 |
≥ 80 |
≥ 80 |
≥ 80 |
≥ 70 |
≥ 70 |
≥ 70 |
|
Level of protection |
|
IPX4 |
IPX4 |
IPX4 |
IPX4 |
IPX4 |
IPX4 |
IPX4 |
IPX4 |
IPX4 |
|
Electric shock proof grade |
|
I |
I |
I |
I |
I |
I |
I |
I |
I |
|
Noise |
db |
50 |
50 |
60 |
60 |
65 |
65 |
65 |
75 |
75 |
|
Net weight |
kg |
96 |
96 |
140 |
144 |
280 |
300 |
372 |
482 |
582 |
|
Gross weight |
kg |
104 |
104 |
150 |
154 |
295 |
320 |
412 |
532 |
642 |
|
Pipe size |
mm |
25 |
25 |
25 |
25 |
32 |
32 |
50 |
50 |
65 |
|
Power supply |
V |
220V/50Hz/1ph |
380V/50Hz/3ph |
|
Power supply L wire line |
Mm2 |
2.5 |
2.5 |
4 |
6 |
6 |
6 |
10 |
10 |
16 |
|
Power supply N wire line |
Mm2 |
|
1.5 |
2.5 |
2.5 |
2.5 |
2.5 |
4 |
4 |
6 |
|
Dimension |
mm |
830*490*1160 |
830*490*1160 |
1110*490*1260 |
1110*490*1260 |
1450*740*1150 |
1580*855*1200 |
1500*800*1515 |
1850*1000*1950 |
2000*1100*2080 |
|
Packing dimension |
mm |
890*550*1290 |
890*550*1290 |
1170*550*1390 |
1170*550*1390 |
1510*800*1280 |
1640*915*1430 |
1560*860*1645 |
1910*1060*2100 |
2060*1160*2230 |
|
Compressor model/ quantity |
|
ZW30KAE*1 |
ZW34KAE*1 |
ZW61KAE*2 |
ZR72KCE*2 |
ZW61KAE*2 |
ZR72KCE*2 |
ZR81KCE*2 |
ZW108KAE*2 |
VR144KSE*2 |
