More Popular 500watt Modified Sine Wave Inverter with UPS

More Popular 500watt Modified Sine Wave Inverter with UPS
Price: US $ 26.67/Piece
Trade Terms: FOB,EXW
Min Order: 10/Piece
Pay Type: T/T,Western Union,Money Gram
Prod Model: DXP500WCH
Markets: North America,South America,Eastern Europe,Africa,Western Europe
Model No: More Popular 4000watt Modified Sine Wave Inverter
Max Continuous Power: 500W
Peak Load Power Rate: 1000W
Efficiency: > 90%
Frequency: 50Hz or 60Hz
Machine Size(Mm): 310*155*55mm
Nw: 1079g
Voltagerange: 10-15VDC or 21-30VDC or 42-60VDC or 92-132VDC
Warranty: 1 Year
Max Outer Temperature: <65c
Power Source: Electric Power
Type: DC/AC Inverters
Phase: Single
Output Power: 401 - 500W
Brand: Doxin

Product Description

More popular 500Watt Modified sine wave inverter with UPS

Product Specifiation:

1. Output waveform: Modified sine wave
2. High efficiency: 90%
3.12V DC input
4.220V-240V AC output
5. Output frequency: 50Hz
6. Max Continuous output power: 500w
7. Peak power: 1000W
8. High-velocity cooling fan
9. Overload protect, over voltage protect
10. Low voltage cut-out, low voltage alarm

Feature:

1) It is featured as high reliability, and low failure rate, with the advanced double
CPU SCM intelligent controlling technology.

2) Pure sine wave output, strong ability of driving load, wide range of application

3) Perfect protection functions (Overload protection, inside overheat protection, output short circuit protection, input low-voltage protection, input overvoltage protection), enhanced the reliability of the product.

4) Small and light: With the technology of CPU centralized control and SMD inside, the product is very small and light.

5) Intelligent control of cooling fan: Using CPU to control the working status of the cooling fans extends the service life of the cooling fans, saves the power and improves the working efficiency.

6) Low noise but high efficiency while working.

Protection:

Over-heat protection
Over-voltage protection
Low-voltage protection
Over-load protection
Over-current protection

Applicable for:

--Solar electric energy generation;
--Wind power generation;
--Communication equipment;
--Industrial intellectual control system;
--Small sized emergency power supply system;
--Travel set equipment, industrial equipment, office equipment, kitchen equipment, household electrical equipment, power tools and so on;

Payment and Shipping:

1. We accept T/T, Money Gram, Western Union;
2. For sample, it's better via Money Gram or Western Union; For quantity order, we can go for T/T;
3. For small order, we usually transport by express like FedEx, DHL, TNT, EMS.
For big order, we can ship by air or by sea

Our Service:

1. The good construction warranty-2years
2. Your client satisfied on the right schedule and quality
3. You can get a good reputation from your market and obtain more orders
4. Our professional service before and after sale
5. The reasonable price
6. Any query from you are welcome and will be replied within 24hurs.

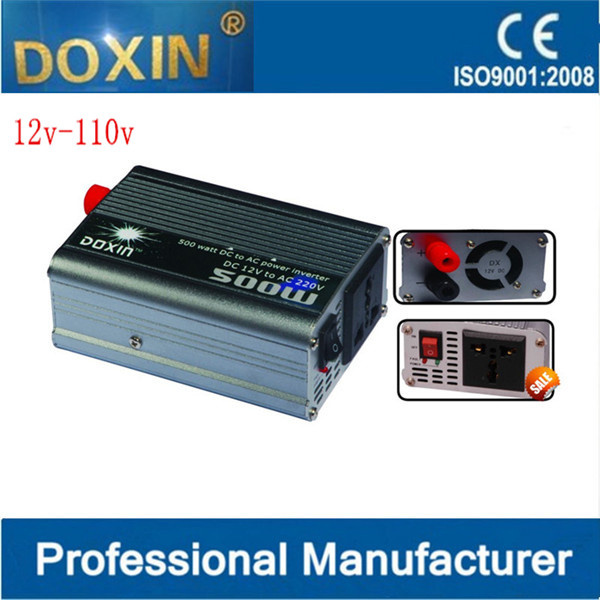

Product Picture:


Relative product:



FAQ:

1. What is Inverter?

Inverter is an electronic equipment that turn DC12V/ 24V/ 48V into AC110V/ 220V/ 230V/ 240V.

2. How many kinds of output wave form for Inverters?

Pure sine wave Inverter: It could provides high quality AC and carry various loads, While it requires high tech and high cost.

Modified sine wave Inverter: It can load poorly not carrying inductive load, but the price is moderate.

3. How to choose a power inverter?

Mose of the electronic products are signed out their rated power, and the rated power should be less than the rated power of the power inverter.

The method of how to estimate the power(W): The total of load power should be equal to the rated power(W) of the power inverter.

You can choose inverter in this way.

4. What the difference between a pure sine wave inverter and a modified sine wave inverter?

Pure sine wave AC is what comes from the sockets in your house. It is the best form and will run all types of equipment properly. Modified sine wave units are cheaper to produce and will run most appliances but not as efficiently. Devices that run best from pure sine wave are anything with AC motors such as fridges, washing machines, also radios and microwaves. Modified sine wave inverters will run computers, games consoles, TV's, power tools and lighting just fine.


DXP500WCH
InputVoltageDC12V
 Voltage Range11-15V
 No load Current Draw<3A
 EfficiencyAverage 90% max 95%
 ConnectorCables with connector
OutputAC VoltageAC110/220V
 Continuous Power500w
 Surge Power3000W
 WaveformModified sine wave
 Frequency50Hz or 60Hz
ProtectionLow Voltage AlarmYES 10.2-10.8V
 Low Voltage ProtectionYES 9.2-9.8V
 Over Load ProtectionYES (120%-130% )
 Over Voltage ProtectionYES 15-15V
 Thermal ProtectionYES, ( shutdown )
 Short circuit protectionYES, ( shutdown )
EnvironmentWorking Temperature-5 °  C ~ +40 °  C
 Working Humidity10%-90%
 Storage Temperature-20 °  C ~ +50 °  C
 Storage Humidity5%-95% RH
PackageDimension( L*W*H )260*150*90 (mm)
 Net Weight1.1kg
 Gross Weight2.8Kg
 Qty/CTN1pc/CTN
 CoolingCooling Fan
 Total Harmonic DistortionTHD<3%
 CertificationCE

Guangzhou Doxin Electronic Factory is a manufacturer specialized in automobile electronic products. Currently, we mainly produce Car Power Inverter, Solar charge controller, Battery charger, transformer, Power adapter, Mobile phone charger, car emblem badge, wheel center cap, tire valve cap, car wheel sticker, car logo keychain which was established at the beginning of 1998.

We utilize advanced encrypting technologies, full automatic production line, Multi function testing. With features of "high efficiency, detection function, intelligent and environmental protection and energy saving", Products meet EU RoHS Green Directives, and wildly used in Car, Home furnishing, Outdoor, Travel, Patrol, Fieldwork ect.

Our production base with the perfect size was built and the base passed ISO9001: 2000 quality system certification, CE certification, RoHS certification, LVD certification, ETL certification and E-MARK. Modern factories, outstanding management and advanced technology become the best guarantee of product quality. Our products are selling well in our country, Europe, the United States, Middle East, Southeast Asia and other area with unique and innovative design, low interference technology, high performance-price ratio, the best technology and excellent quality. With over 10 years of R & D and production experience, OEM service. Our company has become one of the famous power inverter manufacturers in China.

Our Company continued to expand into international markets, at the same time, efforts to develop the domestic market, "DOXIN" products have caused widespread concern in the industry through the domestic marketing system, such as dealer network, OEM market. Car owners comprehensive experience to DOXIN forefront automotive technology products, which bring them convenience and happiness, once again demonstrates the strength and determination of the Guangzhou DOXIN electronic factory.

Adhering to the business principle of "Achieve Mutual Benefits from Good Cooperation", our employees are looking forward to establishing business relationships with clients both in the domestic and the overseas markets.
