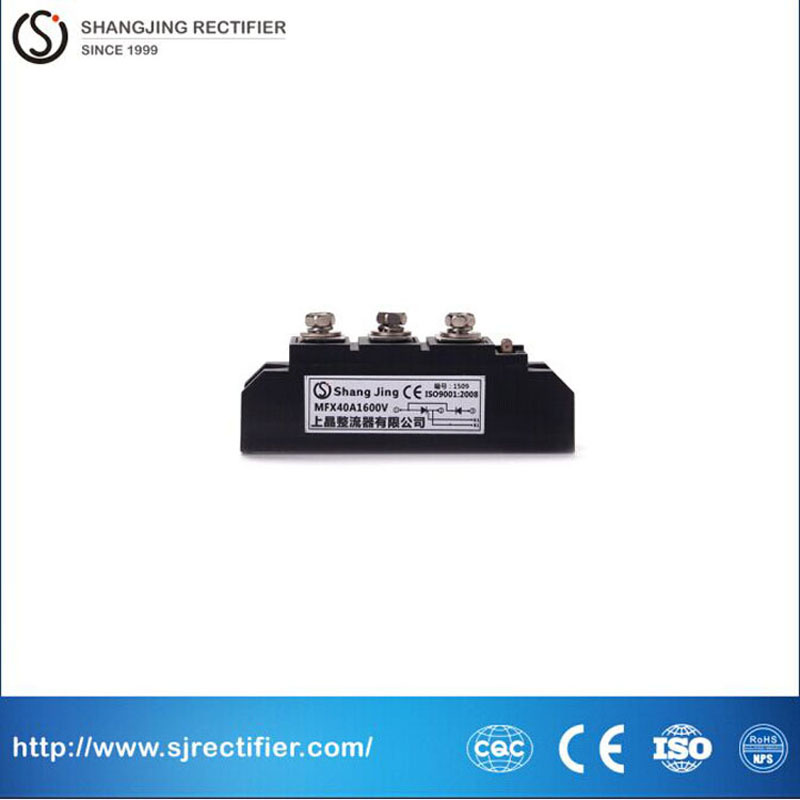

Motor Soft Start One Unit Thyristor Module

Name: Motor Soft Start One Unit Thyristor Module
Brand: all-electronics-online.com
SKU: 663871521
Availability: InStock
Rating: 4.4 (57 reviews)

Price:	US $ 3-59/Piece
Trade Terms:	FOB
Min Order:	3/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MT50A-400A 400-2600V
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Vrrm/Vdrm:	400-2600V
Irrm/Idrm:	8-40mA
Vtm:	1.44-1.5V
It(AV):	50-400A
Manufacturing Technology:	Discrete Device
Material:	Element Semiconductor
Type:	Intrinsic Semiconductor
Package:	Standard Export Packing
Application:	AC DC Motor Control, UPS Power Supply
Model:	Mt50A-400A 400-2600V
Batch Number:	2016+
Brand:	Shangjing

Product Description

Features
Electrical insulated for chip and base
International standard packaging
Excellent temperature characteristic and power cycling performance
Water-cooling type available for over 400A modules
Easy to install and maintain
Small and light

Typical Applications
AC DC motor control
Motor soft start
Industry heat-up control
Various rectification power supply
Welder
Diming
Contactless switch
Frequency transformer
UPS power supply
Battery charge & discharge

Type	IT(AV)	VDRM VRRM	VTM@ITM		IDRM IRRM	IGT	VGT	IH	dv/dt	di/dt	ITSM	Rjc	Tjm	Viso	Outline
Type	A	V	V	A	mA	mA	V	mA	V/μ s	A/μ s	kA	° C/W	° C	V(AC)	Outline
MT50A	50	400-2600	1.50	170	8	100	2.5	100	800	50	1.25	0.530	125	2500	M26
MT100A	100	400-2600	1.94	270	15	100	2.5	100	800	100	2.00	0.280	125	2500	M26
MT150A	150	400-2600	1.90	480	25	150	2.5	100	800	100	5.40	0.170	125	2500	M27
MT200A	200	400-2600	1.90	600	30	180	2.5	100	800	100	7.20	0.140	125	2500	M28
MT250A	250	400-2600	1.73	750	30	180	2.5	100	800	100	8.50	0.120	125	2500	M28
MT300A	300	400-2600	1.58	900	40	180	2.5	100	800	100	9.30	0.100	125	2500	M28
MT350A	350	400-2600	1.45	1050	40	180	2.5	100	800	100	11.0	0.090	125	2500	M29
MT400A	400	400-2600	1.44	1200	40	200	3.0	100	800	100	14.0	0.080	125	2500	M29

China Shangjing Rectifier Co., Ltd. Was co-founded by China DELIXI Group, Shanghai Rectifier Co., Ltd. And Jingtai Electric Co., Ltd. In 1999. As one of the most professional manufacturers of power semiconductors and silicon rectifying whole set equipments, as well as the manufacturer for timer switch ( programmable timer switch, digital timer switch mechanical timer switch ) and circuit breaker ( mini circuit breaker, DPN miniatire circuit breaker, DPNL residual current circuit breaker etc) our company has been devoted to provide the high quality electronicsr products for our customers all over the world.

Shangjing Rectifier Co., Ltd. is located in Liushi Town which is well known as the "Capital of Electric City" in China. We are very close to the Wenzhou Airport and the deep-water sea port, which makes it very easy for us to reach our customers from the whole world.

Our company has been certified by China Industrial Department and we have got CE certificate. Furthermore, our products are compliant to the latest RoHS directions.

We have brought advanced technologies and equipment from abroad and kept improving our management and products quality. We stick the spirit of "Chasing for high quality and Servicing our clients with all our heart and credibility", we have gained a lot of honors like "AAA class China quality & credibility company", "member of China Electric Industry Association", etc. We have been exporting our products to Europe, South and North America, Middle East, Africa and earned a lot of good feedback.

We hope our high quality products and service will be bringing successful future to all our customers.
