Motor with Germany Technology for Automated Sliding Door

Name: Motor with Germany Technology for Automated Sliding Door
Brand: all-electronics-online.com
SKU: 688560082
Availability: InStock
Rating: 4.7 (115 reviews)

Price:	US $ 100/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	PAD2101
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	DC24V
Rated Speed:	3000r/Min
Power:	60W , 80W,
Gear Ratio:	115
Rated Current:	4A
Max Torque:	3.8n.M
Short-Time Output Torque:	0.255n.M
Output Speed :	200r/Min
Rated Torque :	0.19n.M
Application:	Household Appliances
Operating Speed:	Adjust Speed
Structure And Working Principle:	Brushless
Certification:	Ce
Brand:	Pad

Product Description

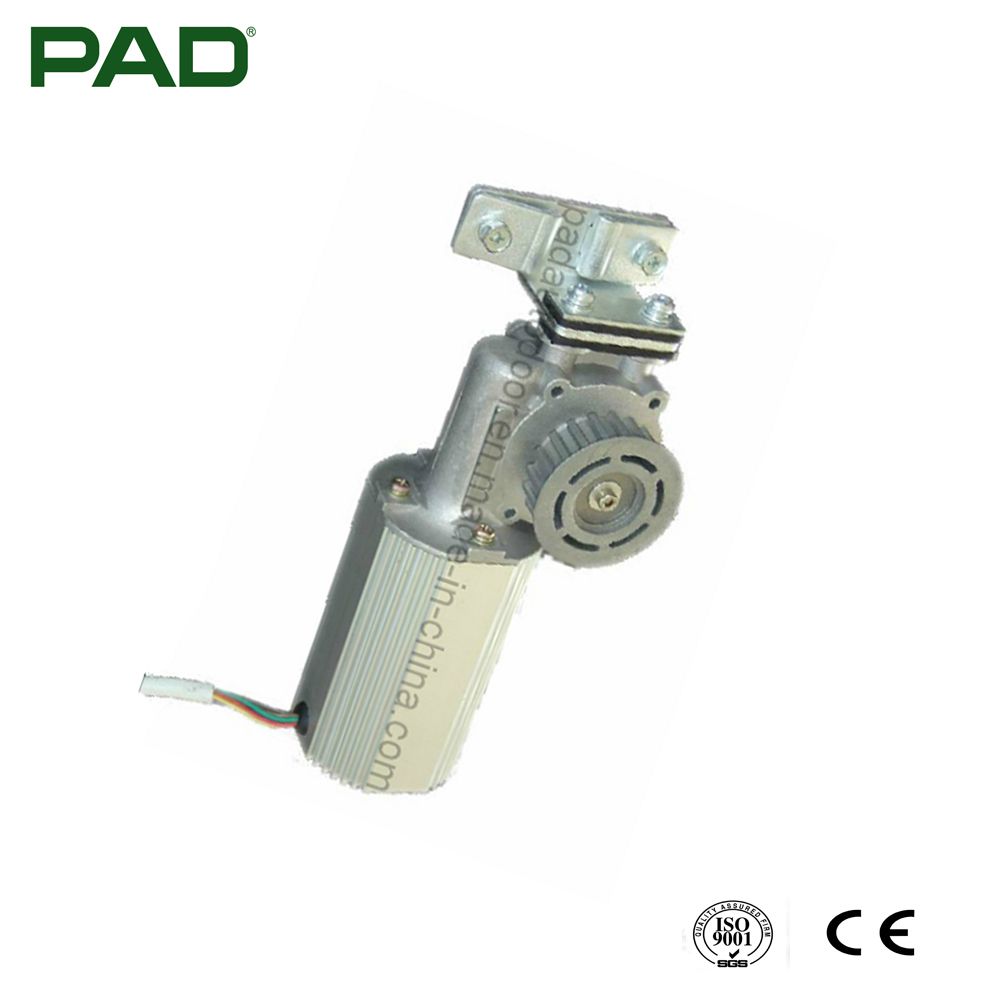

PAD2101 Motor for automatic sliding door

Specifications

motor de corriente continua sin escobillas instalado en la puerta automatica permite un funcionamiento continuo, aunque sean mil

automatic door parts

Rated voltage DC24v

Rated power rating 60W

Rated speed 3000r/min

Rated torque 0.19n.m

Rated current 4A

Gear ratio 115

Short-time output power 80W

Short-time overload current: 5A

Short-time output torque: 0.255n.m

Output speed 200r/min

Output torque 2.8n.m

Max torque 3.8n.m

The advanced brushless AC motor supported by intelligent Honeywell software can self-learn the stroke.

Advanced brushless AC motor and the worm-reduction gear are integrated together, with advantageous features such as higher efficiency, larger torque and longer life span.

The motor noise is extremely low because of its precise manufacturing technology and direct driving design.

The motor can lock automatically if there is no triggering signal. The powerful closing force keeps the door shut fast

Shanghai PAD Automatic Doors Technology Co., Ltd. is a company (manufacturer) established in 2003, located near the Hongqiao airport, Shanghai, China.
With CE and ISO9001: 2000 certificates, the company integrates Italian automatic technology and Chinese manufacturing advantages, which enables our products to have reliable quality and competitive prices.

Today PAD products are widely adopted in 89 countries or regions around the world, and more and more customers are joining us. For someof them we provide OEM service, and for some more we deliver the goods with PAD as our common brand.

Our main products include:
A. Automatic sliding door operator
B. Automatic revolving door systems.
C. Automatic roller motors.
D. Accesories for autoamtic door industry.

Our products are mainly used in restaurants, hotels, clubs, government buildings, offices, factories, shops, residential areas, military zones, etc.

As the society develops, our products are also progressing with the times. Sincerely hope we can provide our services for more cusotmers around the world.

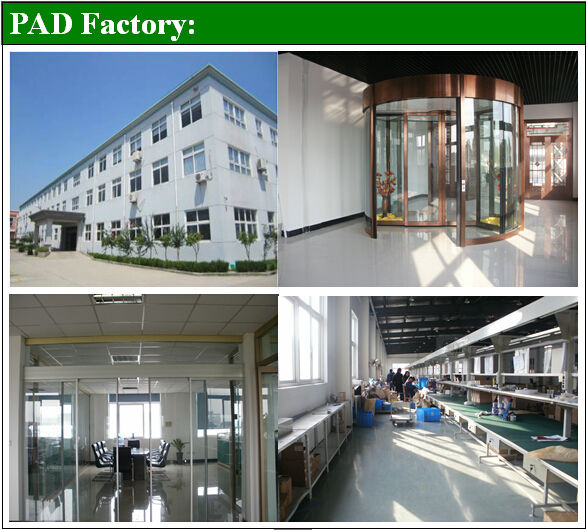

Welcome you to have a visit to our factory!
