Moulded Case Circuit Breaker (ABE103bM) Electrical MCCB Ce Certifiation Economic Type High Quality
| Price: |
US $ 5.6/Piece |
| Trade Terms: |
FOB |
| Min Order: |
100/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
CEM21(ABE 102b/103b MCCB) |
| Markets: |
Southeast Asia,Africa,Mid East,Eastern Asia |
| Type: Auto-Recovery Mode/ Nomal Code: |
Installation: DIN-Rail and Screw |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Structure: |
MCCB |
| Poles Number: |
3 |
| Certification: |
CCC |
Product Description

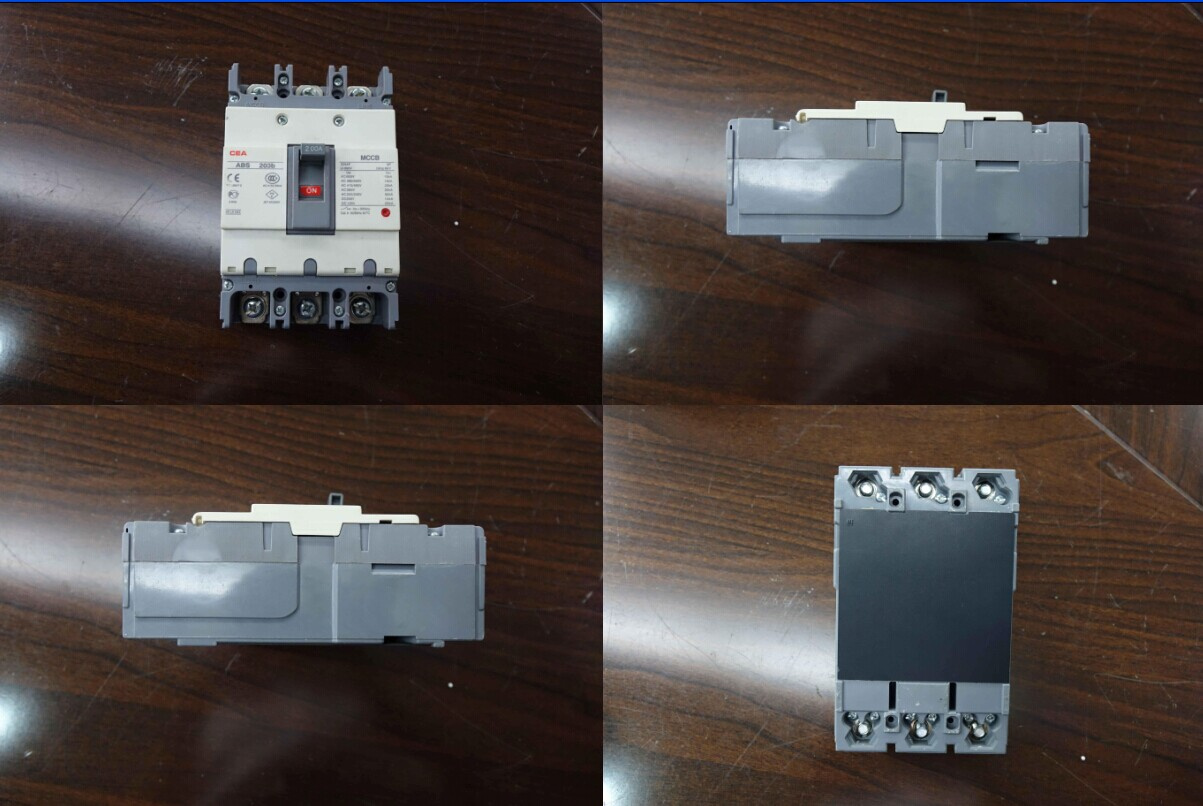

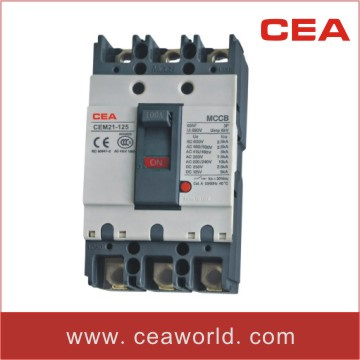

MEC ABE 102/103/203bM/403/603 MCCB
CEM21 Series moulded case circuit breaker is suitable for industrial or commercial power and lighting with AC 50/60 Hz, rated working voltage up to AC600V/DC250V, rated current up to 1200A, it's a kind of economical breaker with the characteristics of stable and reliable function, beautiful appearance, small size and long life. It can be used for conversion of line and infrequent starting motor. It can also be attached to install the accessories which have protection function for avoiding loss-voltage, under voltage. The product can install connection line with front board and back board, it can also be equipped with hand-operating apparatus or motor-operating apparatus to control in a remote distance!
Feature
Poles : 1 Pole / 2Pole / 3 Pole / 4 Pole
Rated Current : 10A, 20A,32A,40A,60A,100A,125A,160A,200A,250A,300A,400A,630A
Type : ABE/ABS
Brand : CEA or OEM
Hot Area : Mid-east and Asia Area,like Dubai, Pakistan, India, UAE.
| Type | Rated Current(A) | Poles | Rated Voltage(V) | Rated ultimate breaking capacity AC VOLTAGE | | | | DC VOLTAGE |
| AC | DC | 550V | 440V | 415V | 380V | 240V | 250V |
| CEM21E-30 | 10,15,20,30 | 2P,3P | 600 | 250 | 2.5 | 2.5 | 5 | 5 | 10 | 2.5/5 |
| CEM21S-30 | 3,5,10,15,20,30 | 2P,3P | 600 | 250 | 2.5 | 7.5 | 10 | 14 | 25 | 5/10 |
| CEM21E-50 | 3,5,10,15,20,30,40,50 | 2P,3P | 600 | 250 | 2.5 | 5 | 5 | 7.5 | 10 | 2.5/10 |
| CEM21S-50 | 10,15,20,30,40,50 | 2P,3P | 600 | 250 | 5/7.5 | 7.5/10 | 10 | 14/18 | 25/35 | 5/10 |
| CEM21-60 | 60, | 2P,3P | 600 | 250 | 2.5 | 2.5 | 5 | 5 | 10 | 5/10 |
| CEM21S-60 | 60 | 2P,3P | 600 | 250 | 5 | 18 | 25 | 25 | 35 | 5/10 |
| CEM21E-100 | 15,20,30,40,50,60,75,100 | 2P,3P | 600 | 250 | 5 | 7.5 | 10 | 14 | 25 | 5/10 |
| CEM21S-100 | 10,15,20,30,40,50,60,75,100 | 3P | 600 | 250 | 10 | 14 | 14 | 25 | 50 | 20 |
| CEM21E-225 | 125,150,175,200,225 | 3P | 600 | 250 | 7.5 | 10 | 10 | 18 | 35 | 10 |
| CEM21S-225 | 125,150,175,200,225 | 3P | 600 | 250 | 10 | 14 | 25 | 25 | 50 | 20 |
| CEM21E-400 | 250,300,350,400 | 3P | 600 | 250 | 18 | 18 | 25 | 25 | 35 | 10 |
| CEM21S-400 | 250,300,350,400 | 3P | 600 | 250 | 22 | 25 | 35 | 35 | 50 | 20 |

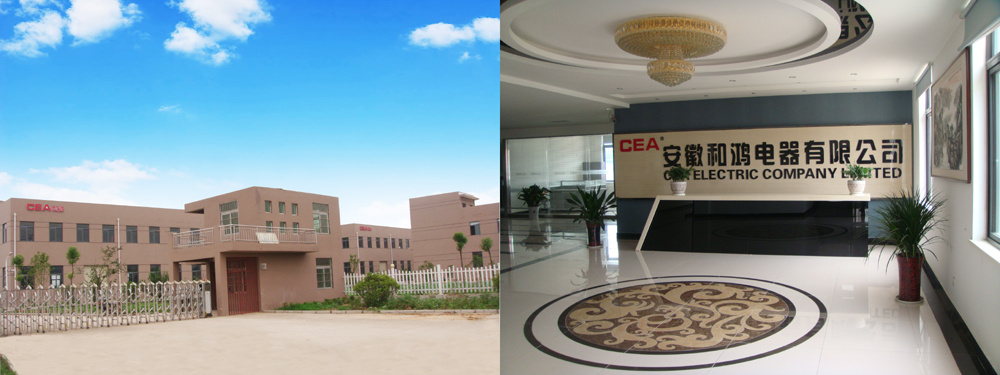

Founded in 1999, CEA Group International Co., Ltd.Is being acknowledged as one of the most respected nationwide manufacturers and exporters of low voltage electrical apparatus in P.R of China.
The Group, comprising 5 factories, owns a production area of 50, 000m2 and employs more than 1, 000 staff.During the past 13 years, we invested abundant resources in both research and development and employee training programs.The company was ranked in the front of 100 tops of wenzhou private enterprises." CEA" is named as a famous trademark in domestic and overseas markets.Our company has took the lead in applying IS09001 Quality Management System and ISO14001 Environmenttal Management System.Many products are certified under international certificate, such as CB, CE, BS, VDE, UL, SONCAP, CCC.
Currently, we have manufactured and exported more than 160 varieties of products, with over 2000 types of low voltage electrical apparatus including all kinds of LED lighting, Circuit Breakers, Contactors, Relays, Starters, Switches, , Wire & Cable and Electrical Accessories etc.As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching South East Asia, Middle East, South America, Africa, Europe.
We are fully aware of the fact that only "Versatile Staff, Distinctive Quality and Advanced Technology"enable us to survive and succeed in today's intensively competitive market.Hence, we will be with overall technology support, good service to meet the requirements of world.
Enquiries from both domestic and overseas customers are cordially welcomed.Just Tell Us Your Requirements and Let Us Do The Rest For You!
