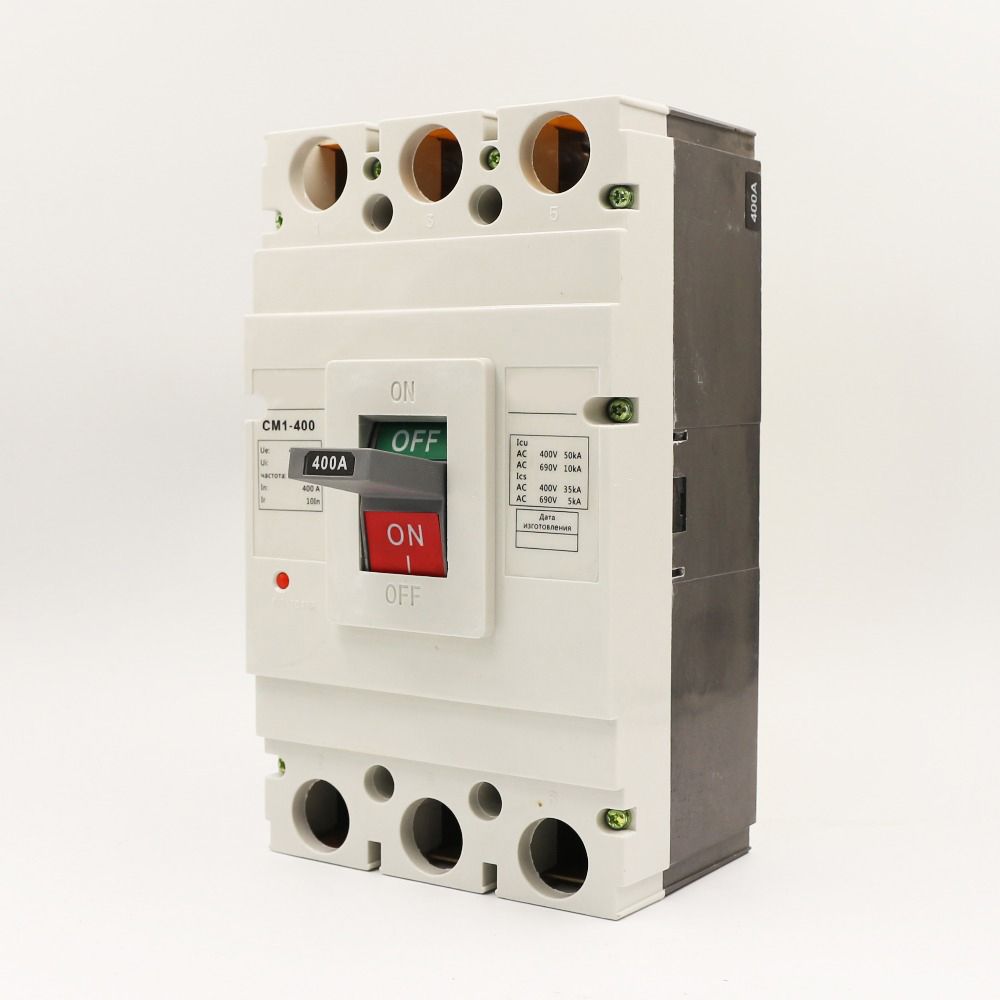

Moulded Case Circuit Breaker (CM1-400)

Name: Moulded Case Circuit Breaker (CM1-400)
Brand: all-electronics-online.com
SKU: 690402051
Availability: InStock
Rating: 4.8 (57 reviews)

Price:	US $ 10-300/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CM1-400
Frequency:	AC 50Hz (60Hz)
Specification:	100~1250
Rated Working Current:	12.5 to 1250A
Rated Working Voltage:	690V
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCCB
Certification:	CCC
Poles Number:	3p 4p

Product Description

CM1 Circuit Breaker:

Detailed Product Description

CM1 Circuit breaker 100A-1600A
1. The best quality
2. The price that has competitiveness
3. CE ISO9000 authenticatio

CM1 100A-1600A, (CM1-3P/4P)

Product Description
1)CM1 series molded case circuit breaker is a new type of breaker which adopts the international advanced design, and manufacturing technology
2) Its contact and arc suppression system adopt revolving double cot-off point design so as to improve breaking capability
3) Its tripper has thermo magnetic trip and electric trip
4) Rated insulating voltage: 950V
5) Frequency: AC 50Hz (60Hz)
6) Rated working voltage: 690V or below
7) Rated working current: 12.5 to 1250A
8) Used in distributing energy of electricity, infrequent making and breaking in the normal conditions and protecting when circuit and installation are overload, short circuit and lacking voltage

Rated current of release(A)	Thermodynamic release(ambient temp+40)		Operational current of magnetic release(A)
Rated current of release(A)	1.05In(cold state) inoperative time(h)	1.30In(heat state) inoperative time(h)	Operational current of magnetic release(A)
In≤ 63	≥ 1	< 1	10In± 20%
63< In≤ 100	≥ 2	< 2	10In± 20%
100< In≤ 630	≥ 2	< 2	5-10In± 20%

Rated current of release(A)	Thermodynamic release(ambient temp+40)				Operational current of magnetic release(A)
Rated current of release(A)	1.0In(cold state) inoperative time	1.2In(heat state) inoperative time	1.50In(heat state) inoperative time	7.2In(heat state) inoperative time	Operational current of magnetic release(A)
12.5≤ In≤ 400	≥ 2h	< 2h	≤ 4min	2S< Tp≤ 10S	12In± 20%
