Ns Moulded Case Circuit Breaker(MCCB) |
Rated Current: |
100 ~1600A |
Grade Quality: |
A Grade |
Warranty Time: |
2 Years |
Service: |
OEM and ODM Service |
Delivery Time: |
2 Weeks |
Breaking Capacity: |
Low Voltage Circuit Breakers |
Operation: |
Manual Type |
Speed: |
High-Speed Circuit Breaker |
Arc-extinguishing Medium: |
Air |
Installation: |
Fixed |
Structure: |
MCCB |
Certification: |
CCC |
Poles Number: |
2p ,3p ,4p |
Product Description

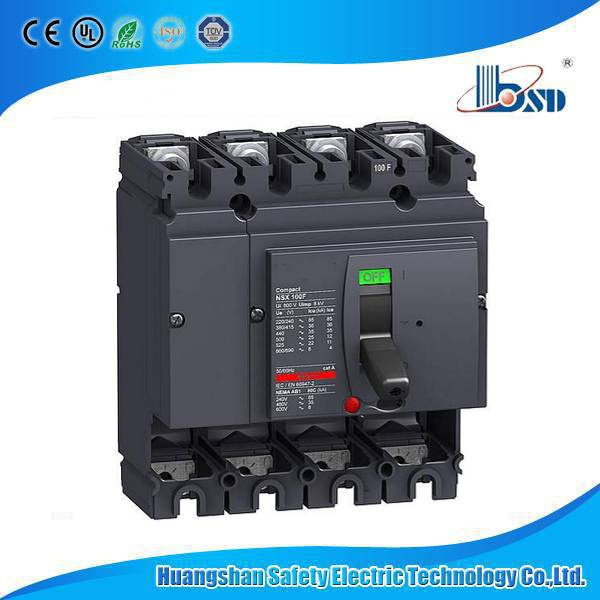

NS series CE MCCB
NS series moulded case circuit breaker/mccb is one of the most advanced type breakers in the world, which adopt international advanced design and manufacture fechnology. They are suitable for short circuit and overload protection for circuit of AC 690V 50/60Hz, rated current from 12.5A to 630A. It takes protect effect when mouse cage motors non-frequent start, breaking off working and protecting overload, short circuit and lacking voltage.
Tripping Characteristics of MCCB
Rated Current of Release(A) Thermodynamic Release (ambient temp +40C) Operational Current of Magnetic Release(A)
1.05In(cold state) inoperative time(h) 1.30In(heat state) operative time(h)
In≤ 63 ≥ 1 <1 10In+20%
63 ≥ 2 <2 10In +20%
100 ≥ 2 <2 5-10In+20%
Rated Current of Release(A) Thermodynamic Release (ambient temp +40C) Operational Current of
Magnetic
Release(A)
1.0In(cold state)operative time(h) 1.20In(heat state)operative time(h) 1.50In(heat state)operative time(h) 1.01In(heat state)operative time(h)
12.5≤ In≤ 400 ≥ 2 <2 ≤ 4min S 12In+20%
Main Technical Specifications
Type Rated Current (A) Poles Rated Insulating Voltage(A) Rated Operating Voltage (A) Acting Over Distance (mm) Ultimate short circuit Breaker Capacity Servies Short Circuit Breaker Capacity Operating performance(times)
Rated current of release(A) | Thermodynamic release(ambient temp+40 ) | Operation current of magnetic release(A) |
1.05ln(cold state) inoperative time(h) | 1.30ln(heat state) inoperative time(h) |
ln 63 | 1 | 1 | 10ln 20% |
63 ln 100 | 2 | 2 | 10ln 20% |
100 ln 630 | 2 | 2 | 5-10ln 20% |
Rated current of release(A) | Thermodynamic release(ambient temp+40 ) | Operation current of magnetic release(A) |
1.0ln(cold state) inoperative time(h) | 1.20ln(heat state) inoperative time(h) | 1.50ln(heat state) inoperative time(h) | 1.0ln(heat state) inoperative time(h) |
12.5 ln 400 | 2 | 2 | 4min | 2S Tp 10S | 12ln 20% |
Specifications:
Type | Rated current(A) | Pole No. | Rated insulating voltage (V) | Rated operating voltage | Arcing over distance (mm) | Ultimate short circuit breaking capacity(kA) | Services short circuit breaking capacity(kA) | Operation performance (Endurance) |
ON | OFF |
NS-100D | 12.5, 16, 20, 25, 32, 40, 50, 63, 80, 100 | 3 4 | 950 | 690 | 0 | 18 | 18 | 1500 | 8500 |
NS-100N | 25 | 25 |
NS-100H | 70 | 70 |
NS-100L | 150 | 150 |
NS-160D | 16, 20, 25, 32, 40, 50, 63, 80, 100, 125, 160 | 25 | 25 | 1000 | 7000 |
NS-160N | 36 | 36 |
NS-160H | 70 | 70 |
NS-160L | 150 | 150 |
NS-250D | 160, 180, 200, 225, 250 | 25 | 25 | 1000 | 7000 |
NS-250N | 36 | 36 |
NS-250H | 70 | 70 |
NS-250L | 150 | 150 |
NS-400D | 200, 225, 250, 300, 315, 400 | 35 | 35 | 1000 | 4000 |
NS-400N | 15 | 45 |
NS-400H | 70 | 70 |
NS-400L | 150 | 150 |
NS-630D | 315, 350, 400, 500, 600, 630 | 35 | 35 | 1000 | 4000 |
NS-630N | 45 | 45 |
NS-630H | 70 | 70 |
NS-630L | 150 | 150 |
Huangshan Safety Electric Technology Co., Ltd., is located in the Huangshan city, which is one of the leading manufacturer and exporter in the field of low voltage electric appliance in China,
We produce circuit breaker (MCB, ELCB, RCCB, RCBO, MCCB),
AC capacitor (low voltage power capacitor, motor run and starting capacitors, lighting capacitors, )
Pushbutton, switches, contactor, indication lamps, distribution box, etc series products, at present, we have more 200 workers and with about 20000 square meters building workshop for the production line,
We have gotten the ISO9001, CCC, , CE, TUV, UL certificate. We produce top quality all along and meet customers' quality requirement,
We have the development department by ourselves, we can offer OEM, ODM service and develop new products every year.
We promise to offer you superior products, favorable price, and timely delivery.
If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
