| Prod Model: |
CEM1-225L |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: Auto-Recovery Mode/ Nomal Code: |
Installation: DIN-Rail and Screw |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Certification: |
CCC |
| Structure: |
Moulded Case Circuit Breaker |
Product Description

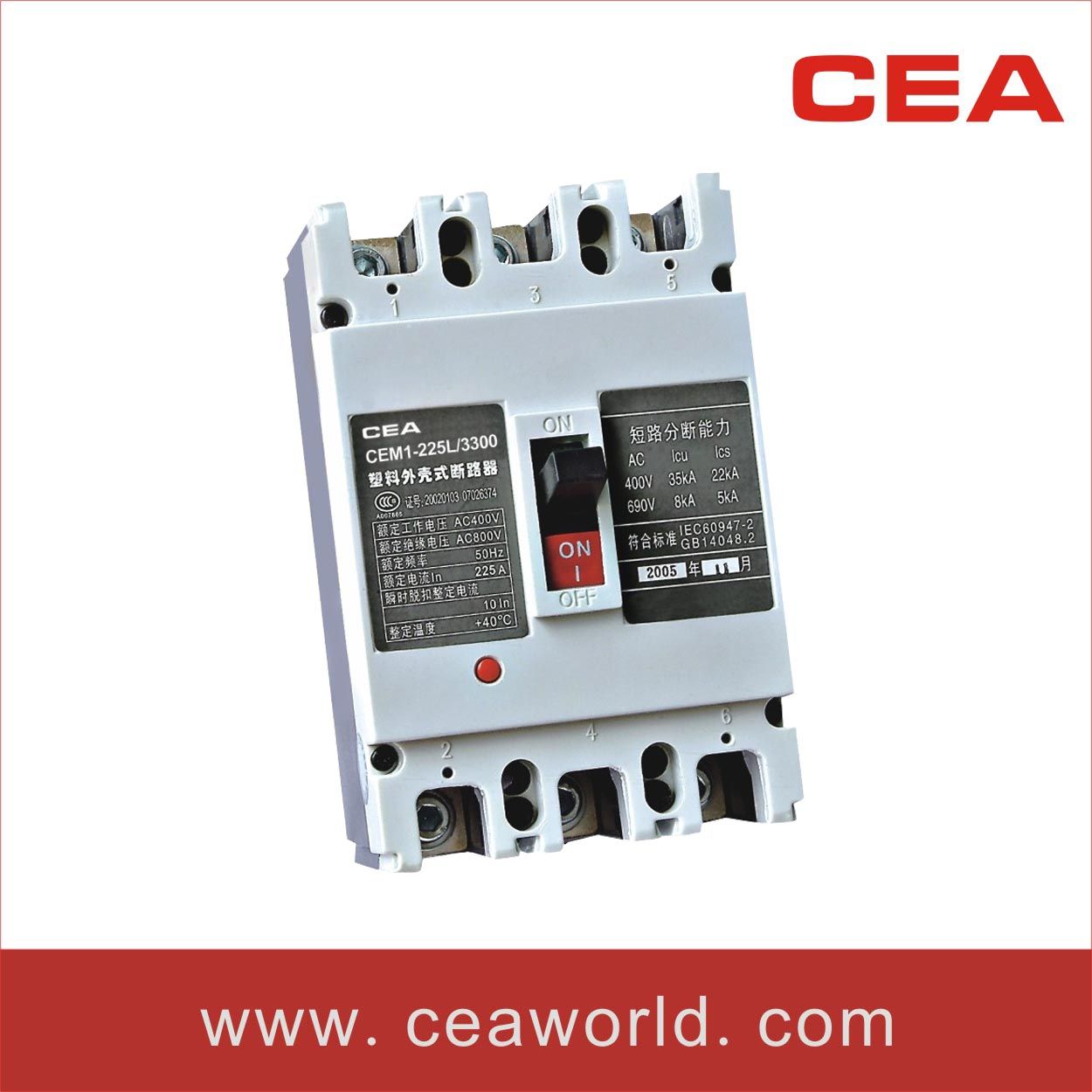

CEM1 Moulded case circuit breaker:1. Product Description
1) Name: Moulded case circuit breaker (MCCB)
2) Frequency: AC 50Hz/60Hz)
3) Rated insulation voltage: 600V
4) Rated operating voltage under AC 690V or less
5) Rated operating current: 10A-1250A
6) Pole number: 3 poles, 4 poles
7) Breaking capacity code:
L: Standard type
M: Higher breaking type
H: High breaking type
8) The various suitable accessories can be supplied separately or fit together according to client request.
9) It is for distribute power and non-frequent turn on/off circuit in normal conditions.
10) Provided with the function of the protection against overload, short circuit and under voltage.
11) These products comply to IEC 60947-2, 60947-4 standards.
12) Packing: Standard export carton
Series moulded case circuit breaker (hereinafter referred to as circuit breaker) is suitable
For distribution network
CEM1 series moulded case circuit breaker (hereinafter referred to as circuit breaker) is suitable For distribution network of AC50Hz, rated working voltage 690V (CEM1-63 is 500V) and below, rated Current 1250A and below, used to distribute the electric energy and protect the circuitry and power unit Against overload, under-voltage or short-circuit. Circuit breakers whose frame size is 400A below also Can be used to protect the motor against overload, under-voltage of short-circuit. In addition, it can be Used to switch the circuitry and start the motor infrequently.
The products comply with IEC6094-2, they can be vertically installed or horizontally installed
| type | rated current(A) | No. of poles | rated insulation voltage(V) | rated operating voltage(V) | Arcing-over Distance(mm) | Ultimate short circuit breaking capacity(KA) | Service short circuit breaking capacity(KA) | operation performance
ON OFF |
| CEM1-63L | 6.10.16.20.25.32.40.50.63 | 3P. 4P | 600V | 380V | 0 | 25 | 18 | 1500 8500 |
| CEM1-63M | 6.10.16.20.25.32.40.50.63 | 3P. 4P | 600V | 380V | 0 | 50 | 35 | 1500 8500 |
| CEM1-100C | 10.16.20.25.32.40.50.63.80.100 | 3P. 4P | 600V | 380V | 0 | 25 | 18 | 1500 8500 |
| CEM1-100L | 10.16.20.25.32.40.50.63.80.100 | 3P 4P | 600V | 380V | 0(0≤ 50) | 35 | 22 | 1500 8500 |
| CEM-100M | 10.16.20.25.32.40.50.63.80.100 | 3P 4P | 600V | 380V | 0(0≤ 50) | 50 | 35 | 1500 8500 |
| CEM1-100H | 10.16.20.25.32.40.50.63.80.100 | 3P 4P | 600V | 380V | 0(0≤ 50) | 85 | 50 | 1500 8500 |
| CEM1-225C | 100.125.160.180.200 | 3P 4P | 600V | 380V | 0≤ 50 | 25 | 18 | 1000 7000 |
| CEM1-225L | 100.125.160.180.200 | 3P 4P | 600V | 380V | 0≤ 50 | 35 | 22 | 1000 7000 |
| CEM1-225M | 100.125.160.180.200 | 3P 4P | 600V | 380V | 0≤ 50 | 50 | 35 | 1000 7000 |
| CEM1-225H | 100.125.160.180.200 | 3P 4P | 600V | 380V | 0≤ 50 | 85 | 50 | 1000 7000 |
| CEM1-400C | 225.250.315.350.400 | 3P 4P | 600V | 380V | 0≤ 50 | 35 | 25 | 1000 4000 |
| CEM1-400L | 225.250.315.350.400 | 3P 4P | 600V | 380V | 0≤ 50 | 50 | 35 | 1000 4000 |
| CEM1-400M | 225.250.315.350.400 | 3P 4P | 600V | 380V | 0≤ 50 | 65 | 42 | 1000 4000 |
| CEM1-630C | 400.500.630 | 3P 4P | 600V | 380V | 0≤ 100 | 35 | 25 | 1000 4000 |
| CEM1-630L | 400 500 630 | 3P 4P | 600V | 380V | 0≤ 100 | 50 | 35 | 1000 4000 |
| CEM1-630M | 400 500 630 | 3P 4P | 600V | 380V | 0≤ 100 | 65 | 42 | 1000 4000 |
| CEM1-630H | 400 500 630 | 3P 4P | 600V | 380V | 0≤ 100 | 100 | 65 | 1000 4000 |
| CEM1-800M | 630 700 800 | 3P 4P | 600V | 380V | 0≤ 100 | 65 | 42 | 1000 4000 |
| CEM1-800H | 630 700 800 | 3P 4P | 600V | 380V | 0≤ 100 | 100 | 65 | 1000 4000 |
