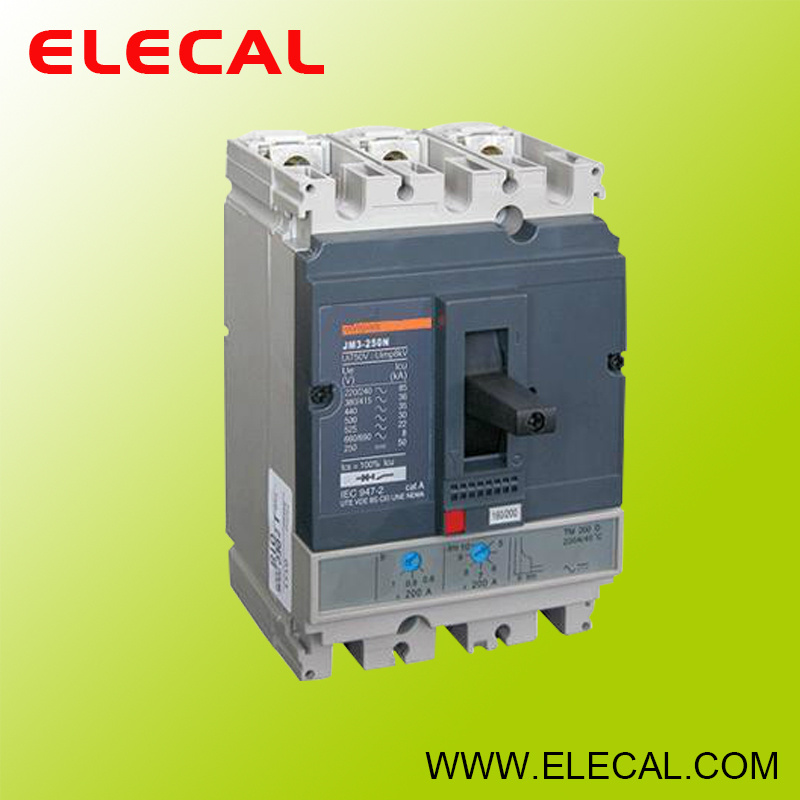

Moulded Case Circuit Breaker

Prod Model:	005
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCCB
Poles Number:	3
Certification:	CCC

Product Description

Application
SMNS Series moulded case circuit breaker is one of new type breakers which our company adopts
international advanced design, manufacture technology to develop. The rated insulating voltage is
950V. Suitable for AC 50Hz (60Hz). Rated working voltage 690V or below, rated working current is
12.5A to 630A of circuit and used in distributing electric energy. Non-frequent making and breaking
in the normal conditions and protecting when circuit and installation are overload, short circuit and
lacking voltage. Rated shell-rack and the breaker whose current is under 400A, take protection effect
when mouse cage motors non-frequent start, breaking off working and protecting from overload, short
circuit and lacking voltage. The product conforms to GB14048.2, IEC 60947-2 standards.
