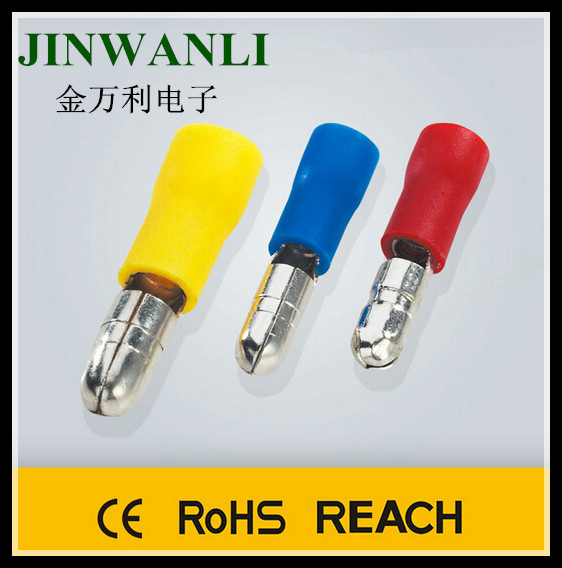

Mpd Vinyl-Insulated Male Bullet Terminal Connector

Name: Mpd Vinyl-Insulated Male Bullet Terminal Connector
Brand: all-electronics-online.com
SKU: 716553675
Availability: InStock
Rating: 4.9 (137 reviews)

Price:	US $ 0.01/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Wer Supply
Environmental Protection:	Resistance to Environmental
Shape:	Rectangle
Contact Termination Form:	Welding Connection
Brand:	Jwl

Product Description

vinyl-insulated male bullet
1.Certifications:CE,SGS,ISO9001:2008
2.material:copper or brass
3.Plating:tin
4.sleeve: pvc or nylon

Detailed Information of cable lug mpd

Type	bullet shape Terminal, TO-JTK Type (Crimp Terminal)
Material	brass
Plating	Tin
Insulation	PVC, Vinyl
Color	Red, Yellow, Blue
Working Temp	-40 to +105°C
Cable Range	A.W.G.:22-16 (0.5-1.5mm²), 16-14(1.5-2.5mm²), 12-10(4-6mm²)
MOQ	Small orders accepted
Payment Term	A.L/C,T/T (Bank Transfer, Wire Transfer)
	B.Western Union
	C.Paypal (For samples fee & Courier cost)
	Terms of Payment: FOB Shanghai / Ningbo;CIF;CNF;etc
Delivery Time	A.By Courier: 4-7 Working days by special offer
	B.By Air: 7 Working days at appointed airport
	C.By Sea: 20-25 Working days at appointed port
Supply Ability	2 x 20 feet containers per week
Packaging Details	A.Common Packing:100pcs + polybag + label + inner box+ export carton
Packaging Details	B.Customized Packing:OEM Label,Inner Box,Blister,etc
HS Code	8536900000
Origin Country	Zhejiang, China
Test Report	REACH, ROHS.

Data sheet of cable lug mpd

Conductor section:0.5-1.5mm²(A.W.G22 - 16) Imax=10A Material: Brass
JWL NO.	TYPE	THICKNESS OF MATERIAL	DIMENSION
		THICKNESS OF MATERIAL	b	F	D	H	L	Color
		mm	mm	mm	mm	mm	mm
JWL012-584	MPD 1.25-156	0.4	4.0	11.0	1.7	10.0	21.0	red

Conductor section:1.5-2.5mm²(A.W.G16 - 14) Imax=15A Material: Brass
JWL NO.	TYPE	THICKNESS OF MATERIAL	DIMENSION
		THICKNESS OF MATERIAL	b	F	D	H	L	Color
		mm	mm	mm	mm	mm	mm
JWL012-585	MPD 2-156	0.4	4.0	11.0	2.3	10.0	21.0	blue
JWL012-586	MPD 2-196	0.4	5.0	11.0	2.3	10.0	21.0	blue

Conductor section: 4-6mm²(A.W.G12 - 10) Imax=24A Material: Brass
JWL NO.	TYPE	THICKNESS OF MATERIAL	DIMENSION
		THICKNESS OF MATERIAL	b	F	D	H	L	Color
		mm	mm	mm	mm	mm	mm
JWL012-587	MPD 5-195	0.4	5.0	12.00	3.4	13.0	25.0	yellow

Our company is a key electrical accessories manufacturer of terminal blocks and other cable accessories in China.

Our company is located in Yueqing, Wenzhou City, Zhejiang Province. It is a manufacturing and export company, specialized in producing components for kinds of lights, automobile and so on. They have gone through many authentications such as CQC, CE, RoHS. The main products are terminal blocks and wires, cable ties, cable clips, cable glands and copper inserts. They have entered the mafket of most parts in the world including Europe, the Middle East and Latin America. They are of good quality and sell well in many countries.

Our company manufactures products strictly according to IEC and national GB standards, and we have established a complete and improved quality management system according with ISO9002 standard system, We guarantee the products with competitive price, high quality and timely delivery. Besides, we can supply a complete set of after-sales service to our customers and help term expand their local market share.

We welcome you to contact us for more information and we are looking forward to chances of creating a long and mutually beneficial partnership with you. We do hope to cooperate very very well and develop rapidly with our joint efforts for mutual benefits.
