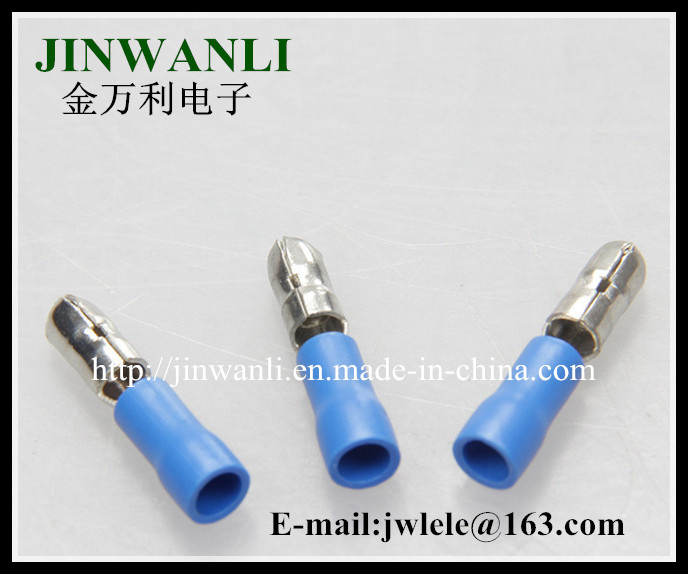

Mpd1.25-156 Bullet Shaped Male Pre-Insulating Terminal

Name: Mpd1.25-156 Bullet Shaped Male Pre-Insulating Terminal
Brand: all-electronics-online.com
SKU: 713380045
Availability: InStock
Rating: 4.6 (31 reviews)

Price:	US $ 0.011/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Single Hole Terminals
Material:	Copper
Application:	Transmission of Electrical Signals

Product Description

Specifications

BULLET SHAPED MALE Pre-Insulating Terminal

Conductor section: 0.5~1.5mm2(A. W. G 22~16)
Imax=10A/15A/24A

Material: RoHS approved copper, PP Insulation.
Finish: Tin plated

Standard: CE, RoHS, TUV, SGS, CQC
Packaging Detail: 1000PCS per polybag, each bag per paper box

Conductor section: 0.5~1.5mm2(A. W. G 22~16) Imax=10A Material: Brass
Conductor section: 1.5~2.5mm2(A. W. G 16~14) Imax=15A Material: Brass
Conductor section: 4~6mm2(A. W. G 12~10) Imax=24A Material: Brass

MPD Series Bullet Shaped Male Pre-Insulating Terminal for Cable ties Connecting Joint

Item no	Thickness of amterial	Dimension					Color	Notes
		L	F	H	Dφ	bφ
MPD 1.25-156	0.4	21.0	11.0	10.0	1.7	4.0	RED	Section of lead:0.5-1.5mm²
								USA Spec22-16
								Imax=10A
								Material:Brass

MPD 2-156	0.4	21.0	11.0	10.0	2.3	4.0	BLUE	Section of lead:1.5-2.5mm²
								USA Spec16-14
MPD 2-195	0.4	21.0	11.0	10.0	2.3	5.0		Imax=15A
								Material:Brass
MPD 5.5-195	0.4	25.0	12.0	13.0	3.4	5.0	YELLOW	Section of lead:4-6mm²
								USA Spec12-10 Imax=24A Material:Brass

Our company is a key electrical accessories manufacturer of terminal blocks and other cable accessories in China.

Our company is located in Yueqing, Wenzhou City, Zhejiang Province. It is a manufacturing and export company, specialized in producing components for kinds of lights, automobile and so on. They have gone through many authentications such as CQC, CE, RoHS. The main products are terminal blocks and wires, cable ties, cable clips, cable glands and copper inserts. They have entered the mafket of most parts in the world including Europe, the Middle East and Latin America. They are of good quality and sell well in many countries.

Our company manufactures products strictly according to IEC and national GB standards, and we have established a complete and improved quality management system according with ISO9002 standard system, We guarantee the products with competitive price, high quality and timely delivery. Besides, we can supply a complete set of after-sales service to our customers and help term expand their local market share.

We welcome you to contact us for more information and we are looking forward to chances of creating a long and mutually beneficial partnership with you. We do hope to cooperate very very well and develop rapidly with our joint efforts for mutual benefits.
