| Prod Model: |
MPO |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Sleeve: |
No Sleeve |
| Mode: |
Singlemode or Multimode |
| Wavelength: |
1310nm, 1550nm, 850nm, 1300nm |
| Fiber Core: |
0~24 |
| Number Of Cores: |
Multi-Core |
| Ferrule Endface: |
PC(',UPC) |
| Transmission Medium: |
Sm, mm |
| Structure: |
MPO |
| Connector Type: |
LC |
| Brand: |
ODM |
Product Description
With 15 years history, KOC is a well-established brand popularly accepted in the world-wide market, especially in European and American countries. We are a professional manufacturer of most passive parts such as patch-cord, connector, adapter, attenuator,splitter, WDM serious. For more detail, please check on our website www.koc.com.cn.
In case of need, please do not hesitate in contacting us.
BRIEF INTRODUCTION

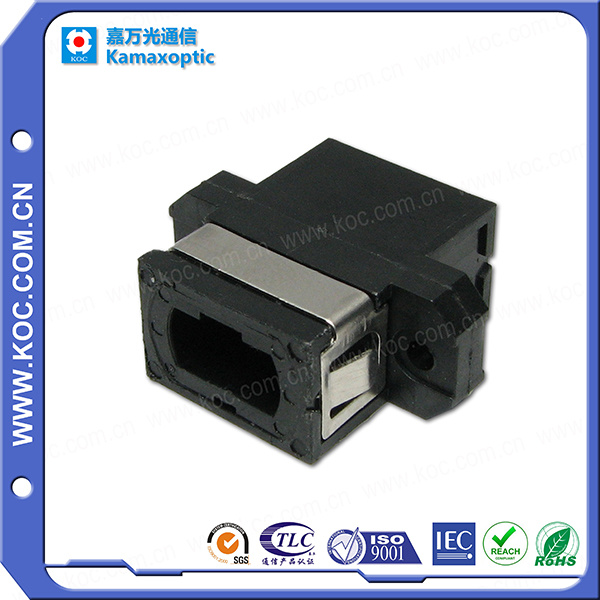

The MT-RJ and MPO are the MT series. Small size, Multi-channel is the most prominent feature, which greatly facilitates the high-density wiring. The MT series adapter have been widely applied to the CATV, Multimedia, Gigabit Ethernet, active device interface, data processing networks, telecommunication networks, asynchronous Transmission Mode (ATM). The MT series have low insertion loss and high precision guide pins exact alignment through adapter. There are two types of MT-RJ adapter, RJ-45 type and SC type, show as pictures. Either MT-RJ adapter or MPO adapter are black color and no sleeve design, single mode adapter and multimode adapter is the same.
FEATURES
Low insertion loss
Good exchangeability and durability
High temperature stability
All parts compliant with ROHS
Polytypic
APPLICATIONS
Active device termination
Test equipment
Passive optical fiber network
Data processing network
Telecommunication network
CATV, LAN, WAN
SPECIFICATIONS (MT-RJ, MPO adapter)
ITEM | PARAMETER |
| Applicative adapter type | MT-RJ, MPO |
| Adapter color | black |
| Test wavelength | 1310nm, 1550nm, 850nm, 1300nm |
| Insertion Loss | typical≤0.20dB,Max≤0.30dB |
| Fiber core | MR-RJ:2; MPO:0~24 |
| Repeatability | ≤0.10dB |
| Interchangeability | ≤0.20dB |
| Durability | ≤0.20dB Max change,500 mating |
| Sleeve material | None |
| Adapter material | Plastic |
| Operating Temperature | -20ºC to +70ºC |
| Storage Temperature | -40ºC to +85ºC |
Shenzhen KOC Communication Co., Ltd. Is specialized in fiber optic communication product manufacture. Our products range from the basic components to end products, including passive and active categories as follows: Basic Components: Connector kits, Adapter kits, Attenuator kits.
Passive products: Connector, Adapter, Attenuator, Patch-cord, ODF and enclosure.
Active products: Media converter, Transmitting and receiving assemblies, such as laser diode assembly, PD and PIN/TIA assembly, sub-assemblies such as TOSA, ROSA, BOSA.
FTTH System: Gpon: OLT, ONU, PLC
Headquarter located in Shenzhen, China, we have branch companies, representatives and distributors in Europe, America, Middle East, South Asia. KOC products are well accepted and sold in these areas.
We provide all our products with high quality, competitive price, short delivery lead time and excellent after-sales services.
