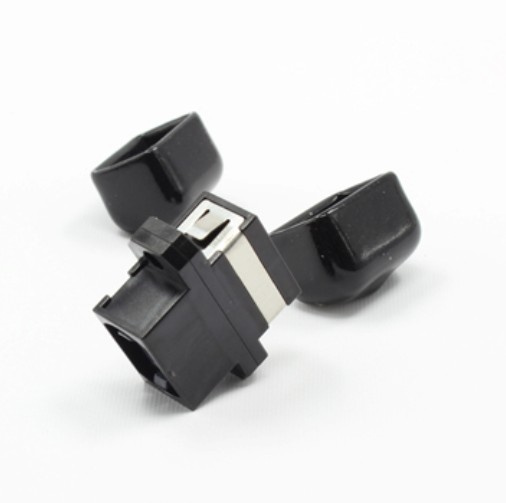

MPO MTP for Data Transmission Fiber Optic Adapter

Name: MPO MTP for Data Transmission Fiber Optic Adapter
Brand: all-electronics-online.com
SKU: 785010115
Availability: InStock
Rating: 4.6 (37 reviews)

Price:	US $ 0.4-0.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MPO
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	3.52.11.5cm
Color:	Blue, Green, Beige, Aqua, Black, White, Red
Mode:	Singlemode,Multimode,APC
Material:	Plastic, Metal
Sleeve:	Zr,Br
Dust Cap Type:	Shutter,Rubber
Number Of Core:	Simplex,Duplex,
Flange:	Flangeless,with Flange
Transmission Medium:	Single-Mode
Structure:	LC
Number Of Cores:	Multi-Core
Ferrule Endface:	PC(',UPC)
Connector Type:	MPO
Brand:	Koc

Product Description

BRIEF INTRODUCTION
The MT-RJ and MPO are the MT series. Small size, Multi-channel is the most prominent feature, which greatly facilitates the high-density wiring. The MT series adapter have been widely applied to the CATV, Multimedia, Gigabit Ethernet, active device interface, data processing networks, telecommunication networks, asynchronous Transmission Mode (ATM). The MT series have low insertion loss and high precision guide pins exact alignment through adapter. There are two types of MT-RJ adapter, RJ-45 type and SC type, show as pictures. Either MT-RJ adapter or MPO adapter are black color and no sleeve design, single mode adapter and multimode adapter is the same.
FEATURES
Low insertion loss
Good exchangeability and durability
High temperature stability
All parts compliant with ROHS
Polytypic
APPLICATIONS
Active device termination
Test equipment
Passive optical fiber network
Data processing network
Telecommunication network
CATV, LAN, WAN

SPECIFICATIONS (MT-RJ, MPO adapter)

ITEM	PARAMETER
Applicative adapter type	MT-RJ, MPO
Adapter color	black
Test wavelength	1310nm, 1550nm, 850nm, 1300nm
Insertion Loss	typical≤0.20dB,Max≤0.30dB
Fiber core	MR-RJ:2; MPO:0~24
Repeatability	≤0.10dB
Interchangeability	≤0.20dB
Durability	≤0.20dB Max change,500 mating
Sleeve material	None
Adapter material	Plastic
Operating Temperature	-20ºC to +70ºC
Storage Temperature	-40ºC to +85ºC

Shenzhen KOC Communication Co., Ltd. Is specialized in fiber optic communication product manufacture. Our products range from the basic components to end products, including passive and active categories as follows: Basic Components: Connector kits, Adapter kits, Attenuator kits.

Passive products: Connector, Adapter, Attenuator, Patch-cord, ODF and enclosure.

Active products: Media converter, Transmitting and receiving assemblies, such as laser diode assembly, PD and PIN/TIA assembly, sub-assemblies such as TOSA, ROSA, BOSA.

FTTH System: Gpon: OLT, ONU, PLC

Headquarter located in Shenzhen, China, we have branch companies, representatives and distributors in Europe, America, Middle East, South Asia. KOC products are well accepted and sold in these areas.

We provide all our products with high quality, competitive price, short delivery lead time and excellent after-sales services.
