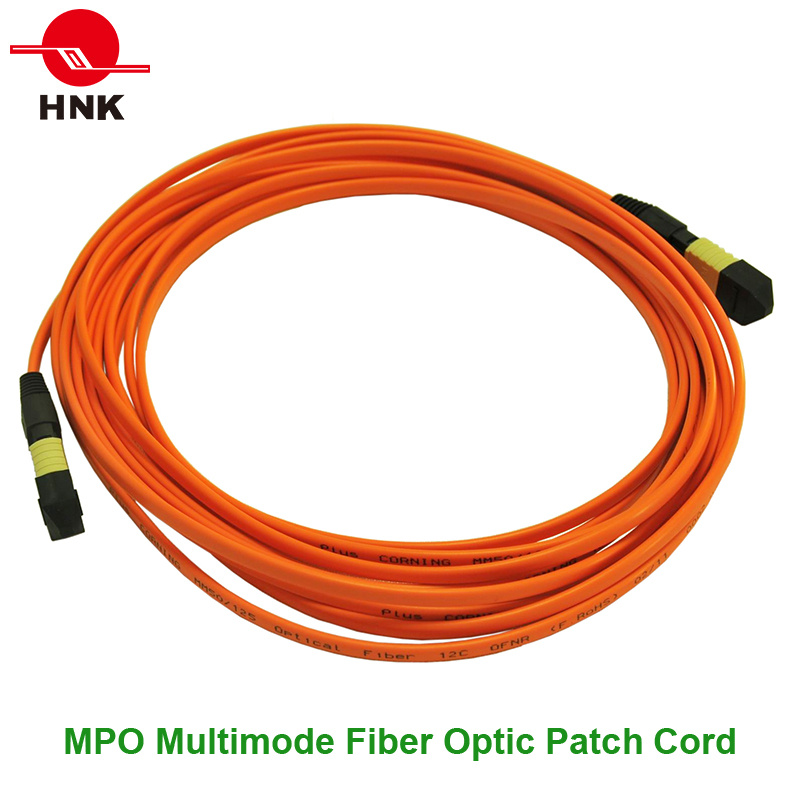

MPO Multimode Singlemode Fiber Optic Patch Cord

Name: MPO Multimode Singlemode Fiber Optic Patch Cord
Brand: all-electronics-online.com
SKU: 681909335
Availability: InStock
Rating: 5 (84 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MPO Patch Cord Cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Standard Colour:	Yellow, Orange, Aqua or Purple
Connectors Polish:	PC, Upc, APC
Connector Type:	According to Requirement
Length:	According to Requirement
Application:	Communication
Certification:	RoHS
Type:	Singlemode Fiber or Multimode Fiber
Connection Structure:	MPO
Brand:	HNK or OEM
Sheath Material:	PVC, LSZH

Product Description

Features:

·  High Performance in Insertion Loss & Return Loss
·  4,8,12 and 24 fiber connector terminations and assemblies
·  Designed for low loss and standard loss SM and MM applications
·  Economical solution for mass-termination of fiber
·  Suitable for MPO/MTP application

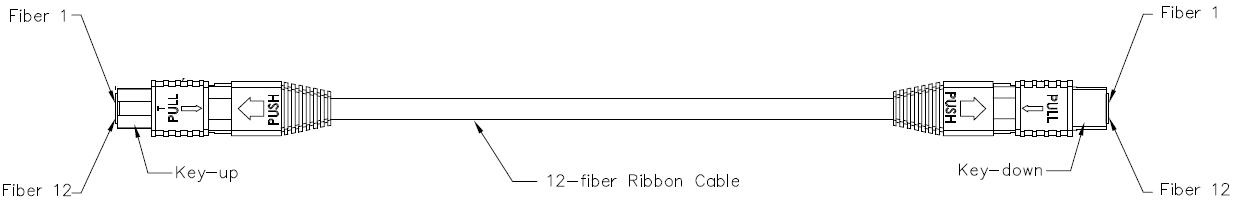

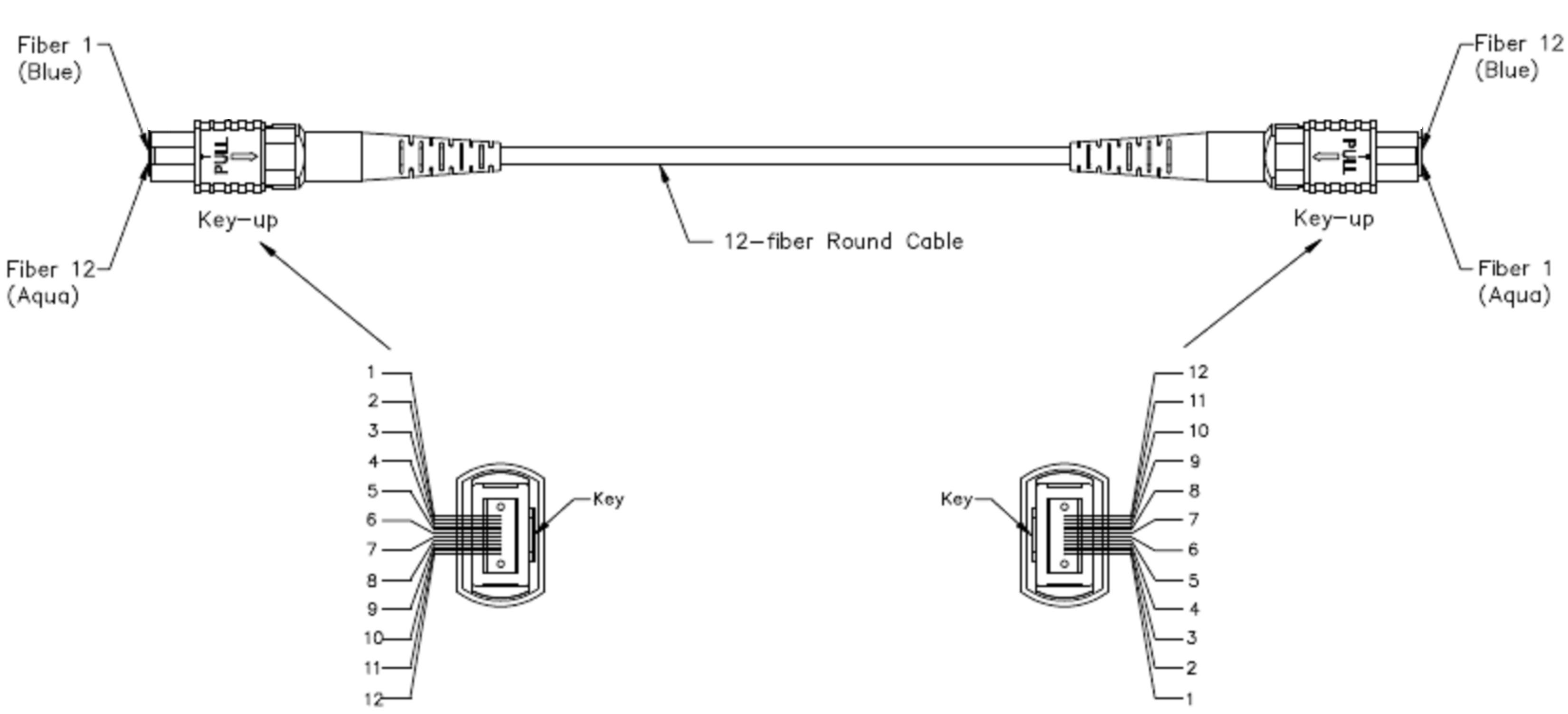

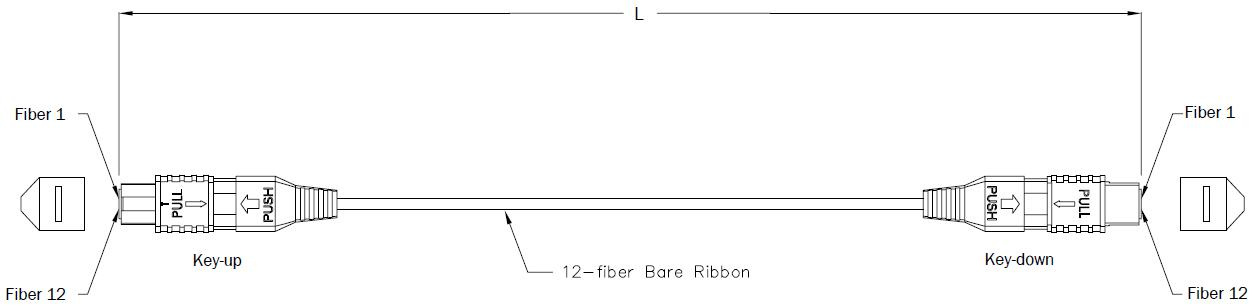

·  Ruggedized round cable, oval cable and bare ribbon options available
·  Color coded housings available to differentiate fiber type, polish type and/or connector grade

Compliance:
·  IEC 61754-7& JIS C5982
·  Structured cabling per TIA-568-C
·  Parallel Optics
    - Optical Internetworking Forum (OIF) Compliant
    - Infiniband Compliant
·  Infiniband
    - 10G Fiber Channel Compliant
    - 40G and 100G IEEE 802.3
    - QSFP

Specifications

Fiber Type	Single mode (APC Polish)		Multimode (PC/ Flat Polish)
Parameter	Standard	Low Loss	Standard	Low Loss
Insertion Loss Maximum	<0.7dB	<0.35dB	<0.7dB	<0.35dB
Return Loss	>60dB		None
Durability	>500 Mating Cycles
Operating Temperature	-40°C to 80 °C
Test Wavelength	1310nm		850nm

Applications:
·  Optical switching inter-frame connections
·  High fiber density card edge access
·  Array trunk cables
·  Datacenter cabling

Shenzhen HNK Optics Co., Ltd. (hereinafter referred to as "HNK") is a leading professional Fiber Optic and Data connectivity solution supplier and exporter from China. We focus on producing Fiber Optic Equipment, passive components and assemblies to the customer worldwide. With over 10 years experiences in massive production of Fiber Optic product the reliable stabilities of its high quality and excellent performance of its products. HNK has been continually growing and expanding the product lines to keep up the pace of industry trends.

HNK' S ISO9001 certified factory in Shenzhen, China, which occupy over 2000 square meters, with over 100 experienced workers, and 10 technical staffs, with advanced test equipment and facility. All HNK products are 100% visually and optically tested and are fully traceable through our ISO9001: 2008 certified quality system, also meet the standards of organizations such as Telcordia-326-CORE, ANSI/TIA/EIA, ISO/IEC 11801 and IEEE.

HNK' S knowledgeable sales, strong R&D team are dedicated to understanding your requirements and designing products & solutions to meet your needs.

HNK obtains the good reputations all these years from customer worldwide, for short lead time, fast and on-time delivery, excellent products quality, competitive price and good services.
