| Prod Model: |
8 Core OM3 10G MPO to LC Patch Cords |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
MPO to LC Optical Fibre Cable |
| Fiber: |
G652D, G655, G657A1, G657A2 |
| Connector Type: |
Sc, St, FC, St, MTRJ, DIN, Mu, Fddi, E2000 |
| Warranty: |
Three Years |
| Insertion Loss: |
Lower Than 0.2dB |
| MOQ: |
No Demand |
| Lead Time: |
One Week |
| Application: |
CATV |
| Certification: |
CCC |
| Type: |
8 Core |
| Connection Structure: |
MPO-LC |
| Core: |
8 Core |
| Brand: |
Senko |
| Sheath Material: |
PVC, LSZH, Ofnp Are Available |
Product Description

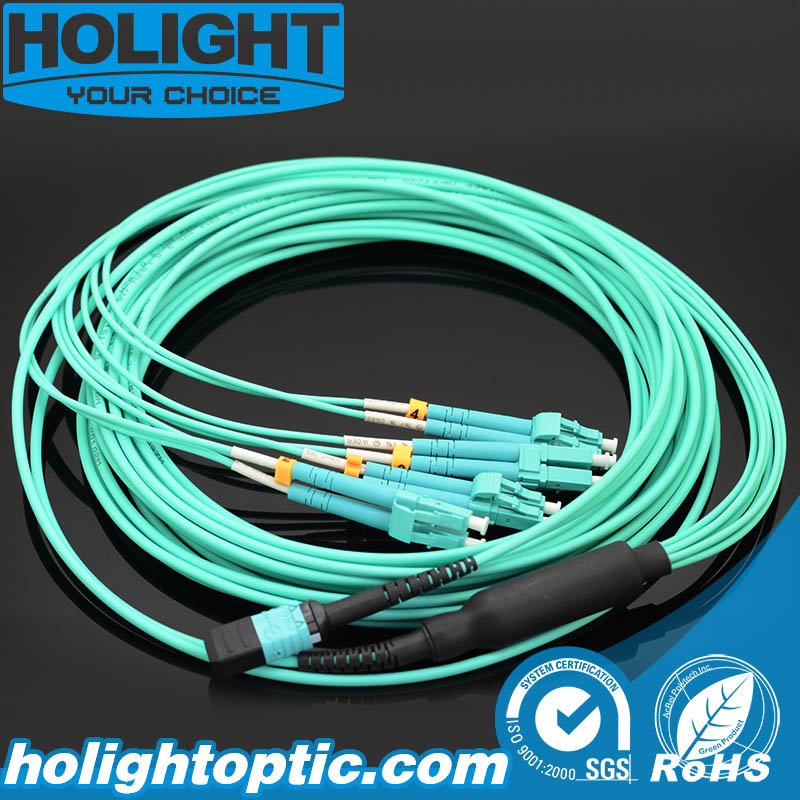

MPO to LC OM3 10G Fiber Optical Patch Cords
Description MPO/MTP harnesses cables are usually divided into three types of MTP-MTP connector, MTP-Common connector and MTP-Secure Keyed LC connector, according to different colors divided into SM, MM and 10G MM. The fiber cores range from 8 to 144.
The Harness MPO(MTP) cables are offered for various applications for all networking and device needs like 100 Gig modules including CFP, CFP2 and CFP4 series. All of our MPO(MTP) harness cables meet IEC 1754-7 and TIA/EIA 604-5 standards. Actually, it belongs to a custom product, please kindly email your requirements to us!
Features· With 12-fiber and 24-fiber MPO/MTO connector standard
· Available in OS1/2, OM2, OM3 and OM4
· Available in FC,LC, SC, ST, MU, and MTP
· Interface polished type has PC, UPC and APC
· Support use in attaching directly to 40/100G transceivers
· 100% factory tested, with test results included for each assembly
· Polarity options are TIA style A, B, or C (Method B is standard)
· For transition from trunk backbone assemblies to fiber rack system
· Discrete connectors are heat-cured and use ceramic ferrules and sleeves

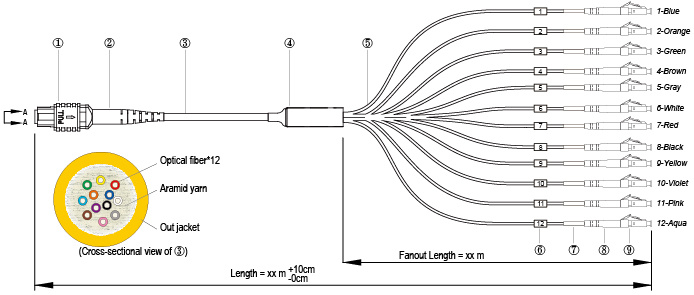

· Fan-out fibers from MPO/MTP connectors into individual simplex or duplex
· Used in conjunction with frame (Zero-U) or Flush Mount 1RU panels, and direct connect into SAN equipment
· Customized for length, staggering, connector type, breakout style, fiber count, and labeling
| MPO/MTP Termination |
| Type | Single mode(APC polish) | Multi mode(PC polish) |
| Fiber count | 8, 12, 24 etc. | 8, 12, 24 etc. |
| Fiber type | G652D, G657A1 etc. | OM1, OM2, OM3, OM4 etc. |
| Maximum Insertion Loss | Standard | Elite Low Loss | Standard | Elite Low Loss |
| ≤0.75 dB | ≤0.35 dB | ≤0.75 dB | ≤0.35dB |
| Return Loss | ≥55 dB | N/A |
| Working Temperature | -40ºC ~ 80ºC | -40ºC ~ 80ºC |
| Test Wavelength | 1310nm | 850nm |
| Generic Connector Termination |
| Type | Single mode | Multimode |
| UPC | APC | PC |
| Max. Insertion Loss | ≤0.3dB | ≤0.3dB | ≤0.3dB |
| Typical Insertion Loss | 0.2dB | 0.2dB | 0.2dB |
| Return Loss | ≥55dB | ≥65dB | ≥25dB |
| Working Temperature | -40ºC ~ 80ºC |
| Test Wavelength | 1310nm | 850nm |
| All MM SM shall be tested for IL |
Above performance refers to Optic standard grade performance, flexible specification is available to fit for different installation needs.

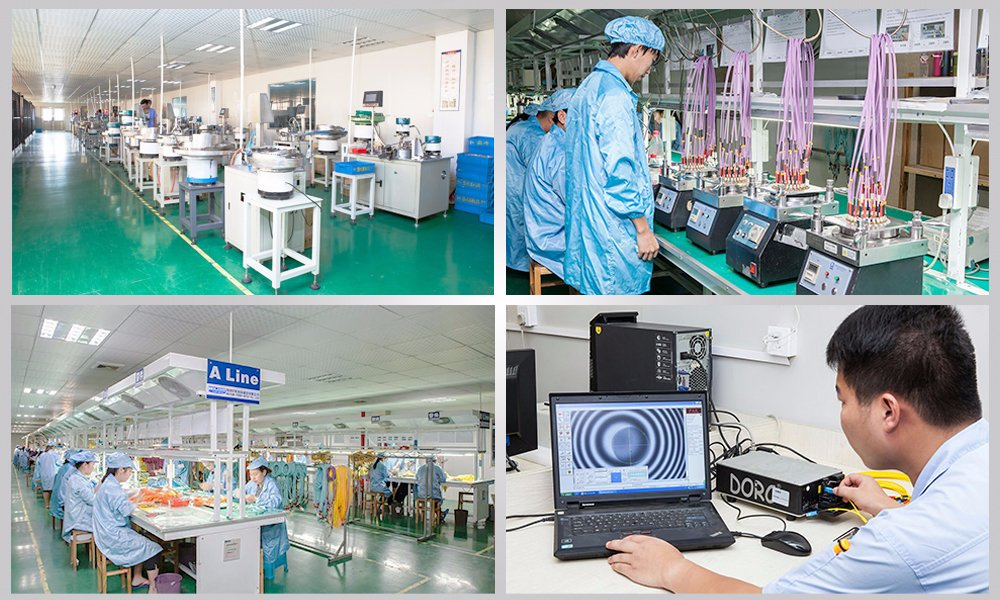

Holight, established in 2004, is a leading professional fiber optic patchcord manufacturer and exporter from China. We focus on producing fiber optic connector parts to overall assembly to the customers from all over the world. With nearly 12 years' experience in the export market, Holight has been continually growing and expanding the product lines to keep up the pace of industry trends.
