MPPT Solar Controller Charger (SL-40)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Money Gram |
| Prod Model: |
SL-40 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage: |
12/24 VDC 12 Auto-Detection |
| Rated Charge Current: |
40A |
| Load Current: |
15A, 20A,30A,40A Adjustable |
| Main Feature: |
Built-in MPPT Tracker |
| Max. PV Open Circuit Array Voltage: |
55VDC |
| Features: |
AC and DC Load Output Port |
| Display: |
LED Displays The Charge Status |
| Efficiency: |
>97% |
| PWM Power Control System: |
Highly Efficient and Reliable Power Mosfet Tramosf |
| Parallel: |
Yes |
| Task: |
Following |
| Structure: |
Combination |
| Mathematical Model: |
Linear |
| Signal: |
Continuous |
Product Description

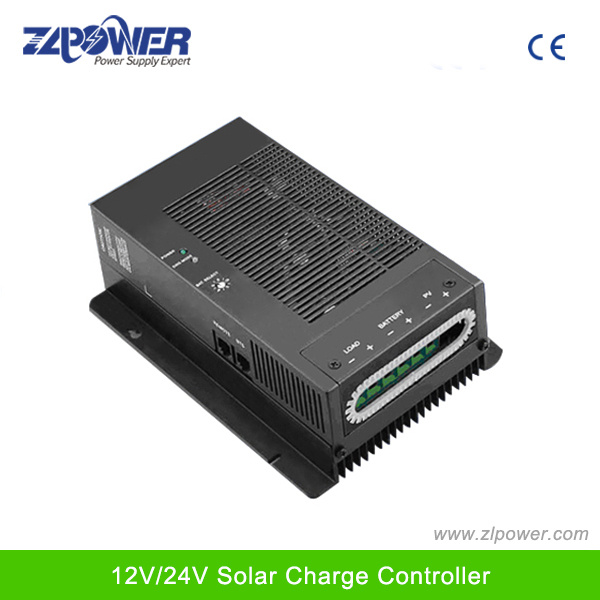

12V/24V Solar Charge Controller
Features:
1 High converting efficiency higher than 99.5% for minimizing energy loss
2 Build-in MPPT tracker for optimizing the power transformation
3 Reversed current protection for preventing equipment damage
4 Automatic battery temperature compensation for long-term reliability
5 Capable of selecting different charging mode for various type of batteries

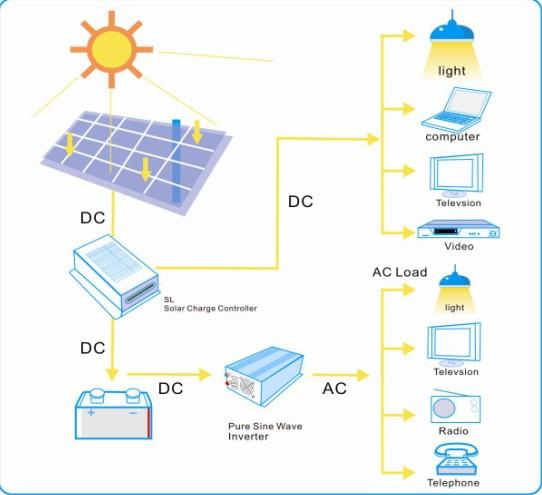

6 Capable of connecting additional DC load for wider applications
7 Three stage charge control system (bulk, absorption, and float mode) with temperature compensation
8 LED indicators display charge status in real time
9 Pulse Width Modulation (PWM) topology combined with a multi-stage charge control algorithm leads to superior charging and enhanced battery performance
Naturall Cooling
Size: 202 x 140 x 66 mm weight: 2KG
| MODEL | SL-40A |
| Rated Voltage | 12/24 VDC 12 Auto-Detection |
| Rated charge current | 40A |
| Load current | 15A, can up to 40A |
| Input voltage range | 15-55VDC |
| Max. PV open circuit array voltage | 55VDC |
| Typical idle consumption | At idle < 10mA |
| Overload protection (DC load) | 2.0*Inom>5s
1.5*Inom >20s
1.25*Inom temperature controlled |
| Bulk charge | 14.6V(default) | 29.2V(default) |
| Floating charge | 13.4V(default) | 26.8V(default) |
| Equalization charge | 14.0V(default) | 28.0V(default) |
| Over charge disconnection | 14.8V | 29.6V |
| Over charge recovery | 13.6V | 27.2V |
| Over discharge disconnection | 10.8 V (default) | 21.6V(default) |
| Over discharge reconnection | 12.3V | 24.6V |
| Temperature compensation | -13.2mV/ | -26.4mV/ |
| Lead acid battery settings | Adjustable |
| NiCad battery settings | Adjustable |
| Load control mode | 1. Low Voltage Reconnect (LVR): Adjustable
2. Low Voltage Disconnect (LVD): Automatic disconnection
3. Reconnection: Includes warning flash before disconnect and reconnection |
| Low voltage reconnect | 12.0-14.0 Vdc | 24.0-28.0 Vdc |
| Low voltage disconnect | 10.5-12.5 Vdc | 21.0-25.0 Vdc |
| Ambient temperature | 0-40(full load) 4060(de-rating) |
| Altitude | Operating 5000 m, Non-Operating 16000 m |
| Protection class | IP21 |
| Battery temperature sensor | BTS - optional remote battery temperature sensor for increased charging precision |
| Terminal size (fine/single wire) | #8 AWG |
Cooling
Size :202 x 140 x 66 mm weight:2KG | Naturall Cooling |
About ZLPOWER
Founded in 2007, Shenzhen ZLPOWER Electronics Co., Ltd. (ZLPOWER for short) is a key hi-tech enterprise in state "Torch Plan, " integrating science, industry, trade, and investment into a whole. It has registered capital of RMB 10million, covering a floor area of 2000sq. M, and owning assets of RMB 30 million.
As a large-scale enterprise group with total assets exceeding RMB 30 million, it currently employs more than 300 staff, operates R & D institutions, 10 products lines, and 8 overseas branches and offices for sales and service.
Also as a professional uninterruptible power supply manufacturer in Shenzhen, China, ZLPOWER mainly produce high frequency online UPS, computer PC UPS, rack mount online UPS, low frequency Industry three phase UPS, UPS Inverter, solar inverter, solar charger controller, Solar/UPS Battery and other related products.
In ZLPOWER, we are strictly on quality inspections. We implement strict IOC, IPQC, FQC, OQC, QA, and other quality control measures in every process according to ISO9001, including to raw materials selection, production, package, and shipment.
Thus, we are ISO9001: 2008 and SGS certificated, and all our UPS, Inverter power supply products have been approved by CE (LVD/EMC), UL tests. As a result, they are popular among our customers from Italy, Germany, South Africa, Egypt, Mozambique, Nigeria, UAE, Ukraine, Russia, Uzbekistan, Philippines, Chili, Peru, Brazil, Mexico and more.
ZLPOWER is looking for agent worldwide to distribute our quality UPS system, Inverter power and solar products to their local markets. Any interests please welcome to contact us today and look for best power solution.
