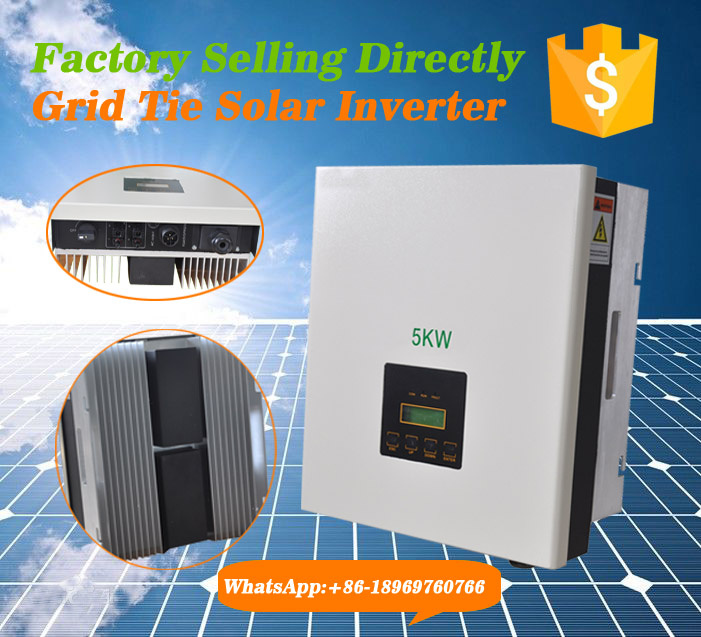

MPPT100-500V Single Phase Output Grid Tie Inverter

Prod Model:	BZS-6000W
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Wave Form:	Pure Sine Wave
Product Type:	DC to AC
Apply For:	Solar System
Waterproof:	IP65

Product Description

MPPT100-500V single phase output grid tie inverter
PV grid-connected power system includes PV modules, grid-connected inverter, meter and power switch board. The PV modules convert the solar energy to the DC power, then the grid-connected inverter the DC power to the sine wave AC power which has the same frequency and phase with the grid voltage. The AC power feed in the grid partly and the other powers supply the local loads.

Using the fifth generation lntellingent Power Module from Mitsubishi,
Improve the system efficiency higher
High conversion efficiency
Advanced technology for maximum power point tracking(MPPT)
(>97%)MPPT efficiency
Wide input voltage range
High reliability due to compltte protection function
Powerful communication interfaces
Easy operation and installation
Easy-to-set multilingual LCD display
Adjustable protection / operation parameters


Model		BZS 6000W
DC Input	MPPT Voltage Range	DC100 ~ 500V
	Rated DC Voltage	200-400V
	Control System	MPPT
AC Output	Output Power	6000W
	Rate voltage	AC220
	Voltage range	AC 185V ~ 264V (1 phase)
	Normal Grid Frequency	50/60Hz(Grid frequency)
	Phases	1 phase 2 wire
	Power Factor	> 0.95
	Current THD	At rated power and in the sine wave <5%
	Control System	PWM
	Anti-islanding	≤0.5 sec
	Total Max.Current	27.3A
	Max. Efficiency	97%
	Euro Efficiency	96.4%
Structure	Protection Class	IP65
	Cooling system	Natural cooling
	Noise	< 50dB
	Data Interfaces	External RS232C/RS485
	Display	LCD
	Packing Dimensions (W*H*D)	680*415*325mm
	Net weight	28.5 kgs
	Gross weight	33kgs
Protection	Inverter	Input over voltage, output short circuit, overheat, output DC component.
	Grid	Anti-islanding, over/under voltage of grid, over/under frequency of grid.

Q 1. What's the payment term?

A. We accept TT,Western Union,Paypal,MoneyGram.



Q 2.How's the delivery time ?

A. Is due to order quantity, usually it will take about 3-7days for sample production,


Q 3.Tell me the standard of package?

A. For the small capacity, it use carton, but for big capacity, we should use honeycomb carton and pallet or  wooden case for protection.



Q 4.Would you accept to use our logo ?

A.It's no problem to do OEM.


Q 5.We want to know month capacity.

A. It depends on which model.For example for relay type small capacity , month capacity can reach near 2000pcs  and big capacity near 500pcs.


Q 6.Where is your market?

A. Our products are popular in Australia,South America,Philippines,Italy, America, Pakistan and so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.


Q 7. What kind of certificate you have ?

A. Our company already achieve ISO9001, and for products, we have CE, SAA, G83 G59 etc .




OEM Services
1.Logo
Please offer us your own high resolution logo in JPG format,there should be two colors at most in the logo and there should be no gradient effect in the logo.
2.Label
Please offer us your own model numbers.
3. Manual
Please offer us the finished manual file that can be printed directly.



Lead Time
1.Sample orders will be delivered from our factory within 3-7 working days.

2.General orders will be delivered from our factory within 15-30working days.
3.Big orders will be delivered from our factory within 45 working days at most



Shipment
1.By EMS,DHL,FedEx,TNT,UPS or other express.

2.By our forwarding agent(by air or by sea).

3.By your own forwarding agent.
4.By domestic forwarding agents to any city in China.
