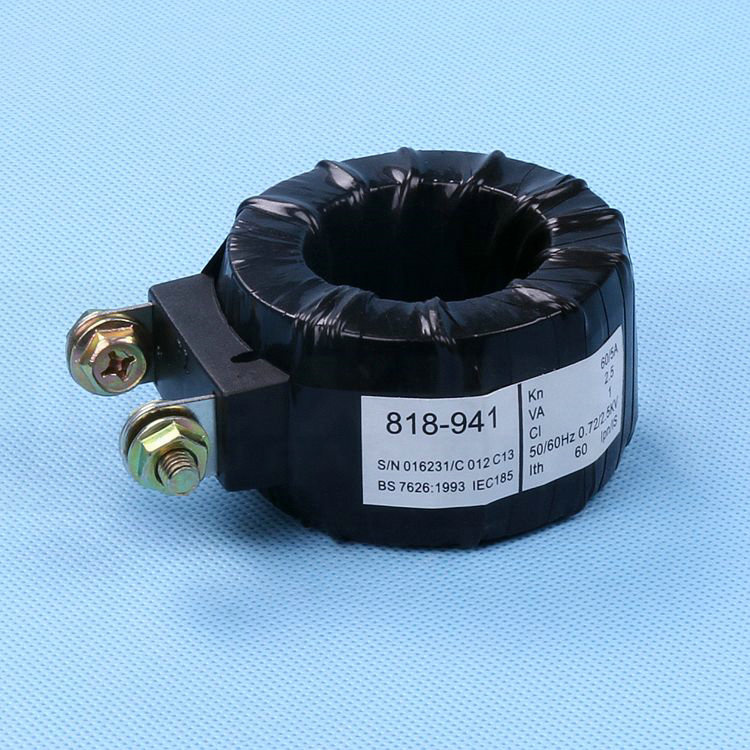

Mr Ring Type for Generator Current Transformer

Name: Mr Ring Type for Generator Current Transformer
Brand: all-electronics-online.com
SKU: 824293695
Availability: InStock
Rating: 5 (51 reviews)

Price:	US $ 2.03/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MR
Colour:	Black
Primary Current:	5A~5000A
Class:	0.5/1.0
Frequency:	50/60Hz
Type:	Transformer

Product Description

Primary current:	5A-5000A
Secondary current:	5A,1A
Standard appoval:	IEC185 BS7626
Maximum voltage:	720V/AC
Freguency	50-60HZ
Rate load:	5VA-10VA
Class	0.5,1.0
Rated security coefficient:	FS<5
MSQ-30B Current Transformers Data Sheet

Specification:
MR current transformers:

Description of MR current transformers:
Can be applied to test, control display and record the running of the electrical equipment
Protects the equipment against the damage in the AC circuit with the rated voltage value below 720V and the frequency of 50 to 60Hz
Can also be applied to form complete set of mine transformer
Comply with VDE 0414, BS7626 and IEC 44-1 standards
Sell very well in Greece,Italy,Russian,South African,Egypt etc.

Model	Specification	ID	OD	HT
MR-28	30/5A-60/5A	28	70	40
MR-42	100/5A-250/5A	42	80	30
MR-45	300/5A	45	80	30
MR-60	400/5A	60	100	30
MR-60	500/5A 600/5A	60	100	30
MR-85	800/5A 1600/5A	85	120	20
MR-125	2000/5A-5000/5A	125	165	20

Product Detail

Fundamental:

About Warranty:

At least A year!

Delivery Time:

Whin 15 Days After you place an Order!
