Yueqing JYins Electric Technology Co., Ltd. >> Ms-100W Single AC DC LED Switching Mode Power Supply

Ms-100W Single AC DC LED Switching Mode Power Supply

Ms-100W Single AC DC LED Switching Mode Power Supply
Price: US $ 6.7-7/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: Ms-100W
OEM, ODM: Accepted
Power: 100W
Type: Automatic Select
Color: Grey
Output Voltage: 5V/12V/15V/24V
Output Type: Single
Warranty: 2 Years
Output Power: 51 - 100W
Input Voltage: Full Range
Connection Mode: Series Switching Power Supply
Starting Mode: Self-excited Switching Power Supply
Voltage Regulating Mode: Frequency Modulation Type
Power Supplying System: Level 1 Power Distribution Equipment
Certification: ISO
Brand: Jyins

Product Description

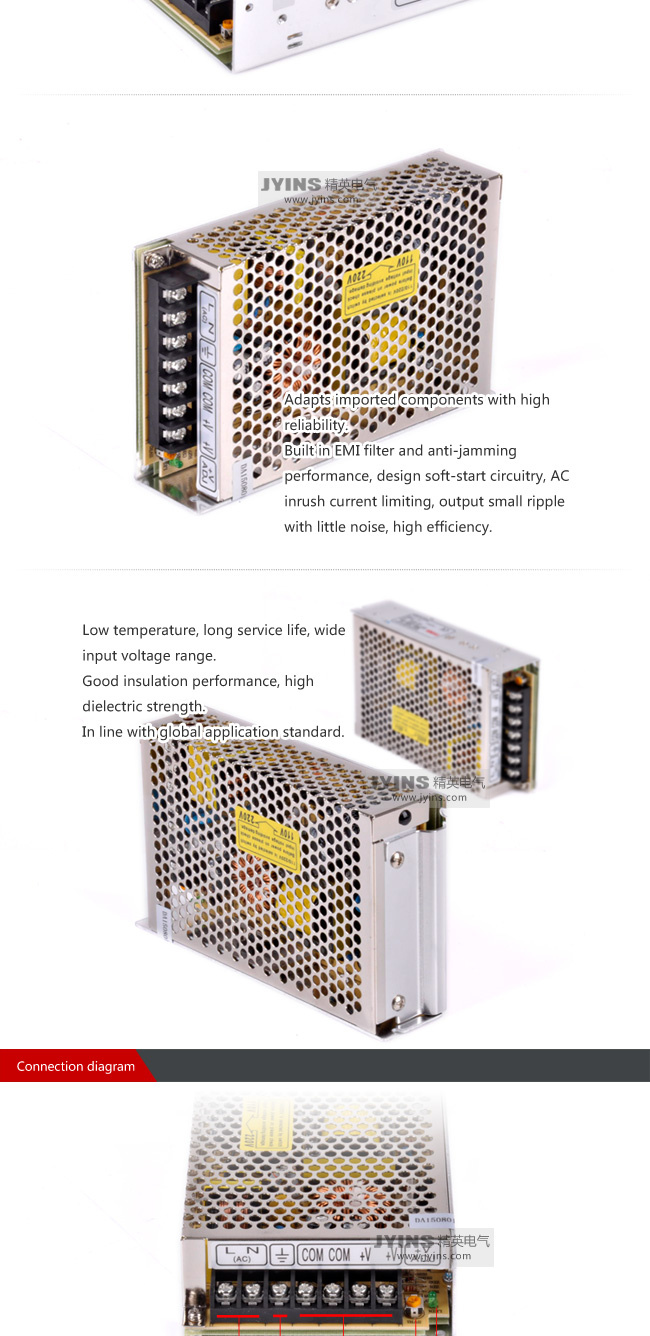

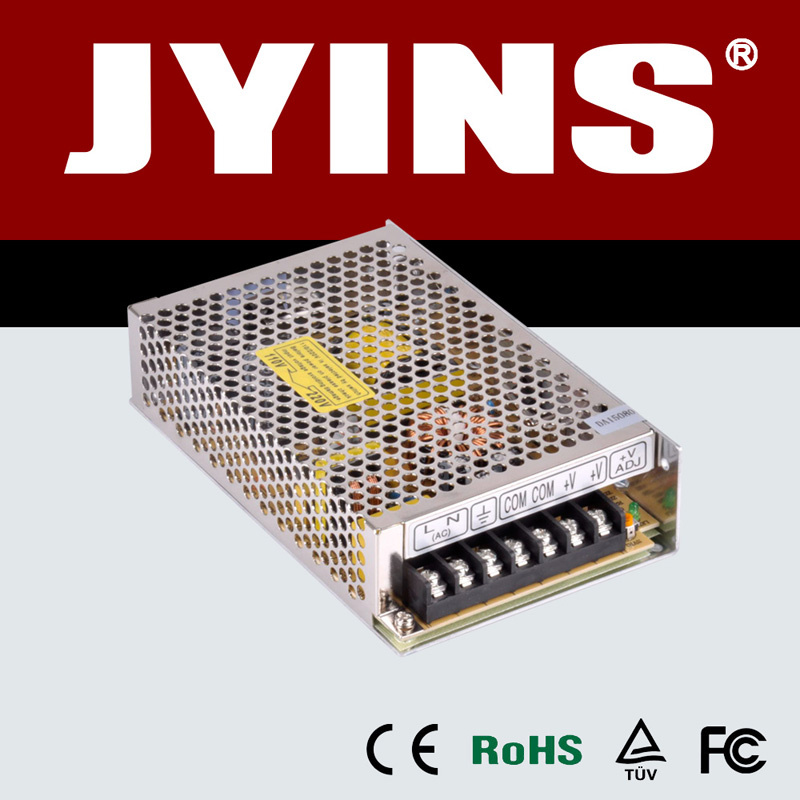

MS-100W Single AC DC Led Switching Mode Power Supply
Technical Parameters
(Model)MS-100-5MS-100-12MS-100-15MS-100-24
DC output voltage5V12V15V24V
Output voltage range2%1%1%1%
Rated output current20A8.2A6.6A4.2A
Output current ranqe0-20A0-8.2A0-6.6A0-4.2A
Wave and noise75mVp-p75mVp-p75mVp-p75mVp-p
Inlet stability0.50%0.50%0.50%0.50%
Load stability1%0.50%0.50%0.50%
DC output power100W100W100W100W
Efficiency75%78%78%82%
Adjustable range for DC voltage+10,-5%10%10%10%
AC input voltage rangeAC 170-264VAC 47-63Hz,240-370VDC
Input current0.65A/230V
AC Inrush currentCold-start current 36A/230V
Leakage current<0.5mA/240VAC

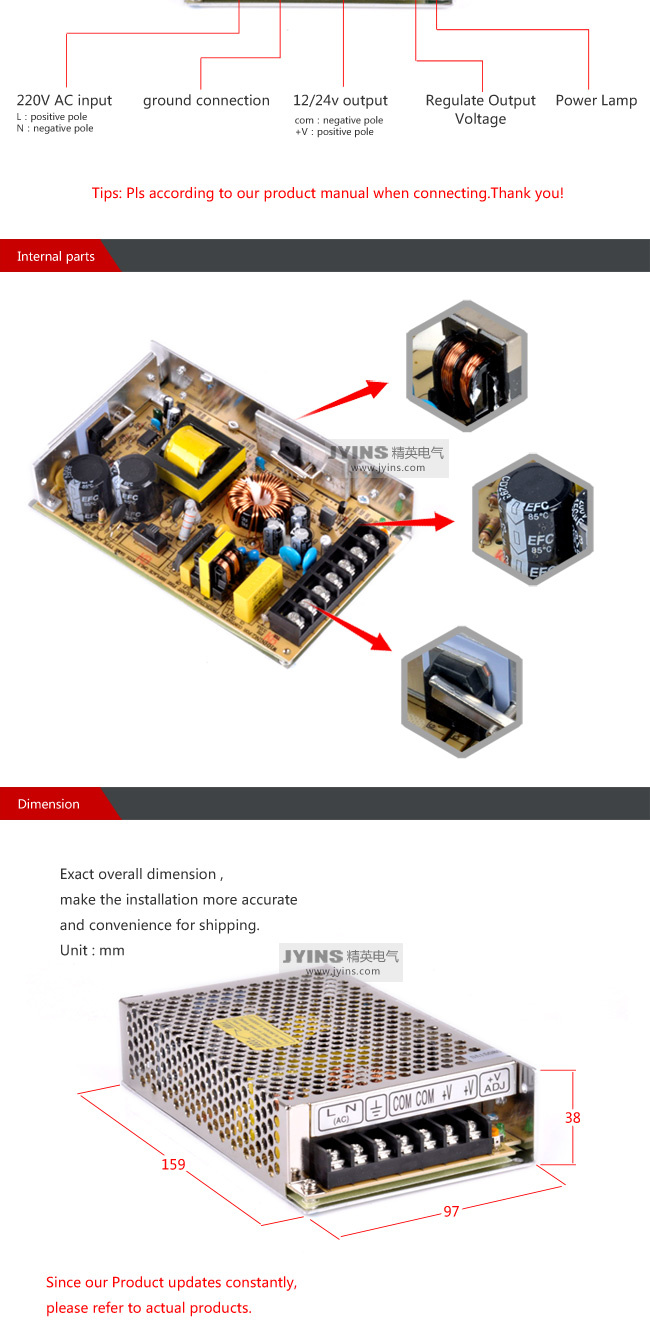

Overall dimension157X97X38mm
Weight0.5kgS
Safety standardsMeet UL 1012 requirement(Not apply for the mark
Product Descriptio
WHY CHOOSE US
1. Our company is a professional manufacture and OEM.
2. Low price and high reliability
3.Hight efficiency and low operation temperature
4.Soft-start current can reduce the AC input impact effecticly

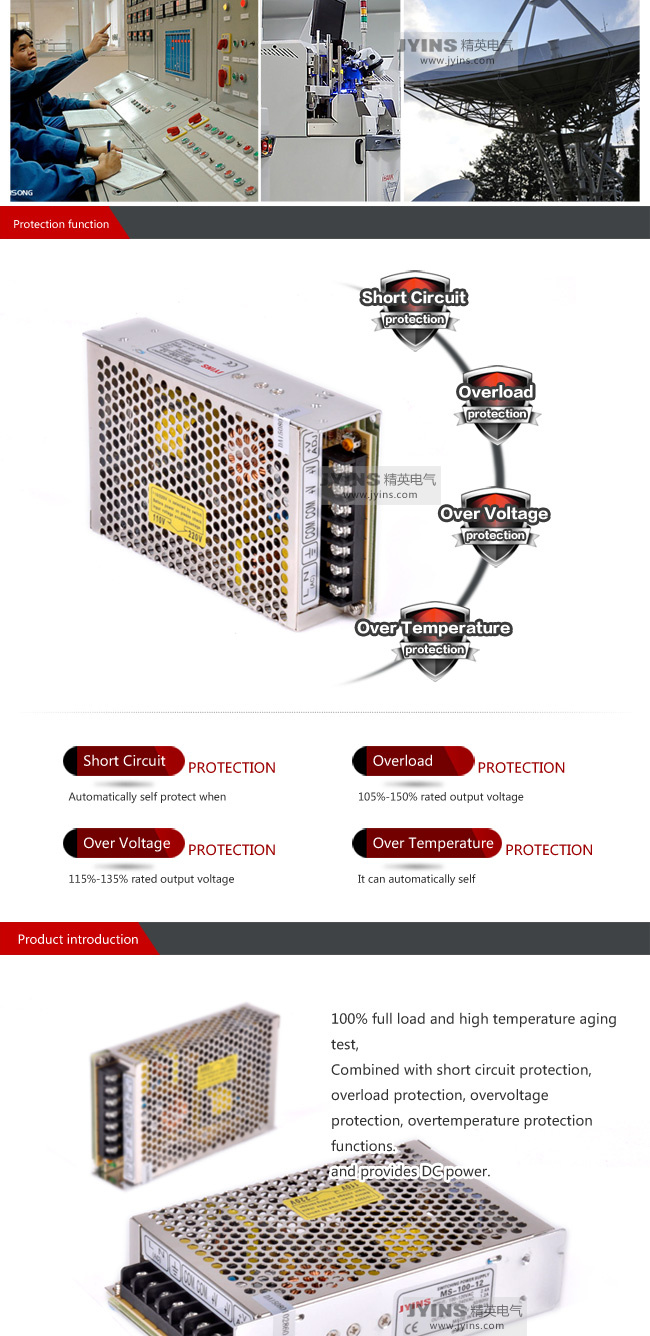

With Short-circuit and owwerload protection
5.100% full-load burning test
6.Our products obtain CE and ISO9001 Certificate and according to IEC 521

Yueqing Jyins Electric Technology Co., Ltd. Founded in 1990, is located in the largest manufacturing base of low-voltage electric equipment of China--- Liushi, which is called "the Electric Device Metropolis of China". We are one of leading enterprises specialized in designing, manufacturing, developing and exporting all kinds of high and low voltage electric appliances, such as temperature controller (indicator), thermocouple, shunt, thermocouple wire, thermal resistor, current/voltage meter(panel meter), current divider, gas meters, water meter, KWH meter, automatic nozzle, contactor, relay, circuit breaker, transformer, thermal relays, pushbutton, lightning arrester, dropout fuse, switch, pneumatic, cylinder, cable accessories, power instrument, lighting, doorbell etc.

We have employed 500 workers and our factory covers 4, 0000 square meters area. with total assets reaching 5 million US dollars, we own modern production lines and high quality controlling equipments with scientific administration, professional engineers, highly trained technicians and skilled workers. Consequently, our products are of both high quality and high ratio of performance and are widely exported to worldwide markets with good reputation and credit. Now we are selling products to North and South America, Middle East, Southeast Asia, Western Europe, Africa, Hong Kong, Taiwan area and etc...

"Quality first and user uppermost" is one of our principles. We always strive for best in quality and after-sales services to satisfy customers' demands. We sincerely welcome customers from worldwide to share our good quality products and services. with ceaseless efforts and developments in design and technology, we will surely do better and better. High praise among the customers.

We sincerely welcome our friends at home and aboard to guide us and then develop together.
