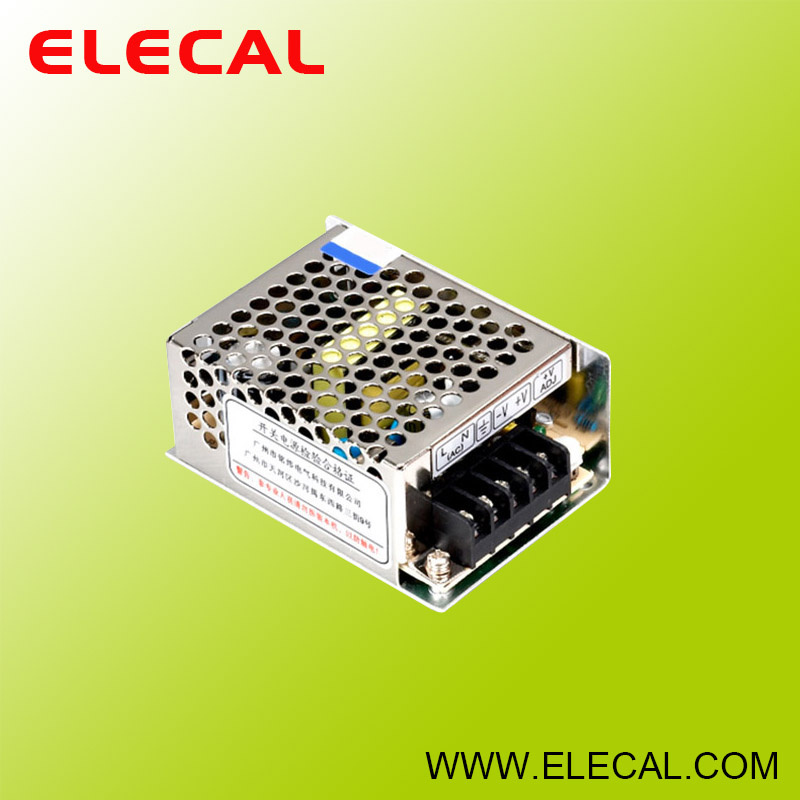

Ms-15 Single Output Switching Power Supply

MS-15-5

MS-15-12

MS-15-15

MS-15-24

OUTPUT

DC VOLTAGE

5V

12V

15V

24V

RATED CURRENT

3A

1.3A

1A

0.7A

CURRENT RANGE

0~3A

0~1.3A

0~1A

0~0.7A

RATED POWER

15W

15.6W

15W

16.8W

RIPPLE & NOISE (max.) Note.2

75mVp-p

100mVp-p

100mVp-p

100mVp-p

VOLTAGE ADJ. RANGE

4.75-5.5V

10.8 ~ 13.2V

13.5-16.5V

22.6 ~ 26.4V

VOLTAGE TOLERANCE Note.3

+2.0%

±1.0%

±1.0%

±1.0%

LINE REGULATION

±0.5%

±0.5%

±0.5%

±0.5%

LOAD REGULATION

±1.0%

±0.5%

±0.5%

±0.5%

SETUP, RISE, HOLD TIME

200ms 100ms 20ms at full load

INPUT

VOLTAGE RANGE

85~264VAC 120~370VDC

FREQUENCY RANGE

47-63HZ

EFFICIENCY(Typ.)

79%

82%

82%

84%

AC CURRENT

0.2A/230VAC

INRUSH CURRENT(max.)

COLD START 36A/230VAC

LEAKAGE CURRENT

<1mA/240VAC

PROTECTION

OVERLOAD

105 ~ 150% rated output power

Protection type: Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.

-10 ~ +60°C (Refer to output load derating curve)

WORKING HUMIDITY

20 ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-20~+85°C,10~95%RH

TEMP. COEFFICIENT

±0.03%/°C (0~50°C)

VIBRATION

10~500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes

SAFETY&

EMC

SAFETY STANDARDS

Design refer to UL1012

WITHSTAND VOLTAGE

l/P-0/P:1.5KVAC l/P-FG:1.5KVAC O/P-FG:0.5KVAC

ISOLATION RESISTANCE

l/P-O/P, l/P-FG, O/P-FG:100M Ohms/500VDC

EMI CONDUCTION & RADIATION

Design refer to FCC Parti 5 J Conduction Class B

OTHERS

MTBF

408.3K hrs min. MIL-HDBK-217F (25°C)

DIMENSION

84*58*38mm(L*W*H)

PACKING

0. 17Kg;100pcs/18Kg/0.9CUFT

NOTE

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1 uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.
