Ms-50-5 with Ce RoHS 5V 10A Mini Size Power Supply, SMPS, Regulated Power Supply

Name: Ms-50-5 with Ce RoHS 5V 10A Mini Size Power Supply, SMPS, Regulated Power Supply
Brand: all-electronics-online.com
SKU: 839812375
Availability: InStock
Rating: 4.5 (63 reviews)

Price:	US $ 7-8/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	MS-5
Output Type:	Single
Warranty:	1 Year
Output Power:	1 - 50W
Input Voltage:	110-220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CCC
Brand:	Ann

Product Description

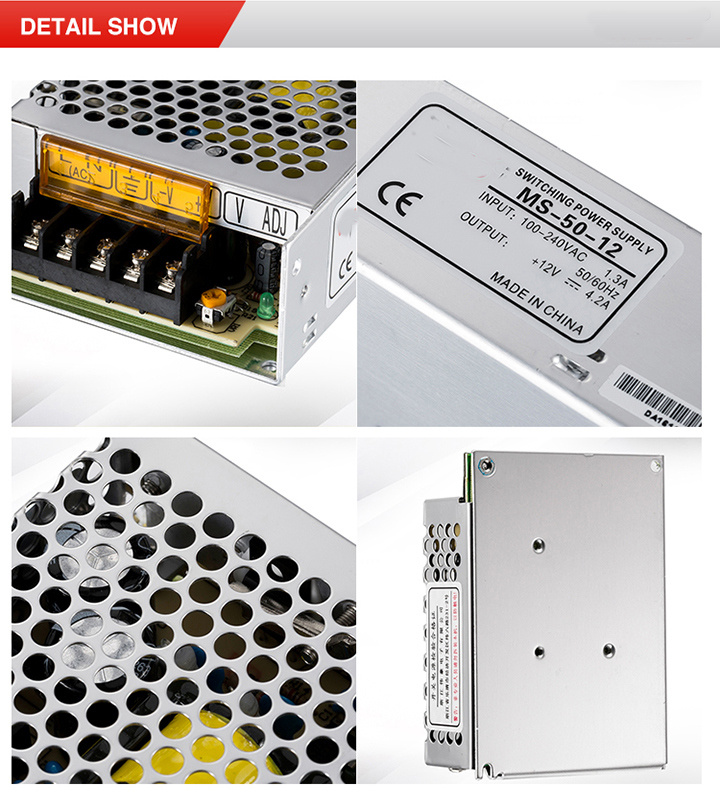

50W Switching Power Supply

Features:

1. AC input 90~132VAC / 180~264VAC

2. Protections: Short circuit / Overload / Over voltage / Over temperature

3. 100% full load burn-in test

4. Low cost, high reliability

5. 12 months warranty

Specifications:

Model	MS-50-5	MS-50-12	MS-50-15	MS-50-24
DC output voltage	5V	12V	15V	24V
Output voltage range	±2%	±1%	±1%	±1%
Rated output current	10A	4.2A	3.4A	2.1A
Output current range	0-10A	0-4.2A	0-3.4A	0-2.1A
Wave and noise	75mVp-p	100mVp-p	100mVp-p	100mVp-p
Inlet stability	±0.5%	±0.5%	±0.5%	±0.5%
Load stability	±1%	±0.5%	±0.5%	±0.5%
DC output power	50W	50.4W	51W	50.4W
Efficiency	75%	78%	78%	82%
Adjustable range for DC voltage	+10,-5%	±10%	±10%	±10%
Input current	1.3A/115V 0.65A/230V
AC inrush current	Cold-start current 18A/115V 36A/230V
Leakage current	<0.5mA/240VAC
Temperature coefficient	±0.03%/°c(0~50°c)
Setup, rise , hold up time	200ms, 100ms, 30ms
Vibration	10~500Hz, 2G 10min,/1cycle, Period for 60min, Each axes
Withstand voltage	Input and output internal: 1.5KvAC, Input and enclosure:1.5KvAC, Output and enclosure:0.5KvAC
Working temperature and humidity	-10°c~+60°c(Refer to output derating curve), 20%~90%RH
Overall dimension	100×58×32mm
Weight	0.5Kgs
Safety standards	Meet UL 1012 requiement (Not apply for the mark)
