| Prod Model: |
MS132S1-2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
380V/660V or on Request |
| Frequency: |
50Hz or 60Hz |
| Connection: |
Star-Connection,Delta-Cpnnection |
| Duty: |
S1 |
| Insulation Class: |
F |
| Protection Class: |
IP55 |
| Cooling Method: |
IC411 |
| Ambient Temperature: |
-15oc~40oc |
| Number Of Stator: |
Three-Phase |
| Operating Speed: |
Constant Speed |
| Application: |
Universal |
| Casing Protection: |
Closed Type |
| Rotor Structure: |
Winding Type |
| Starting Mode: |
Direct on-line Starting |
| Brand: |
Kailida |
| Species: |
Ms Three Phase |
| Certification: |
CE |
Product Description
1.Motor Introduction

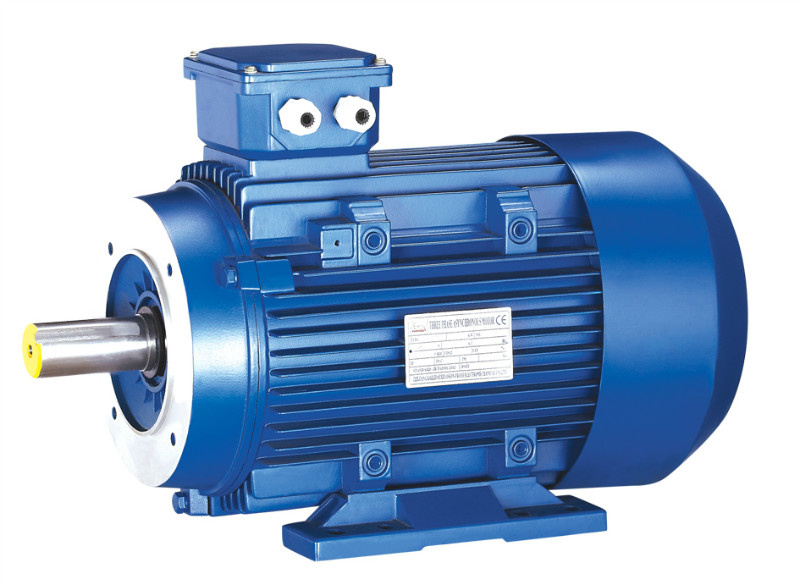

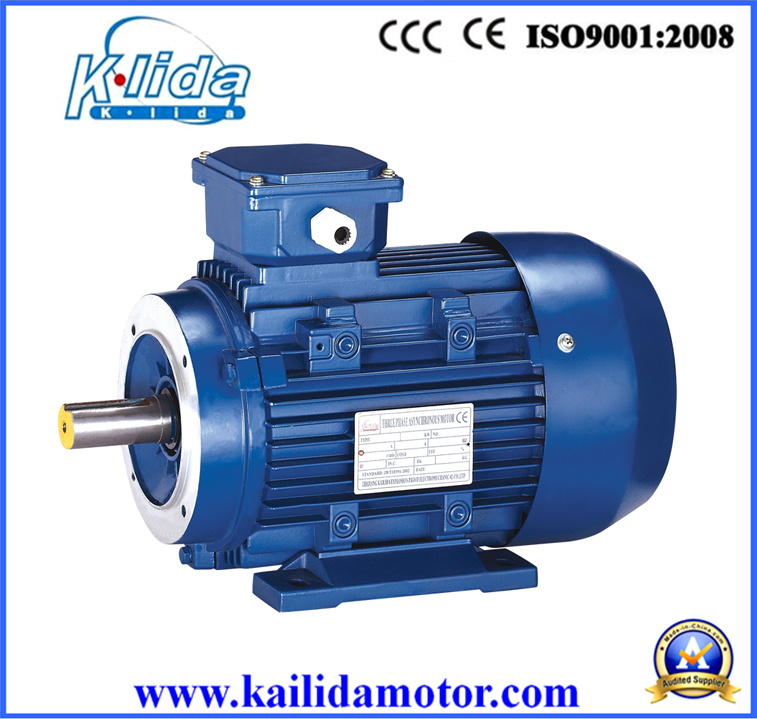

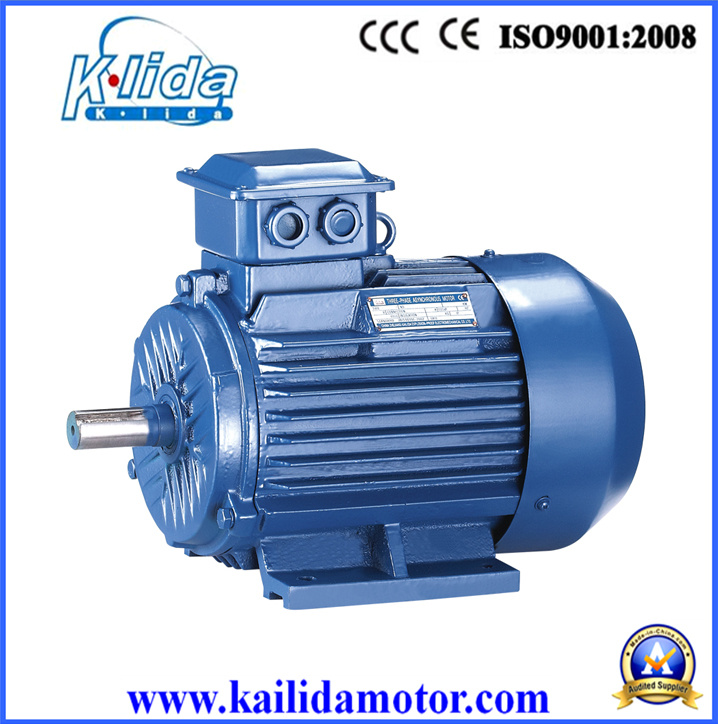

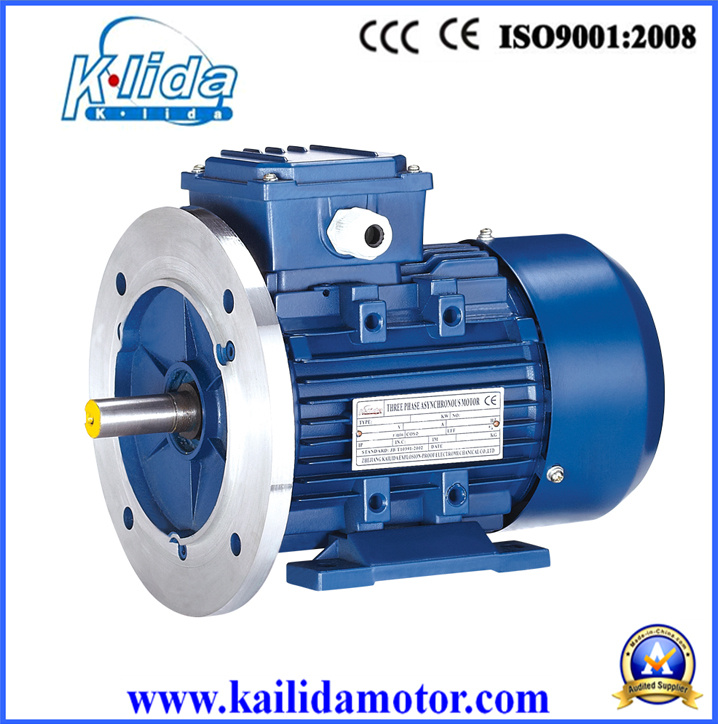

MS series aluminum housing Three phase motors, with newest design in entirety,are made of selected quality materials and conform to the lEC standard.
MS motors have good performance, safety and reliable operation,nice surface and can be maintained very conveniently, with low noise,little vibration,light weight and simple construction.
2.Specifications
MS series three-phase asynchronous lightweight electric motor with CE certification
Technical parameters:
1.Frame size:H132
2.Rated power:15KW
3.Rated voltage:380/660V or on request
4.Rated Frequency: 50 Hz / 60 Hz;
5. Poles: 2
6. Speed: 2935r/min
7. Ambient Temperature: -15°C-40°C
8. Model of CONEECTION: Y-Connection for under 3 KW motor while Delta-Connection for above 4 KW motor;
9. Mounting: B3; B35; B34; B14; B5; V1;
10. Current: 34.7A (AC);
11. Duty: continuous (S1);
12. Insulation Class: F;
13. Protection Class: IP55;
14. Cooling Method: IC411;
15. Altitude: No more than 1,000 meters above sea level;
16. Packing: 63-132 frame be packaged by carton&pallets
160-355 frame be packaged by plywood case;
3.Kailida Motors Factory Advantages.
· Prompt Quotation.
· Competitive Price
· Guaranteed Quality
· Timely Delivery.
· 100% Tested.
· Sincere and Professional Service.
· Outstanding Finishing Surface.
· Strictly and Perfect Management is guaranteed for Production.
· Specialized in Manufacturing and Supplying a wide range of Electric Motors since year 2002.
· Have Rich Experience and Strong ability to Develop New Products.
· Have Ability to Design the Products Based on Your Original Samples.
WHAT WE DO AT KAILIDA
· Stamping of lamination
· Rotor die-casting
· Winding and inserting – both manual and semi-automatically
· Vacuum varnishing
· Machining shaft, housing, end shields, etc…
· Rotor balancing
· Motor assembly
· Painting – both wet paint and powder coating
· Packing
· Inspecting spare parts every processing
· 100% test after each process and final test before packing.
WHAT KAILIDA CAN DO FOR CUSTOMERS
· Kailida supplies standard products to customers.
· Kailida supplies standard products under customers' brands and packaging, etc
· Kailida R&D department develops any new products together with the customers.
We Promise you all the time after you working with us for Win-Win Business.
· Prompt Reply to Your Inquiry within 24 Hs during Working Days.
· Long Life Time Products
· Products One Year Guarantee from the Date of Sales.
· Professional Service in Handling Your Goods in Daily Communications
· Deliver Time about 15-20 days for Normal Models.
· Deliver Time about 30 days for New Models upon Receiving the New Samples.
