Yueqing Heyi Electrical Co., Ltd. >> Msq Current Transformer for Energy Meter Window Typr CT

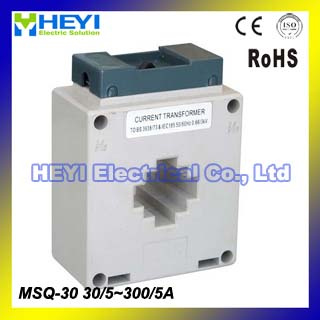

Msq Current Transformer for Energy Meter Window Typr CT

Msq Current Transformer for Energy Meter Window Typr CT
Price: US $ 0.5-2.08/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Prod Model: MSQ-30
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Porduct Type: Window Type
Window Size: 30mm
Color: Blue ,Black .White
OEM: Accept
Application: Instrument
Type: Current Transformer
Phase: Single

Product Description


Description
MSQ Current Transformers are suitable to be applied to test, control, display and record the running of the electrical equipment, in the AC circuit with the rated voltage value below 0.72KV and the frequency of 50-60Hz, mainly used in combination with measure meters like ammeter, watt-hour meter, control relayu etc.

MSQ current transformer / MFO current transformer:
1.Model:MSQ-30,MSQ-30B,MSQ-30T,MSQ-40,MSQ-60,MSQ-85,MSQ-100,MSQ-125
2.Standard:IEC60044-1
3.Certificate:ISO9001:2000, ISO14001:1996,CE
4. Professory transformer manufacturer

Specifications
1.Rated current:5/5A-6000/5A,
2.Secondary current :5A.1A
3.Rated voltage:0.72kV
4.Rated frequency:50/60Hz
5.Class of accuracy:0.5~1.0
6. Rated security coefficient :FS<5
7.Ambient Temperature Range:-20 to +80


Type
Current ratio(A)Rated power(VA)Rated
Class:0.5Class:1Frequency(Hz)
MSQ-3030/55550/60
40/55550/60
50/55550/60
60/55550/60
75/55550/60
80/55550/60
100/55550/60
150/55550/60
200/55550/60
250/557.550/60
300/5101050/60

We are the professional manufacturing the 0.5-35 KV outdoor indoor, fuse cut out composite insulator dry type, oil-immersed, combined transformer, electrical energy meter, power capacitor correction bank, low voltage stablizer and so on

1. Who we are

Heyi is dynamic company established in 1992, who specializes in research and design, manufacturing, and distribution of all kind ofcurrent transformer

Further more, we also develop ours business for the electrical product, like energy meter, power meter, power capacitor, relay, proximity switch and so on, focusing in ours customers needs, provide the best solution supporting ours customers, be the best in their filed of businss

2 why choose us

We have our own facilities for R&D, Production, Sales & Market, and Customer Support, specializing in the design, manufacture and delivery of customized solution. Equipped with all kinds of professional instruments and testing equipment, combined the professional standard of product testing methods, now we has an annual output of 5, 000, 000 or more products.

3 Heyi Mission, vision values

Heyi mission is to provide reliable, accurate and customized current transformer solution

Heyi vision is leading global split core CT manufacture and energy solution provider

Values Enthusiastic by our work, we offer a quality personal and close service to our customers

Some products have been approved by CE and IEC certificates.
