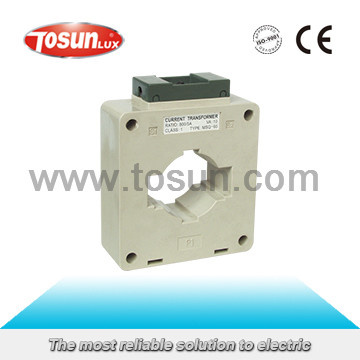

Msq Current Transformer

Name: Msq Current Transformer
Brand: all-electronics-online.com
SKU: 753756235
Availability: InStock
Rating: 4.6 (45 reviews)

Price:	US $ 2.73-2.76/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MSQ-60
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Grey
Rated Voltage:	660V
Rated Frequency:	50/60Hz
Type:	Current Transformer
Phase:	Single
Application:	Instrument

Product Description

Application

1. The series of current transformer can be applied to test, control, display and record the running of electrical equipment, and to protect the equipment against teh damage

2. It is in the AC circuirt with the rated voltage value below 660V and the frequency of 50/60Hz.

3. The product can be also applied to form a complete set of mine transformer.

4. It conforms to IEC 60185.

Specification

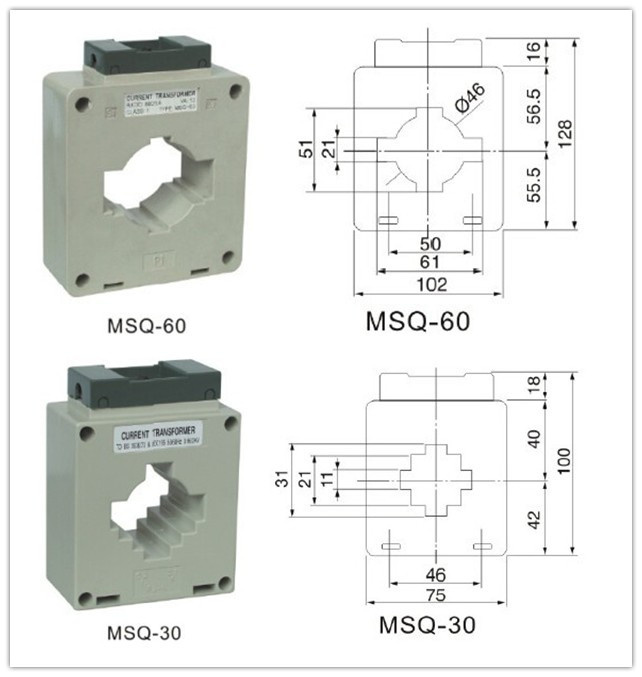

Model	Measuring Range
MSQ-60	400/5A
	500/5A
	600/5A
	800/5A
	1000/5A

Model	Measuring Range	Through Times
MSQ-30	30~50/5A	2T
	60/5A	1T
	100/5A	1T
	150/5A	1T
	200/5A	1T
	250/5A	1T
	300/5A	1T

Model	Measuring Range
MSQ-40	200/5A
	250/5A
	300/5A
	400/5A
	500/5A
	600/5A

Model	Measuring Range

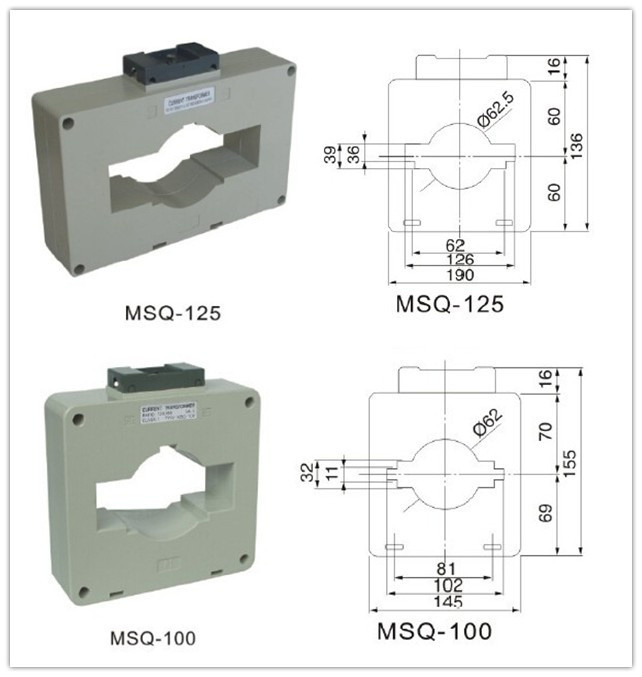

MSQ-100	1000/5A
	1200/5A
	1500/5A
	1600/5A
	2000/5A
	2500/5A
	3000/5A

Model	Measuring Range
MSQ-125	1500/5A
	2000/5A
	2500/5A
	3000/5A
	3500/5A
	4000/5A
	4500/5A
	5000/5A
	6000/5A

Why Us?

1. Clients' benefit first.

2. Experinced in the line for more than 21 years.

3. Reasonable price and good source of raw material.

4. A group of professional inspectors monitor quality.

5. TUV, SEMKO, CE, CB, ROHS Approval for products.

6. Unique design for packing.

7. Experienced salesmen offer one-to-one service.

For More Information

www.tosun.com
www.tosunlux.com

We are one of the most reliable manufacturers and exporters of low tension electrical items and illumination products in China. We have successfully developed and dealt with numerous electrical products in high quality, such as Circuit Breaker, AC Contact, Panel Enclosure, Electrical Accessories for Panel Enclosure, Pushbutton, Switch, Fuse, Meter, Temperature Controller, Cable Tie, Wiring System products as well as illumination items.

· Qualifications and Technological Strength

We possess full line of high-tech production equipment and great strength of technology support besides advanced designing forces powered by the first class engineering teams with super industrial computer systems. Thus, Our products are novel in designs, excellent in workmanship and tope reliable in quality. A lot of our products have obtained "RoHS", "CB", "CE" and "IRAM", and other international quality approvals. The products now are being well sold in more than 82 countries and regions in the world.

· Contact Us Today

We have always pays special attention to protecting the benefits of clients' so that both the clients ans our company are able to gain the maximum benefits from the relations between us. We warmly look forward to establishing, reinforcing and expanding long term fruitful relationship with the reliable clients all over the world.

Let's get busy and pull together to create a better future.
