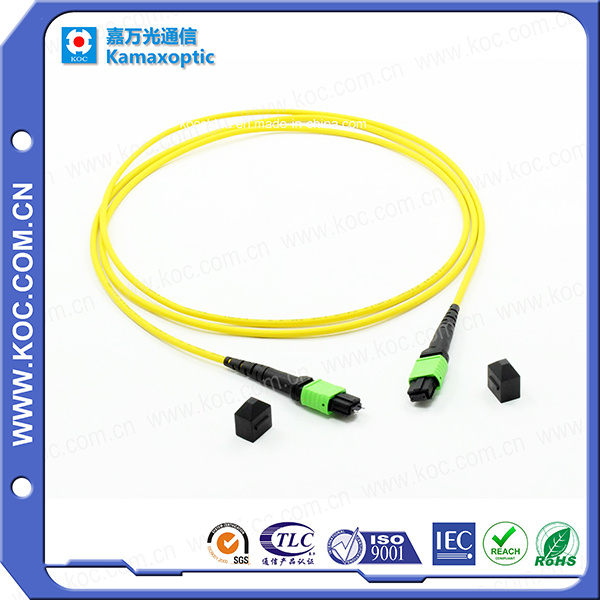

MTP 24f G657A Patch Cord 3m

Name: MTP 24f G657A Patch Cord 3m
Brand: all-electronics-online.com
SKU: 774231935
Availability: InStock
Rating: 4.5 (85 reviews)

Price:	US $ 10/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MTP 24F SM
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
MTP MPO Patch Cord Round 12f:	1m,3m,5m,10m,1.5m
Application:	Communication
Type:	Single-mode Fiber
Certification:	ISO9001
Connection Structure:	MPO , MTP
Brand:	Koc

Product Description

Applications:

CATV , and Multimedia
Telecommunication networks
Active device interface
Telecommunication networks
Gigabit Ethernet
Data processing networks
Interconnection for O/E modules
Premise installations
Optical switch interframe connection
Asynchronous Transmission Mode (ATM)

Specifications:

	Single mode		Multimode
	Standard	Low loss	Standard	Low loss
Insertion Loss	<=0.75dB typical<=0.5dB	<=0.4dB typical<=0.3dB	≤0.5dB typical<=0.35dB	≤0.3dB typical<=0.2dB
Return Loss	≥60 dB (APC)		≥35 dB (PC)
Repeatability	≤0.1dB
Durability	≤0.2 dB typical change, 1000 matings
Interchangeability	≤0.2dB
Tensile strength	>5kg
Operating Temperature	-40 to + 85°C

Ordering Options:

Connector code	Hook Color	Boot Type	Fiber number	Fiber Type	Length
Male	Beige	Bare fiber short	4-fiber	9/125μm (SM)	Customized
Female	Black	Ruggedized ribbon cable	8-fiber	50/125μm (MM)
	Green	Bare fiber long	12-fiber	62.5/125μm (MM)
	Yellow		16-fiber	OM3
			24-fiber	OM4

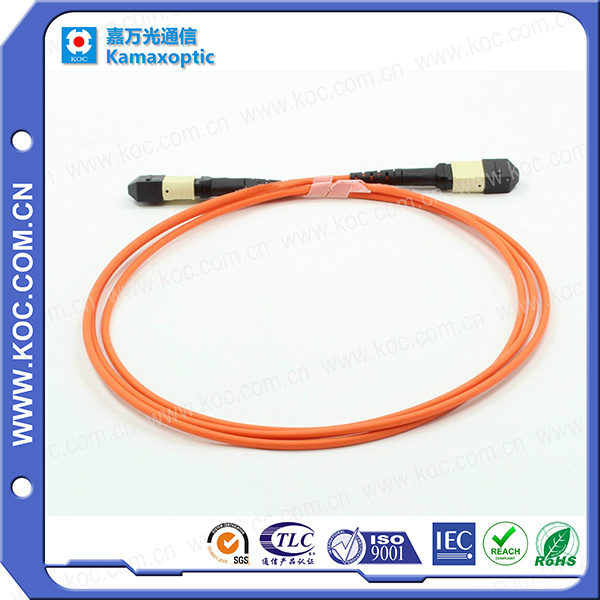

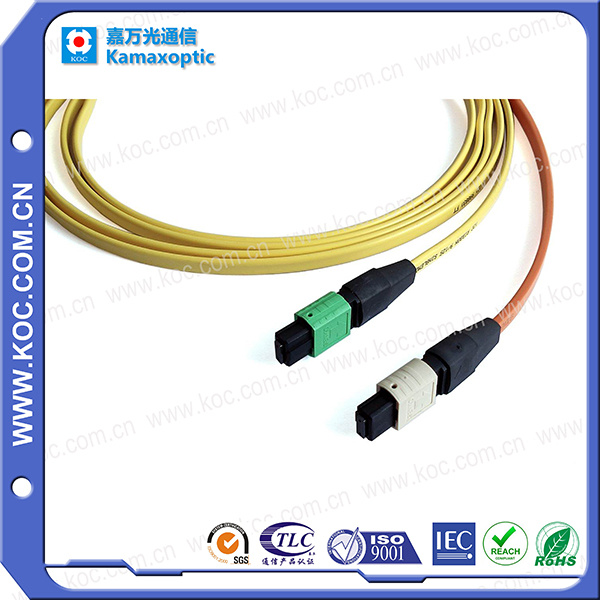

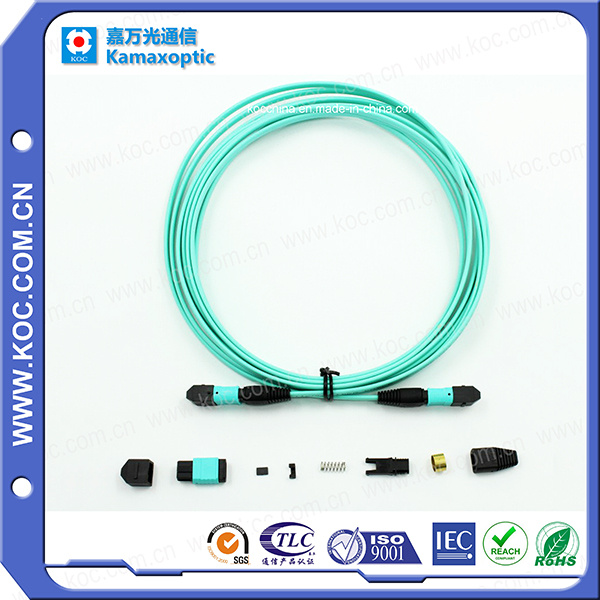

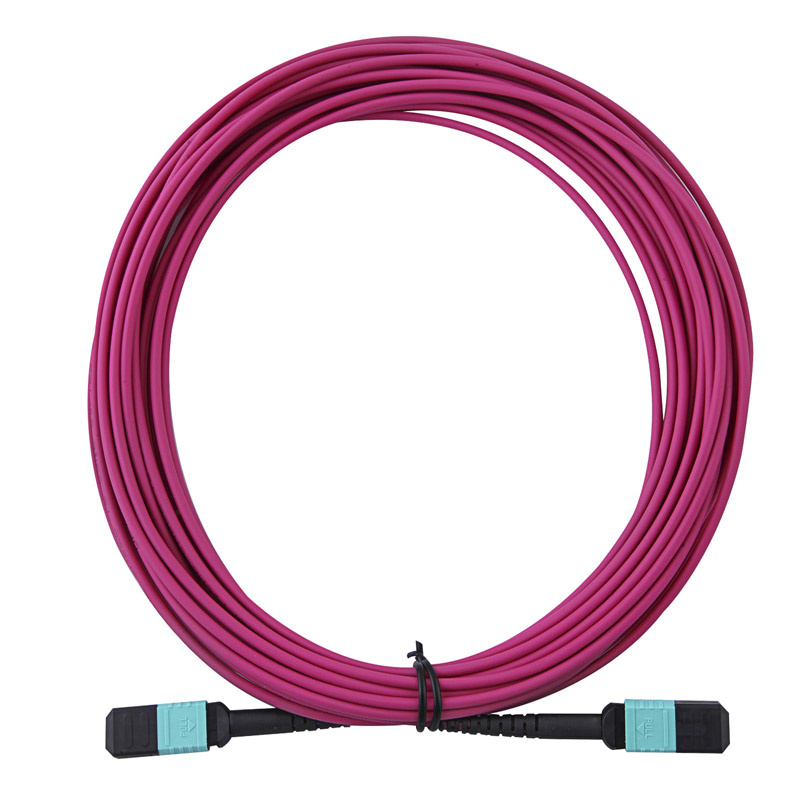

Pictures:

Thank you for viewing!
Please ask if you have any questions!
Welcome to visit our website:www.koc.com.cn

Shenzhen KOC Communication Co., Ltd. Is specialized in fiber optic communication product manufacture. Our products range from the basic components to end products, including passive and active categories as follows: Basic Components: Connector kits, Adapter kits, Attenuator kits.

Passive products: Connector, Adapter, Attenuator, Patch-cord, ODF and enclosure.

Active products: Media converter, Transmitting and receiving assemblies, such as laser diode assembly, PD and PIN/TIA assembly, sub-assemblies such as TOSA, ROSA, BOSA.

FTTH System: Gpon: OLT, ONU, PLC

Headquarter located in Shenzhen, China, we have branch companies, representatives and distributors in Europe, America, Middle East, South Asia. KOC products are well accepted and sold in these areas.

We provide all our products with high quality, competitive price, short delivery lead time and excellent after-sales services.
