MTP MPO Full Flange Black Fiber Optic Adapter

Name: MTP MPO Full Flange Black Fiber Optic Adapter
Brand: all-electronics-online.com
SKU: 725003242
Availability: InStock
Rating: 4.5 (109 reviews)

Price:	US $ 1-2/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PN-003
Connector Type:	MPO MTP
Keyway:	Opposed (Up-Down)
Adapter Port:	Single
Footprint:	Standard
Insertion Loss:	0.2dB
Durability:	0.1dB
Usage:	Data Center
Connection:	Plug In
Output Type:	Fiber
Internal Structure:	Key Up
Power Source:	Fiber
Brand:	PUNO

Product Description

MTP MPO Full Flange Black Fiber Optic Adapter

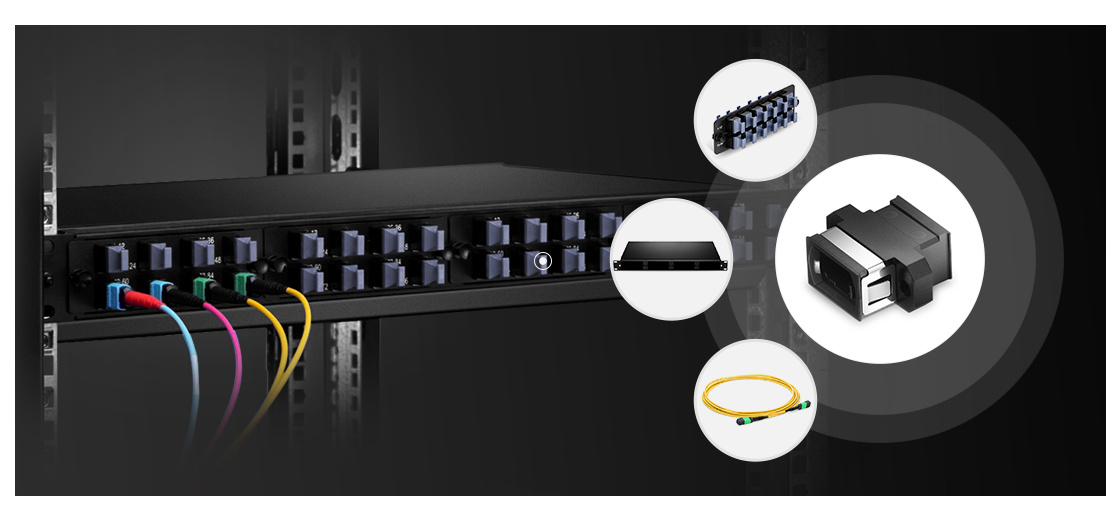

The black colored MTP/MPO adapter has two types as key-up to key-down and key-up to key-up. It provides the connection between cable to cable or cable to equipment in the MTP/MPO style. It works for any MTP Connector from 4 fiber to 72 fiber, widely used in trunk cabling and casettes. This adapter meets appropriate standards and is perfect for your paralell optics and MTP adapter needs.

Products Details:

Connector Type	MPO MTP
Keyway	Opposed (Up-Down)
Adapter Port	Single
Footprint	Standard
Insertion Loss	≤0.2dB
Durability	≤0.1dB
Flammability Rate	UL94-V0
Working Temperature	-25ºC ~ 70°C

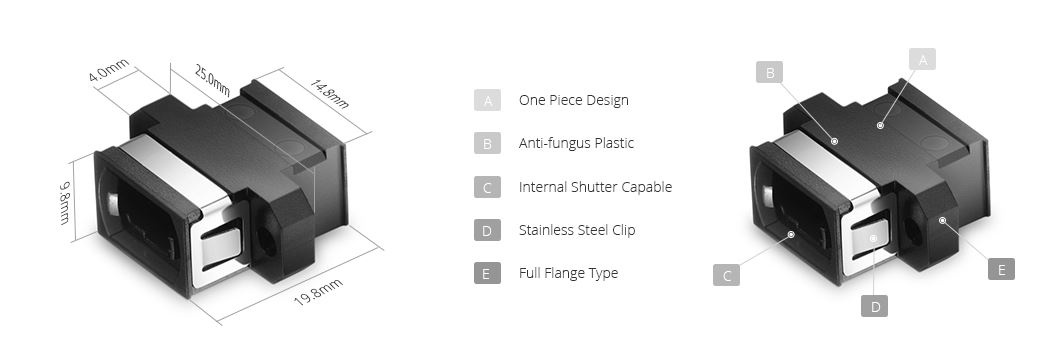

Product Highlights:

√ Compact size and precision design;
√ High-density optical fiber docking;
√ Low insertion loss & good exchangebility.

Puno Optic Technology Co., Limited. Is the Chinese manufacturing company of superior quality, specialized in assembling connectors on optical fiber cable, was created on January 1, 2005 after spending three years as an incubated division, and became the international department to offer products around the world.

Today, PUNO promotes the same original culture that has made us successful over the years. We strive to incorporate the highest level of quality in every product we produce, transaction we complete, and effort we undertake.

MISSION

We work with passion to create faster connections between people, places, ideas and values.

VISION

Representing the excellence and values of Made In China worldwide.

VALUES

Quality, Innovation, Expertise, Flexibility, Collaboration, Commitment, Honesty.

MARKET

Telecomunicazioni - Telecommunications - Data Center - Broadcasting - Military - Sensor - Transportation

EXPERTISE

More than 10 years in the fiber optics field: In 2008 we developed one of the international sales office located in HK, the powerful city in China.

PARTNERSHIP

China Mobile, China Union, China Telecom, Huawei, Foxconn.
