| Prod Model: |
MTP/MPO |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
MTP/MPO Trunk Cable |
| Connector: |
MTP/MPO |
| Jacket Od: |
3.0mm |
| Fiber Category: |
50/125um mm (Om3) |
| Gender: |
Male/Female |
| Fiber Count: |
12/24 Core |
| Test Wavelength: |
850nm |
| Insertion Loss: |
<0.35dB |
| Return Loss: |
>20dB |
| Outer Jacket Color: |
Aqua |
| Application: |
Probe |
| Type: |
Multi-mode Fiber |
| Certification: |
CCC |
| Connection Structure: |
MTP/MPO |
Product Description

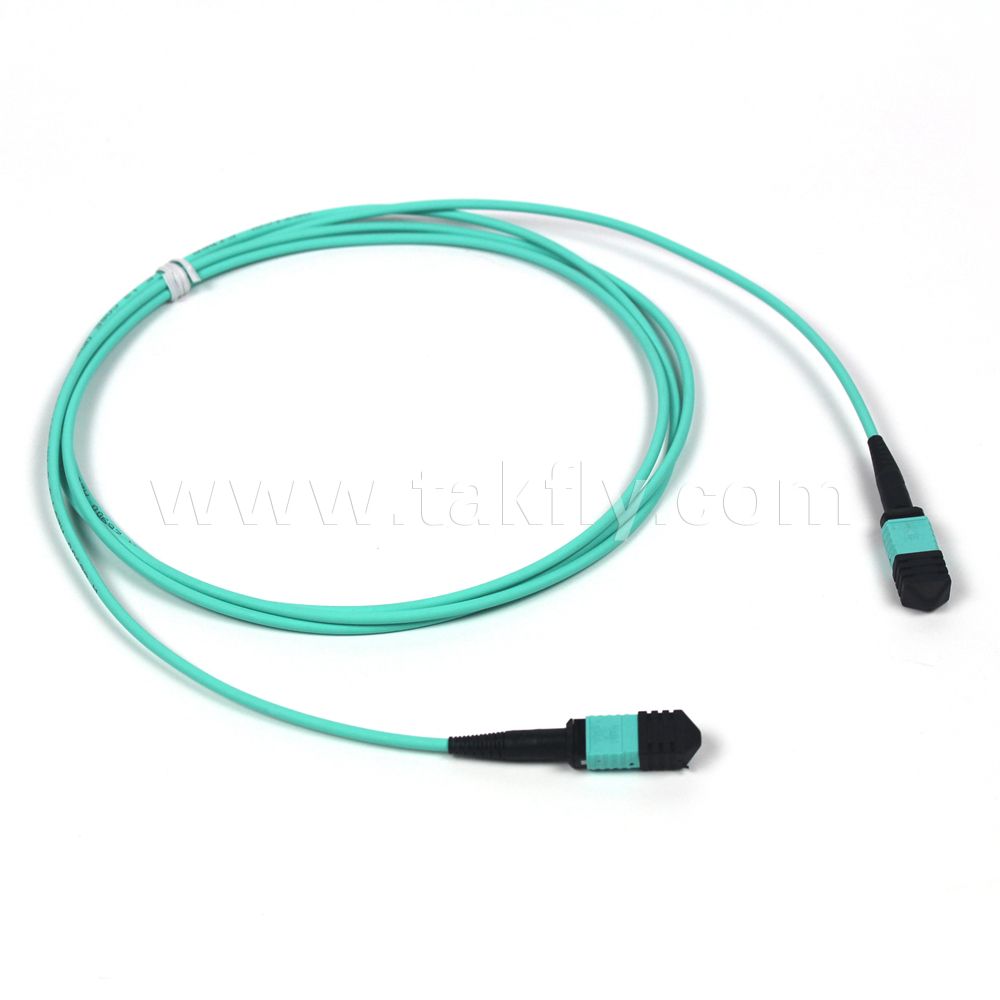

MTP/MPO to MTP/MPO 12 Fibers 10G OM3 50/125 Trunk Cable
Specifications
| Connector | MTP to MTP | Jacket OD | 3.0 mm |
| Fiber Category | 50/125μm MM (OM3) | Gender | Female to Female |
| Fiber Count | 12 | Test Wavelength | 850nm |
| Insertion Loss | ≤0.35dB | Return Loss | ≥20dB |
| Polarity | Type B (Full-Flipped) | Durability | ≥500 times |
| Operating temperature | -40 ~ 80°C | Fiber Grade | G651 |
| Flame Rating | LSZH | Outer Jacket Color | Aqua |
Features and Benefits
| Eliminate termination errors, Min installation timeEach cable is 100% tested for low insertion loss and back reflectionOptimized performance - Elite MTP and discrete premium connectorSupport 40GBASE-SR4 in applicable parallel optics networksCompliant to IEC-61754-7 and TIA-604-5(FOCIS-5) standard |
How to Choose The Right Fiber Optic Cable Type?
PS: The difference of OM4 and OM3 fiber mode as the following
1. OM4 was developed specifically for VCSEL laser transmission and allows 10 Gig / second link distances of up to 550 Meters (compared to 300M with OM3).
2. The effective modal bandwidth for OM4 is more than double that of OM3.
3. For OM4 patch cable it is 4700 MHz.km while for OM3 it is 2000 MHz.km.
| Designation | Fiber Dia.(μm) | Type | 10Gbps Ethernet 10GBASE SR/LR | 40Gbps Ethernet 40GBASE SR4/PLRL4 | 100Gbps Ethernet 100GBASE SR10/IR4 |
| OM1 | 62.5/125 | Multimode | 33 Meters (SR) | Not supported | Not supported |
| OM2 | 50/125 | Multimode | 82 Meters (SR) | Not supported | Not supported |
| OM3 (Laser Optimized) | 50/125 | Multimode | 300 Meters (SR) | 100 Meters (SR4) | 100 Meters (SR10) |
| OM4 (Laser Optimized) | 50/125 | Multimode | 400 Meters (SR) | 150 Meters (SR4) | 150 Meters (SR10) |
| Singlemode | 9/125 | Singlemode | 10KM at 1310nm (LR) | 1KM (PLRL4) | 2KM (IR4 PSM) |
