Mulitlayer PCB 4 Layer Copper-Clad Laminate Fr4
| Price: |
US $ 1.89/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-177-V1.77 |
| Final Foil External: |
1 Oz |
| Final Height Of PCB: |
1.6mm |
| Surface Finish: |
Hot Air Soldering Leveling(HASL) |
| Solder Mask Color: |
Gloss Green, Taiyo Psr-2000gt600d |
| Colour Of Component Legend: |
White, Ijr-4000 MW300, Taiyo Supplied. |
| Minimum Trace And Space: |
5.4 Mil/5.4 Mil |
| Minimum / Maximum Holes: |
2.1mm /3.2mm |
| Test: |
100% Electrical Test Prior Shipment |
| Via: |
Plated Through Hole(Pth) |
| Acceptable Files Format: |
Gerber RS-274-X and Pcbdoc |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description
High Temperature Prototype PCB Fabrication ISO14001 Manufacturing Facilities 1.6mm 1 oz HASL Applied In Modem GPRS
Commodity IntroductionThis is a type of FR-4 PCB for the application of Modem GPRS
. It's a 4 Layer board at 1.6mm thick.The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Class 2 using sup

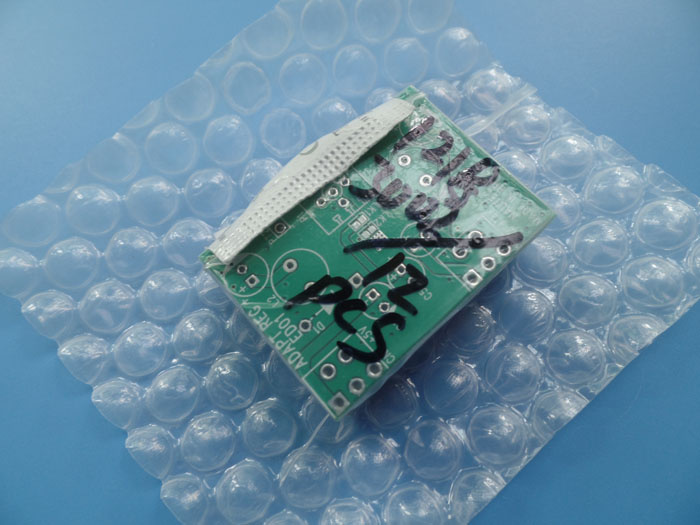

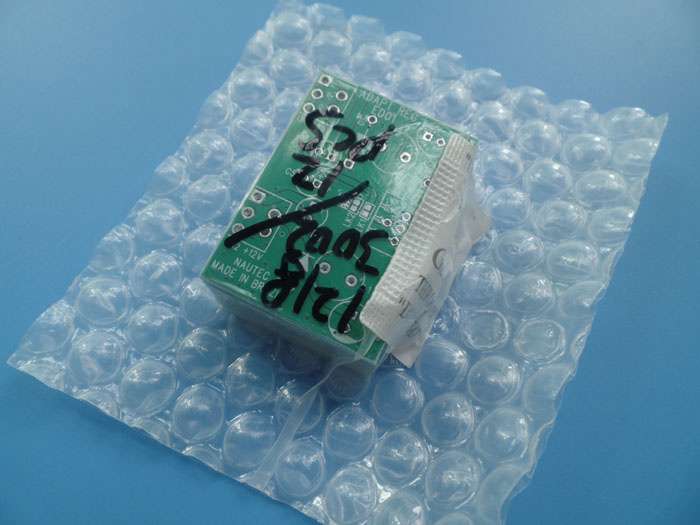

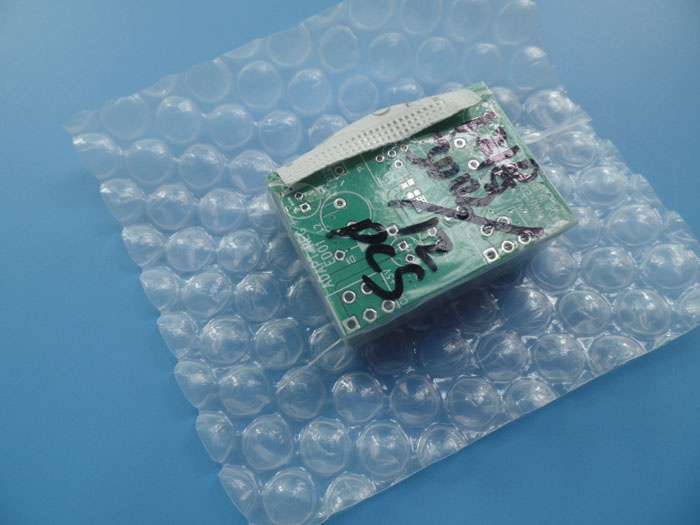

-plied Gerber data. Each 10 boards or panels are packed separately.
Parameters & Data Sheet| PCB SIZE | 32 x 45mm=1PCS |
| BOARD TYPE | |
| Number of Layers | Multilayer PCB, 4 Layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | YES |
| LAYER STACKUP | copper ------- 17.5 um(0.5 oz)+plate TOP layer |
| Prepreg 7628 0.195mm |
| copper ------- 35 um(1 oz) MidLayer 1 |
| FR-4 1.0mm |
| copper ------- 35 um(1 oz) MidLayer 2 |
| Prepreg 7628 0.195mm |
| copper ------- 17.5 um(0.5 oz)+plate BOT Layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 5.4 mil/5.4 mil |
| Minimum / Maximum Holes: | 2.1mm /3.2mm |
| Number of Different Holes: | 7 |
| Number of Drill Holes: | 846 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | no |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4, ITEQ IT-180 TG>170, er<5.4 |
| Final foil external: | 1 oz |
| Final foil internal: | 1 oz |
| Final height of PCB: | 1.6mm ±0.16 |
| PLATING AND COATING | |
| Surface Finish | Hot Air Soldering Leveling(HASL), Sn>=2.54µm |
| Solder Mask Apply To: | Top and Bottom, 12micron Minimum |
| Solder Mask Color: | Gloss Green, Taiyo PSR-2000GT600D |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White, IJR-4000 MW300, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and leged FREE AREA |
| VIA | Plated Through Hole(PTH) |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Modem GPRS
Power Supply AC
3G Router WIFI
Variable AC Power Supply
Router Wifi USB
Cellular Router |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
The Advantage of 4layer PCB from Bicheng Company1. ITEQ IT-180: Lead-Free Assembly Compatible, RoHS compliant and suitable for high thermal
reliability needs, and Lead free assemblies with a maximum reflow temperature of 260ºC2. HASL has: Excellent wetting during component soldering and it can avoid copper corrosion.

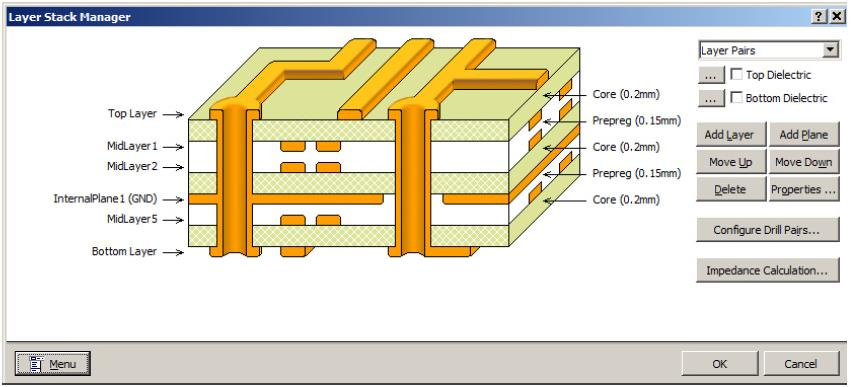

3. Multilayer PCB Stackup: .062" Finished ThicknessThis is reference layer stackup. The stackup of multilayer PCB's can be reached in many different ways.
Green PCBHuman beings have only one earth. Caring for the entire ecological environment and our lives are closely
related. Fresh work environment and sewage recycling are our responsibility.
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
