Mulitlayer PCB 4 Layer Onstatic Green Soldermask with HASL
| Price: |
US $ 0.65/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-389-V3.89 |
| Surface Finish: |
Lead Free HASL |
| Board Thick: |
1.718mm |
| Surface Cu Thickness: |
36.3 Um |
| Solder Mask Color: |
Green |
| Legend Color: |
White |
| Trace Width(mm): |
0.106mm |
| Spacing (mm): |
0.098mm |
| Warp and Twist: |
0.23% |
| V-Cut Thickness: |
0.43mm |
| Electrioal Test: |
100%Pass |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description
Green Soldermask Mulitlayer PCB 4 Layer 1oz copper with HASL Lead Free
Commodity Introduction

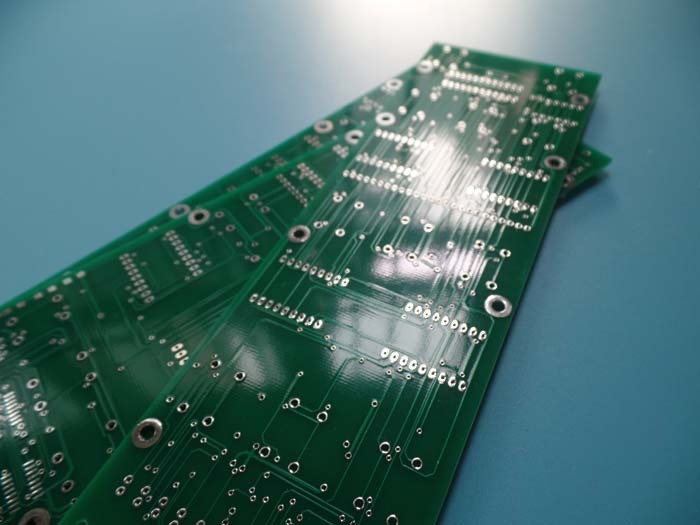

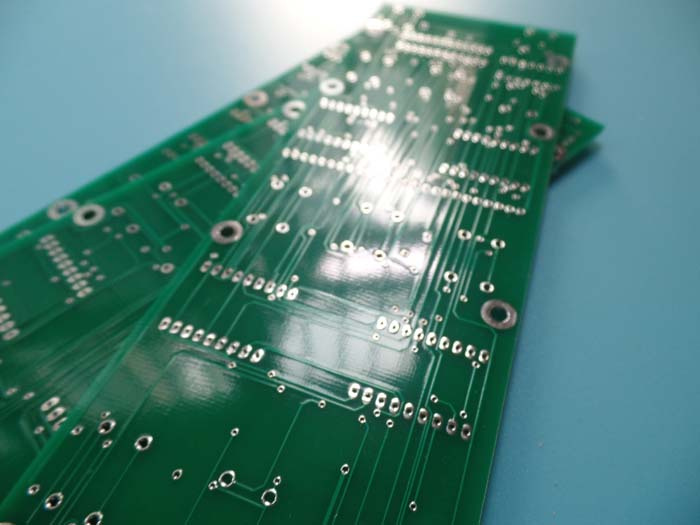

This is a type of FR-4 PCB for the application of CODEC. It's a 4 layer board at 1.718mm thick.
The base laminate is from Shengyi , Solder mask and silkscreen from Onstatic and Taiyo. It's
fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are
packed separately.
Parameters & Data Sheet| Item | Description | Requirement | Actual |
|
| Laminate | Laminate Type | FR4:CTI:175V-249V | FR4:CTI:175V-249V |
| Supplier | SHENGYI | SHENGYI |
| Tg | TG >135 | TG >135 |
| Finished thickness | 1.6+/--10% MM | 1.718 MM |
| Plating Thickness | PTH Cu thickness | 23 um | 25.03um |
| Inner layer Cu Thickness | 1/1 OZ | 1/1 OZ |
| Surface Cu thickness | 35 um | 36.3um |
| Solder Mask | Material type | R-500 4KH | R-500 4KH |
| Supplier | Onstatic | Onstatic |
| Color | Green | Green |
| Single / both sides | Both Sides | Both Sides |
| S/M thickness | >+ 10.0 um | 26.67 um |
| 3M tape test | NO Peel Off | no peel off |
| Legend | Material type | S-380W | S-380w |
| Supplier | Tai yo | Tai yo |
| Color | White | White |
| Location | Both Sides | Both Sides |
| 3M tape test | No peel off | no peel off |
| Circuit | Trace Width (mm) | 0.1+/-20%mm | 0.106mm |
| Spacing (mm) | 0.101+/- 20%mm | 0.098 mm |
| Identification | UL mark | YES | OK |
| Company Logo | YES | OK |
| Date code | WWYY | WWYY |
| Mark location | NA | OK |
| Surface Finish | Lead- free HASL | 1-40 um | 5.98 um |
| Reliabilty Tests | Thermal shock test | 288±5ºC, 10sec ,3 cycles | NO Discolor , NO
Delamination |
| solder abllity test | 245±5ºC | 100% wetting |
| Function | Electrioal Test | 100% | pass |
| Standard | IPC-A 600H class 2,
IPC_6012C CLASS 2 | | 100% | Pass |
| Appearance | Visual inspection | 100% | Pass |
| warp and twist | <= 0.75% | 0.23% |
| Others | V-Cut thickness | 0.4±0.1 mm | 0.43mm |
| Angle | 30+/- 5 | 30º |
Bicheng PCB, the quality is more stable.
10-year gold medal customers recommend you to use Bicheng PCB.1. Codec Tieline has won numerous awards for innovation in technology and thousands of customers around the world rely on reliable broadcast solutions. High quality circuit board is
indispensable. 2. Telemetry UHS supplies innovative products and solutions to enable the transport of diverse telecommunications products over broadband networks. A stable and good printed circuit board
plays an important role.
Don't just take our word for it. Read what Richard and Olaf have to say about Bicheng PCB.
"Kevin,
Received and tested the boards - thanks very much. These are perfect, exactly what we needed.
Rgds
Rich "
"Hi Ruth,
I got the PCB today, and they are just perfect. Thank you for that.
I will memory your for my next PCB order. Please stay a little patience, my next order is coming
soon.
Kind regards from Hambur
Olaf "
Email us today, we'll respond you within 8 hours. Still slow, take a phone and call us today.
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
