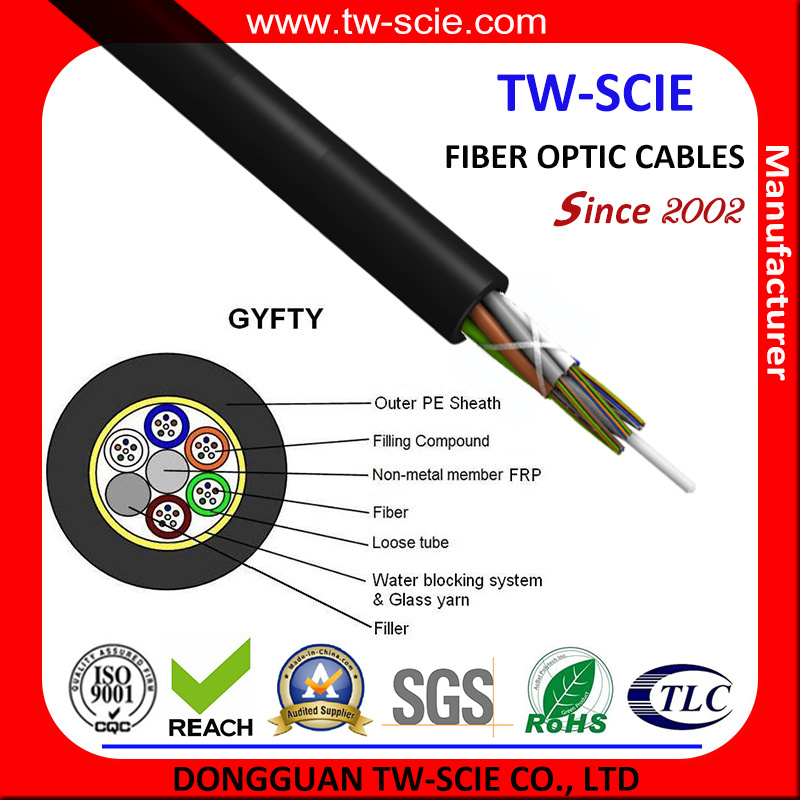

Multi Core 2-144f Aerial Fiber Optic Cable

Name: Multi Core 2-144f Aerial Fiber Optic Cable
Brand: all-electronics-online.com
SKU: 740570415
Availability: InStock
Rating: 4.7 (48 reviews)

Price:	US $ 10/Meter
Trade Terms:	FOB
Min Order:	2000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYFTY
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Outer Sheath Color:	Black
Central Stranding Member:	Steel Wire or FRP
Installation Style:	Aerial
Waterblocking Material:	Water Blocking Tape or Filling Compound
Brand Name Of Fiber:	Corning, Yofc, Draka, Fujikura
Second Armour Material:	Corrugated Aluminium Tape
Brand Name:	Tw-Scie Fiber Optic Cable or as Required
Application:	Communication
Type:	Single-mode Fiber

Product Description

Multi core 2-144F Aerial Fiber Optic Cable

Specifications

1.27 years experience
2. ISO9001,ISO14001
3.IEC60794,IEC60793
4.Mini. Order: 1000meters
5.FOB price:$0.1-9/meter

Characteristics of product:
1.small diameter, lighter and softness;
2.reasoning designation,excellent water-blocking performance;
3.FRP as non-metallic strength member;
4.good electromagnetism resistance ability.
Applications:
aerial,duct,leading in,etc;
strong electromagnetism environment;
areas with lightning strike.
Temperature:
operating temperature:-40°C~+70°C
Standards:
IEC811,IEC60794,IEC60793
Optional:
1.the structure diameter can be designed for customers;
2.to design flame resistance, anti-rodent, anti-ant cable according to the customers' demands.

3.fiber: G.652,G.655

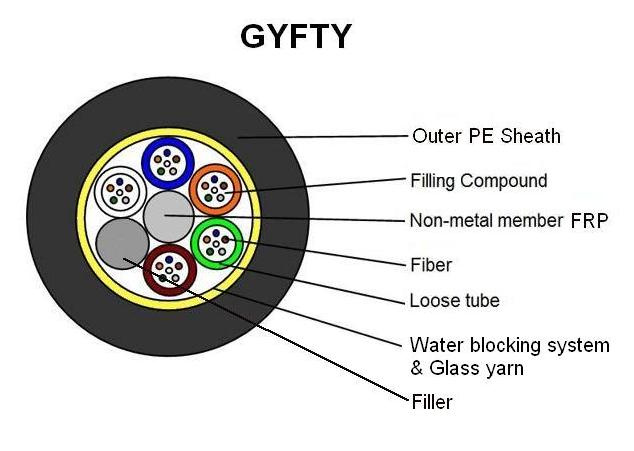

structural parameters:

fiber count	nominal diameter (mm)	nominal weight (kg/km)	permitted tensile LT/ST(N)	permitted crush LC/SC (N)	bend radius static state/dynamic state (mm)
2-42	11.2	99	600/1500	300/1000	10D/20D
48-72	12	115	600/1500	300/1000	10D/20D
74-84	13	140	600/1500	300/1000	10D/20D
86-96	13.9	151	600/1500	300/1000	10D/20D
98-108	14.2	168	600/1500	300/1000	10D/20D
110-120	15.3	183	600/1500	300/1000	10D/20D
122-132	16	195	600/1500	300/1000	10D/20D
134-144	16.8	210	600/1500	300/1000	10D/20D

DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication

Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.

The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.

The main products of our enterprise are:

Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.

All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
