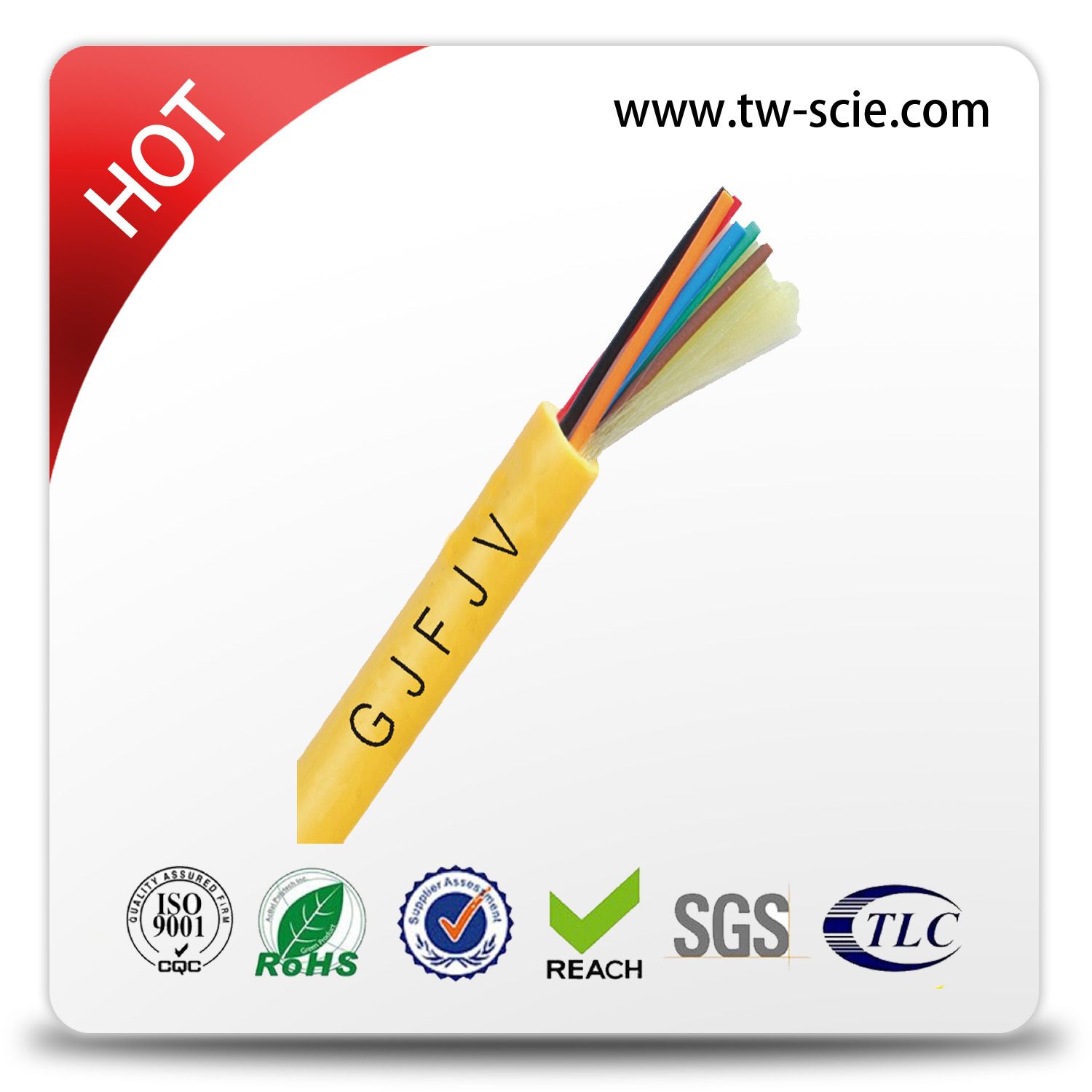

Multi Core Om3 Yellow Fiber Optic Distribution Cable with PVC Sheath

Name: Multi Core Om3 Yellow Fiber Optic Distribution Cable with PVC Sheath
Brand: all-electronics-online.com
SKU: 809421415
Availability: InStock
Rating: 5 (104 reviews)

Price:	US $ 1.33/Meter
Min Order:	1/Meter
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Fiber Optic Distribution Cable
Application:	Indoor Cable
Certification:	Reach
Type:	Single More or Multimode
Connection Structure:	Glass Fiber
Brand:	OEM or Tw-Scie

Product Description

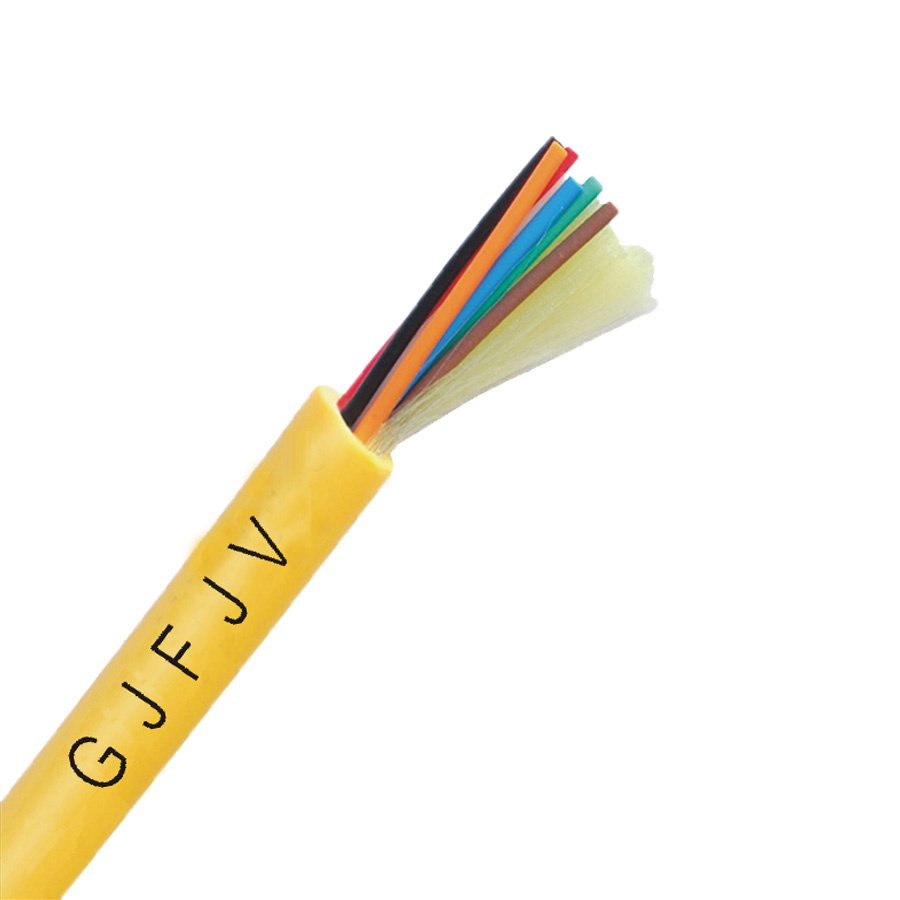

Duplex/Simplex OM3 Yellow Fiber Optic Distribution Cable with PVC Sheath

Excellent characteristics, content with different requirement indoor, Include: buildings,lift well,FTTD. It can supply bandwidth, transmission speech,data,TV and image. Characteristic: small diameter,light

weight,flexibility. So it Is easy to installation,maintenance and manage.

1.Characteristic

.Excellent stripping performance of tight buffer fiber

Cable diameter and bending radius small,

. It can installation freely in narrow room.

2.Geometrical Characteristics

Distribution Cable Type	2	4	6	8	12	24
Distribution Cable Diameter(mm)	5.00	5.10	5.30	6.00	6.60	8.50
Distribution Cable Weight(kg/km)	20	20	22	25	28	50
TBF Diameter(μm)	900±50

3.Mechanical Characteristics

Max Load(N)	Long Term	130	130	130	130	130	200
Max Load(N)	Short Term	440	440	440	440	440	660
Bending Radius(CM)	Dynamic	20×D (D: Cable Diameter)
Bending Radius(CM)	Static	10×D (D: Cable Diameter)

4.Fiber

Fiber Type(core/cladding dimension)

8.3/125, 50/125, 62.5/125

5.Transmission Characteristics

	SMF	50/125	62.5/125
	1310/1550(nm)	850/1300(nm)	850/1300(nm)
Max Attenuation(dB/km)	0.45/0.30	3.5/1.5	3.5/1.5
AVG. Attenuation(dB/km)	0.40/0.25	3.0/1.0	3.0/1.0
Min Bandwidth(MHz·km)	--	400/400	160/500

6.Environmental Characteristics

Storage Operating Temperature

-20ºC~+60ºC

DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication

Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.

The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.

The main products of our enterprise are:

Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.

All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
