Multi-Cores Outdoor Fiber Optic Patch Cord GYTA/GYTS/GYXTW/Pdlc

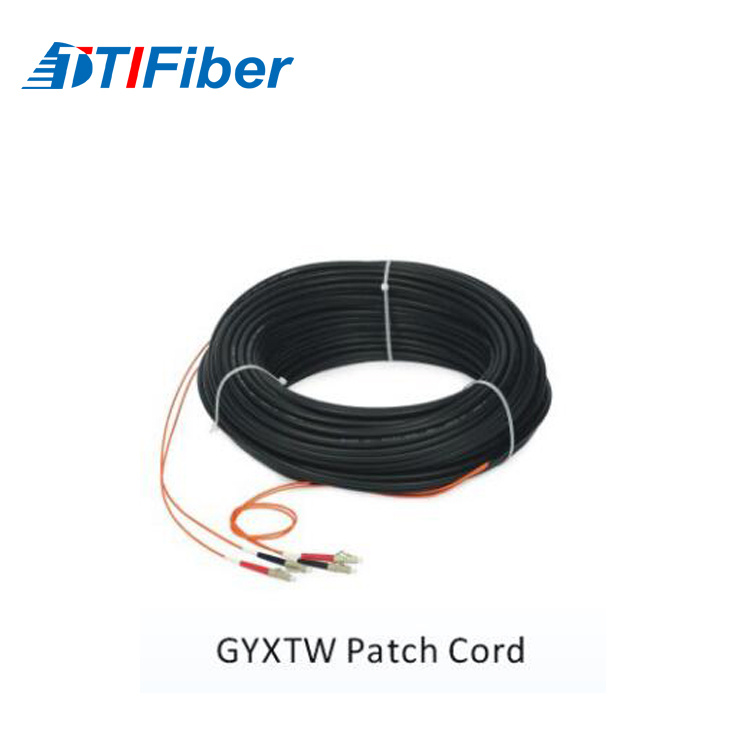

Name: Multi-Cores Outdoor Fiber Optic Patch Cord GYTA/GYTS/GYXTW/Pdlc
Brand: all-electronics-online.com
SKU: 826889625
Availability: InStock
Rating: 4.9 (98 reviews)

Price:	US $ 0.3-5/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Certification:	ISO9001
Brand:	Tti
Sheath Material:	PVC or LSZH

Product Description

High Quality Outdoor fiber optic patch cord

Feature

Good mechanical performance

Good ultra violet resistant property

GYXTW,GYTA,GYTS,GYTA53 etc,available

Low insertion loss, high return loss
Good compatibility
High precision of mechanical dimensions
High reliability & stability
PC, APC, UPC optional, cable length optional
Options available for cable colors

Application

Long distance

LAN communication

Outdoor communication

Gigabit Ethernet;

Active device termination;

Telecommunication networks; Video

Multimedia; Premise installations;

Local area networks; FTTH FTTX applications;CATV.

Specifications

1.SC,LC,FC,ST,MU,MTRJ,D4,DIP,E2000
2.0.9mm / 2.0mm / 3.0mm
3.SM/MM SX/DX
4.Cable material:PVC
5.1.MM,3MM.5MM...

Pigtail Connector	PC (SM)	UPC (SM)	APC (SM)	MM
Return Loss (dB)	≥45	≥50	≥60	≥35
Insertion Loss (dB)	≤0.2 (max≤0.3)
Repeatability (dB)	≤0.1
Durability(1/Matings)	≥500
Operation Temperature (°C)	-25~+70
Tensile Strength (N)	≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9
Fiber	9/125um, 50/125um,62.5/125um,ect
diameter	0.9mm 2.0mm, 3.0mm etc
Cable material	PVC, LSZH
Cores	Simplex, duplex, 4cores, 6cores, 8cores, 12cores etc

Shenzhen TRT Fiber Tech. Co., Ltd is specialized in R&D, manufacturing and marketing of fiber optic such as fiber optic cable, fiber optic patch cord/jumper, fiber pigtail, fiber connector, fiber adapter, fiber attenuator, fiber patch panel, ODF, fiber splice closure and other related fiber products.

With a powerful R&D team, TRT Fiber is able to manufacture products according to customer's specifications and requests, even with customized raw materials. We not only offer OEM service, but also help many partners from all over the world to win in the market with professional technical support, excellent product solution, competitive prices, fast delivery and good service. We ensure every piece of our fiber optic products is with excellent performance and appearance.

TRT has been putting a lot of investments to keep pace with fiber optic industry standard. With high quality raw materials, advanced manufacturing equipments and highly skilled workers, we ensure every piece of our fiber optic products is with excellent performance and appearance.

Welcome to be TRT business partners, we are sure to bring you more profits. Thank you.
