Multi Mode Duct Fiber Optic Cable FRP Strength Member 12 Core Optical Fiber Cable
| Price: |
US $ 0.25/Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
2000/Meter |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
Armored Duct Cable GYTA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Fiber Brand: |
Corning, Ofs, J-Fiber, Fiberhome, Yofc |
| Strength Member: |
FRP, Kfrp |
| Fiber Type: |
Single Mode and Multi Mode |
| Loose Tube: |
PBT |
| Filling Material: |
Jerry |
| Loose Tube Color: |
Orange,Green , Brown,Red etc |
| Armored Member: |
Steel Tape or Aluminum Tape |
| Fiber Count: |
2-144c |
| Core Moisture Protection Methodology: |
Water Blocking Tape or Filling Compound |
| Installation: |
Indoor and Outdoor Cabling |
| Application: |
Communication |
| Certification: |
ISO9001 |
| Type: |
Fiber Cable Factory |
| Connection Structure: |
Duct Cable |
| Allowed Lateral Pressure: |
Short Term 1000n; Long Term 300n |
| Allowed Tensile Strength: |
Short Term 1500n; Long Term 600n |
| Core: |
12 Core |
| Sheath Material: |
MDPE / HDPE / LSZH PE |
Product Description
Multi Mode Duct Fiber Optic Cable FRP Strength Member 12 Core Optical Fiber Cable
Cable Description

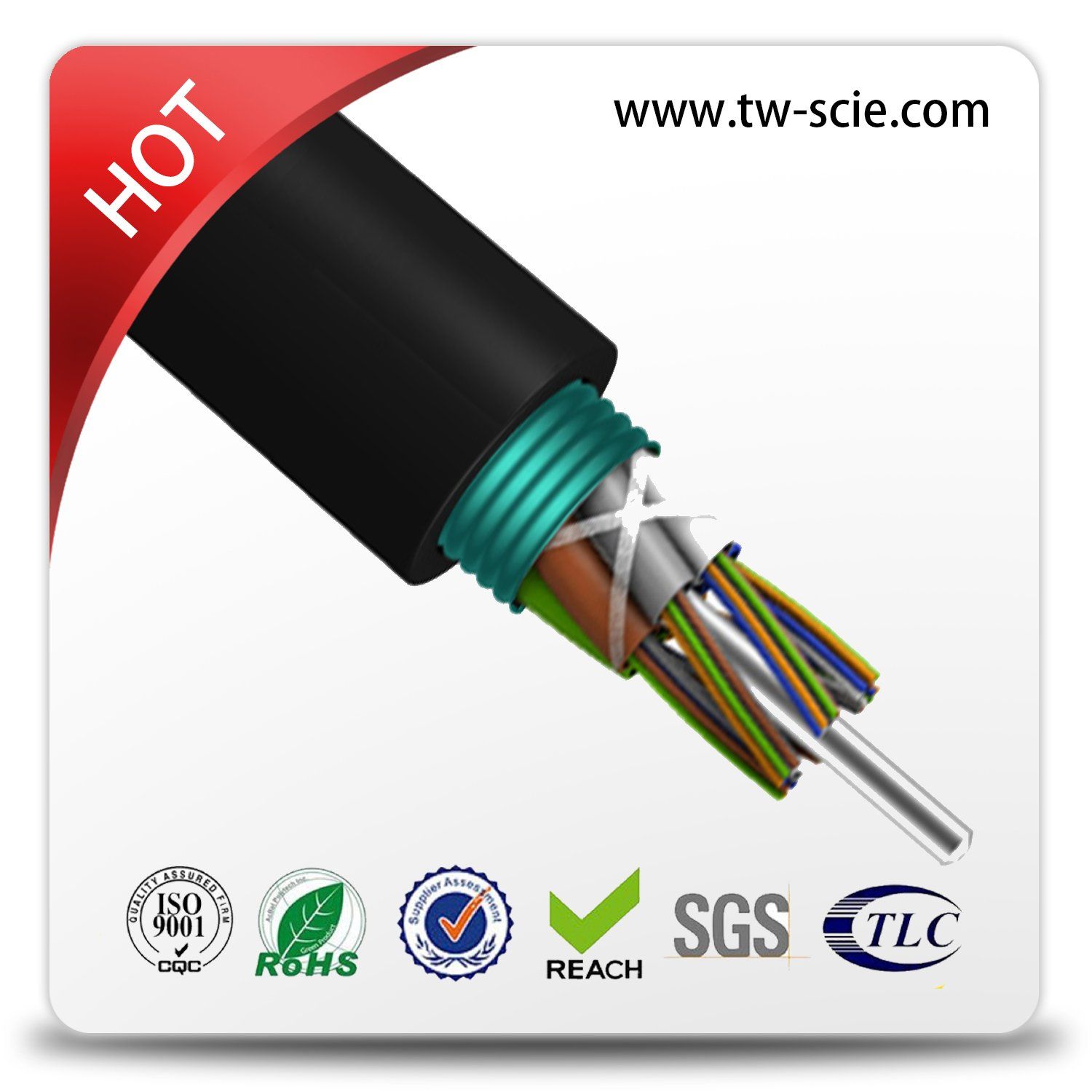

The fibers, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. FRP, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a non-metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The cable core is filled with the filling compound to protect it from water ingress, over which a thin PE inner sheath is applied. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.
Application
1. Adopted to ourdoor distribution;
2. Suitable for aerial, duct and direct buried;
3. Long distance and local area network communication.
Characteristics
1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant
3. Special tube filling compound ensure a critical protection of fiber
4. Crush resistance and flexibility
5. The following measures are taken to ensure the cable watertight:
6. Steel wire used as the central strength member
7. Loose tube filling compound and 100% cable core filling
8. APL moisture barrier
9. PSP enhancing moisture-proof
10. Water-blocking material
Cable construction details
| Items | Description | | Number of fiber | 2-144cores | | Fiber | type | SM (G652D, G657A, G657B); MM (OM1, OM2, OM3, OM4) | | diameter | 250µm | | Strength member | materia | FRP / KFRP | Self support
Messenger wire | material | / | | diameter | / | | Outer sheath | material | PE / LSZH | | diameter | 10~14.5MM | | Cable size (Height * width) | / | | Cable weight | 115~245KG±1KG | | Installation Temperature range(ºC) | -20+60 | | Operation and transport temperature(ºC) | -40+70 | | Min Bending Radius(mm) | Long term | 15D | Min Bending
Radius(mm) | Short term | 30D | Min allowable
Tensile Strength(N) | Long term | 600 | Min allowable
Tensile Strength(N) | Short term | 1500 | | Crush Load (N/100mm) | Long term | 500 | | Crush Load (N/100mm) | short term | 1000 |
Fiber characteristic
| Fiber style | Unit | SM
G652 | SM
G652D | MM
50/125 | MM
62.5/125 | MM
OM3-300 | | condition | nm | 1310/1550 | 1310/1550 | 850/1300 | 850/1300 | 850/1300 | | attenuation | dB/km | ≤ | ≤ | ≤ | ≤3.0/1.0 | ≤3.0/1.0 | | 0.36/0.23 | 0.34/0.22 | 3.0/1.0 | ---- | ---- | | Dispresion | 1550nm | Ps/(nm*km) | ---- | ≤18 | ---- | ---- | Dispresion | | 1625nm | Ps/(nm*km) | ---- | ≤22 | ---- | ---- | | | Bandwith | 850nm | MHZ.KM | ---- | ---- | >=400 | >=160 | Bandwith | | 1300nm | MHZ.KM | ---- | ---- | >=800 | >=500 | | | Zero dispersion wavelength | nm | 1300-1324 | >=1302,
≤1322 | ---- | ---- | >= 1295,
≤1320 | | Zero dispresion slope | nm | ≤0.092 | ≤0.091 | ---- | ---- | ---- | | PMD Maximum Individual Fibr | | ≤0.2 | ≤0.2 | ---- | ---- | ≤0.11 | | PMD Design Link Value | Ps(nm2*k
m) | ≤0.12 | ≤0.08 | ---- | ---- | ---- | | Fibre cutoff wavelength λc | nm | >= 1180,
≤1330 | >=1180,
≤1330 | ---- | ---- | ---- | Cable sutoff
wavelength λcc | nm | ≤1260 | ≤1260 | ---- | ---- | ---- | | MFD | 1310nm | um | 9.2+/-0.4 | 9.2+/-0.4 | ---- | ---- | ---- | | 1550nm | um | 10.4+/-0.8 | 10.4+/-0.8 | ---- | ---- | ---- | Numerical
Aperture(NA) | | ---- | ---- | 0.200+/
-0.015 | 0.275+/-0.
015 | 0.200+/-0
.015 | Step(mean of bidirectional
measurement) | dB | ≤0.05 | ≤0.05 | ≤0.10 | ≤0.10 | ≤0.10 | Irregularities over fiber
length and point | dB | ≤0.05 | ≤0.05 | ≤0.10 | ≤0.10 | ≤0.10 | | | | | | | | | | | Dicontinuity | Difference backscatter
coefficient | dB/km | ≤0.05 | ≤0.03 | ≤0.08 | ≤0.10 | ≤0.08 | | Attenuation uniformity | dB/km | ≤0.01 | ≤0.01 | | | | | Core dimater | um | | | 50+/-1.0 | 62.5+/-2.5 | 50+/-1.0 | | Cladding diameter | um | 125.0+/-0.1 | 125.0+/-0.1 | 125.0+/-0.1 | 125.0+/-0.1 | 125.0+/-0.1 | | Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | | Coating diameter | um | 242+/-7 | 242+/-7 | 242+/-7 | 242+/-7 | 242+/-7 | Coating/chaffinch
concentrically error | um | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | | Coating non circularity | % | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | | Core/cladding conentricity error | um | ≤0.6 | ≤0.6 | ≤1.5 | ≤1.5 | ≤1.5 | | Curl(radius) | um | ≤4 | ≤4 | ---- | ---- | ---- |
|
Package

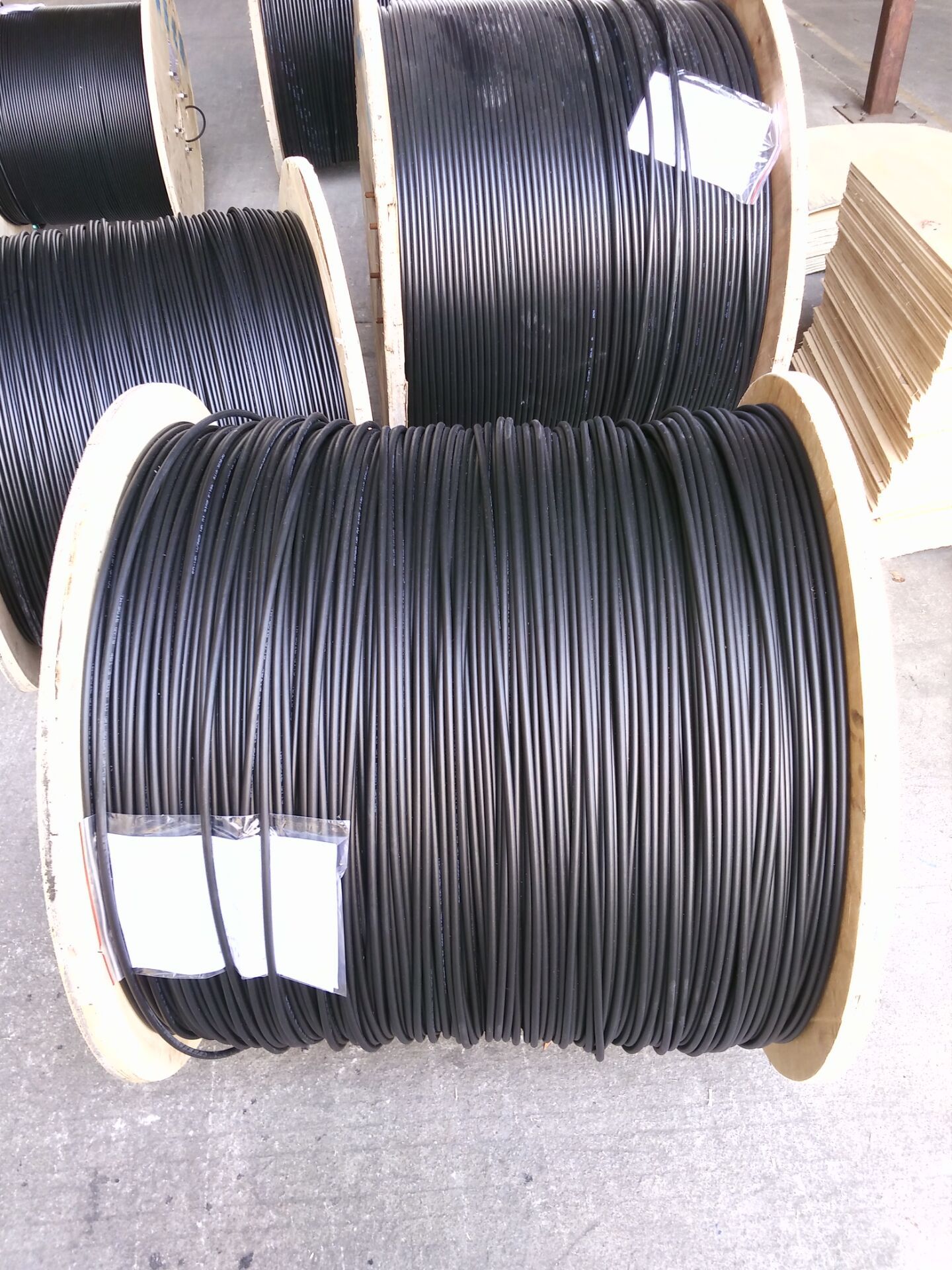

1. Packing material: Wooden drum
2. Packing length: standard length of cable shall be 2 km. Other cable length is also available if required by customers.
Cable marking and cable reel marking
The cable sheath shall be marked according to customer's requirement.
