Name: Multi-Mode Fiber GYTA Outdoor Stranded Type Optical Fiber Cable for Network
Brand: all-electronics-online.com
SKU: 727405562
Availability: InStock
Rating: 4.8 (86 reviews)

Price:	Negotiable/Meter
Min Order:	2000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYTA
Application:	Communication
Type:	Multi-mode Fiber
Connection Structure:	SC-SC
Certification:	Tlc
Brand:	Dumei
Sheath Material:	PE

Product Description

Multi-Mode Fiber GYTA Outdoor Stranded Type Optical Fiber Cable for Network

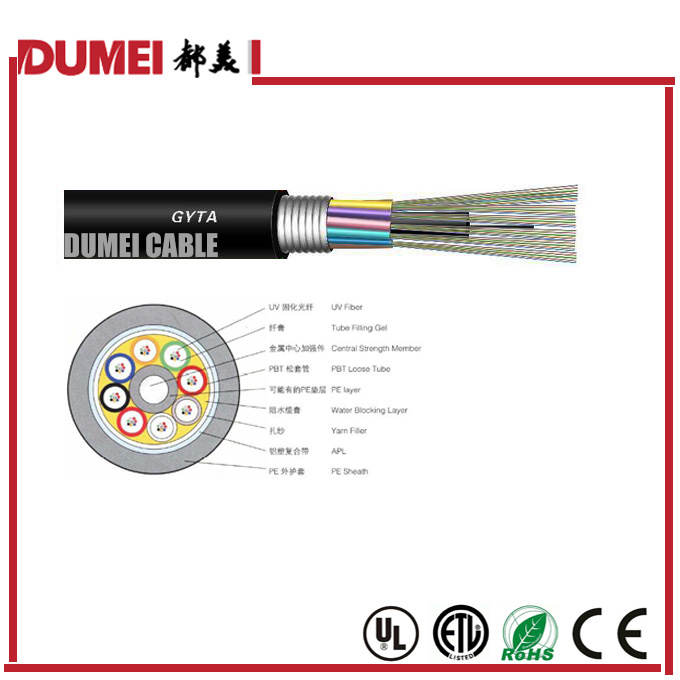

Cable Type:GYTA
Tube Type Optical Fiber
Central Strength Member
SZ layer stranded fiber filling with special filling Compound
Double APL adheres tightly with PE Sheath

Description
The fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress. Then, the cable is completed with a PE sheath.

Application:
1,Long distance and local area network
2,Suitable for aerial pipeline laying method.
3,Operating Temperature:-40ºC-+60ºC

Cable Characteristic:
1,Low dispersion and attenuation
2,Proper design,precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental performance.
3,Compact fiber structure, especially using SZ layer stranded structure to keep the cable away from stress in bad environment.
4,Strength Member and water blocking filling compound is applied to keep the cable moisture proof and water proof.
5,Compact flexible structure and good bending-resistant performance.
6,APL longitudinal wrapping structure is applied to keep cable better moisture proof performance.

Product perameter

Model Number	GYTA
Type	Optical Fiber
Number of Conductors	Multicore
Certification	TLC, ISO
OEM	Welcome to OEM
Jacket Material	PE
Outdoor Laying Mod	Directly buried
Application	1,Duct/Aerial 2,Local area network system and Subscriber network system. 3,The optical communication outdoor feeder and wiring in the network.
Operating Temperature	-40 to 60 degree

Technical parameters:

Items		unit	Details
Fiber counts		--	Multicore
Optical fiber	Type	--	50/125μm, 62.5/125μm
PE sheath		--	YES
Tension (Long/Short Term)		N	600/1500
Crush (Long/Short Term)		N/100mm	300/1000
Min. Bending radius		Dynamic	20times cable diameter
Min. Bending radius		Static	10times cable diameter
Temperature range		Operation	-40°C to 60°C
Application			Outdoor

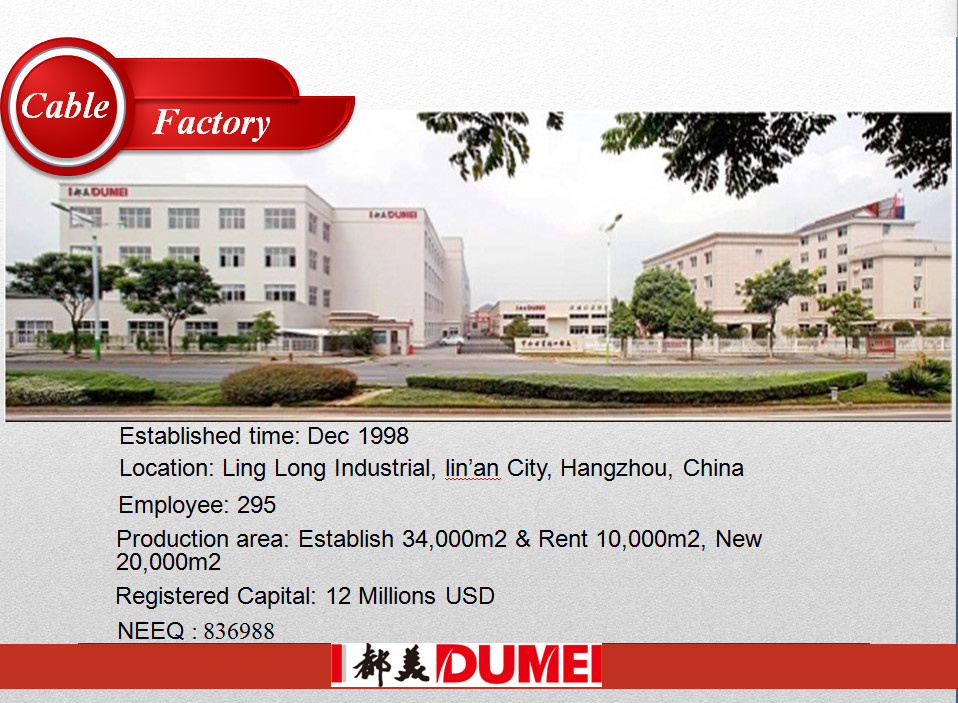

1, Cable Factory

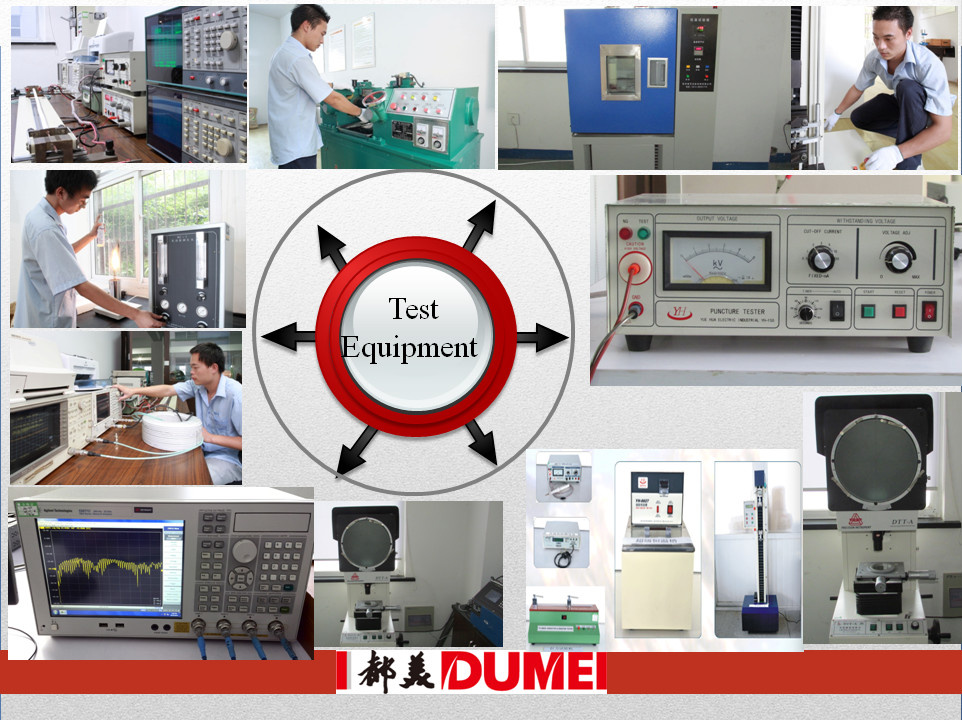

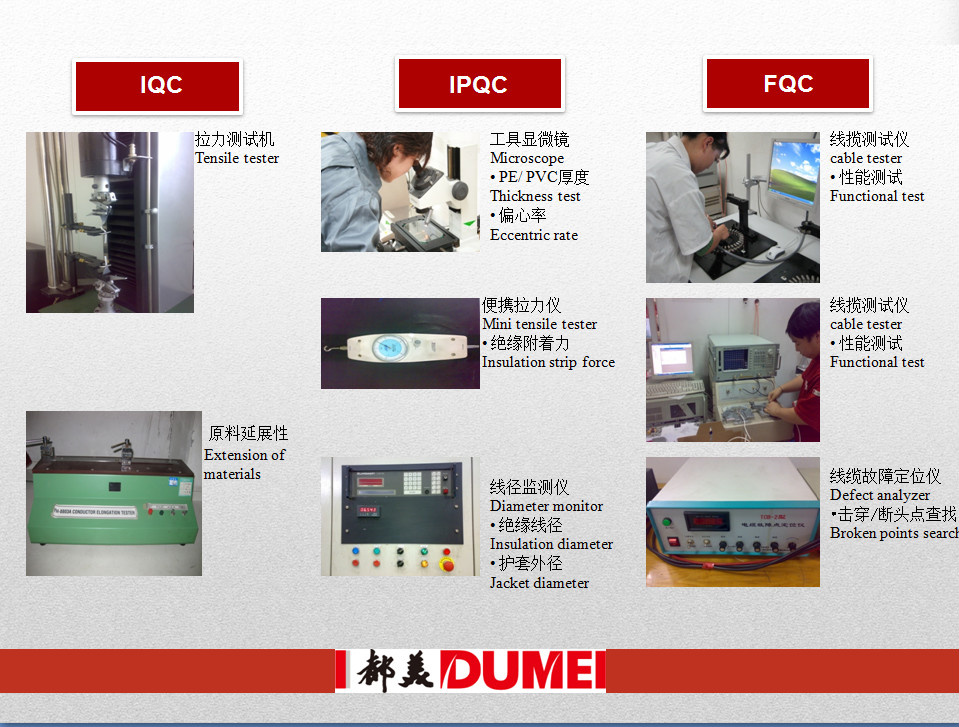

2, Advanced Measurement Equipments

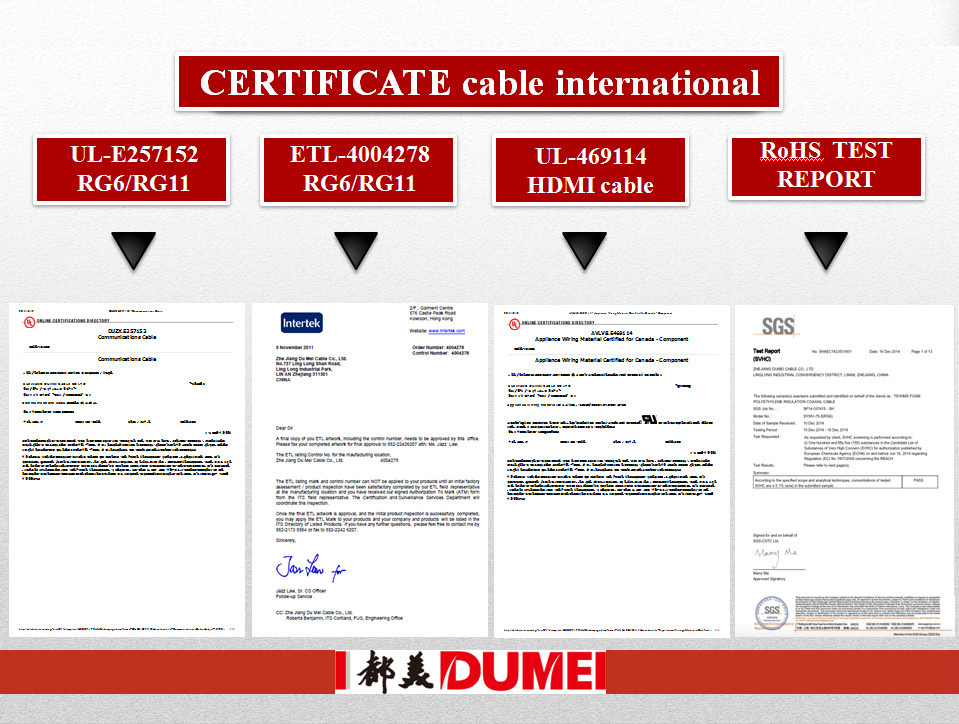

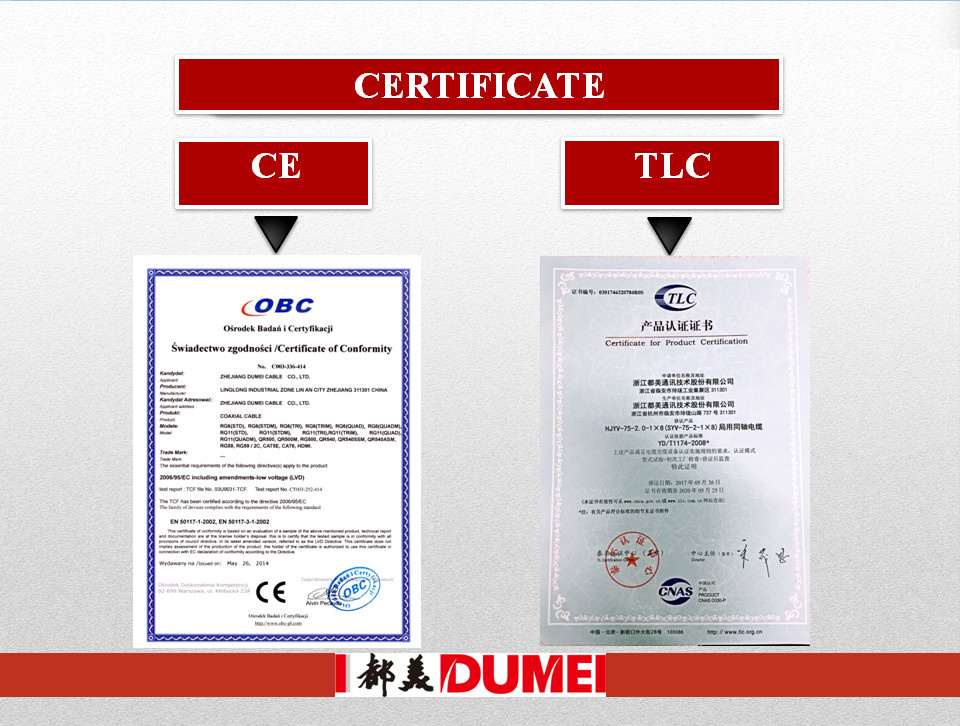

3, Certifications

4, Contact Information
