Multi Party System with Loudspeaking Function Phones (PA3)

Prod Model:	PA3
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Stainless Steel
Keypad:	Yes
Handset:	Yes
Impact Protection:	Ik09
Water Proof:	IP66
Size:	227 X 293 X 135mm
Hook:	Yes
LCD Display:	Yes
Vandal Resistant:	Yes
Lighting Protection:	Yes

Product Description

Multi-Party System with loudspeaking function (PA3)

Product Name:	Multi-Party Paging System PA3
Product model:	PA3



 1.1 System Features

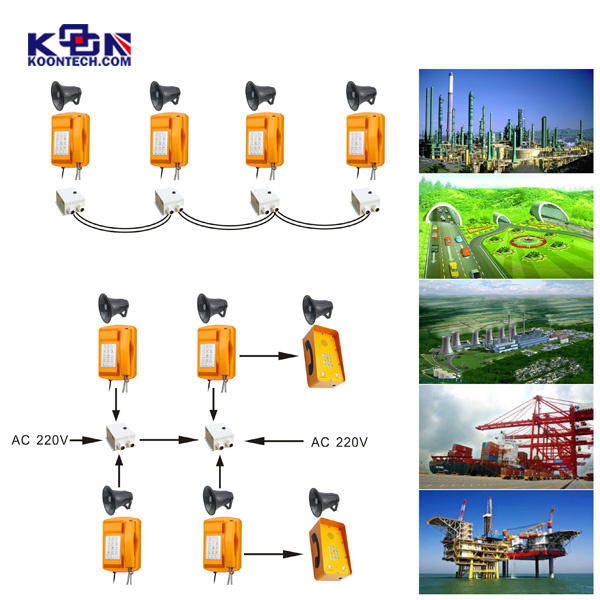

The "Multi-Party Talk" Paging system PA3 is designed for communication in industrial environments.

A: It is suitable for high noise, corrosive atmospheres, hazardous areas and extremes of temperature,
    dust and humidity create hostile environments.

B: The "Multi-Party Talk" system have two operations:
     the first one is group calling through pick-up handset and pressing one button to auto-dial;
     The other one is two-way private intercom  in one line or
     more two-way groups calling and can be allowed 12 persons communication at most.

C: The system also can be connected to external network,
     and the extension can call other phones outside of the network.



1. To initiate communication or broadcast over the system to all other station,
 the operator at one of the station lifts the handset from the cradle, presses * to call and speak to all the other party.

2. All the stations rings and auto-answers.
All the other user at all other station can joins the conversation by lifts the handset and speaking into the handset.
The system allows all party simultaneous conversation without cross-talk or interference.
After conversation each station will auto off to release the line.

3. To initiate communication or broadcast to one of the other station,
the operator at one of the station lifts the handset from the cradle, presses ID number (extension number)
 which you want to call, and speak to them. After conversation each station will auto off to release the line.


 Specification:
1.  Robust SMC die-cast body, vandal resistant and tamper resistant
2.  Weather resistant to IP66 standard, service temperature range from:-35ºC to +75ºC
3.  Magnetic reed hook-switch
4.  Cable line powered. No external power or battery back up required.
5.  Lightening protection to ITU-T recommendation K.21
6.  Handset: made of special SMC, high anti-knock resistance, Weatherproof, armored cable optional,
7.  Hearing Aid compatible receiver
8.  Extension integrity wiring to enable the other station to check if the telephone unit is still operational for Self healthy checking
9.  7 minutes time out
10.  Easy installation/ replacement
