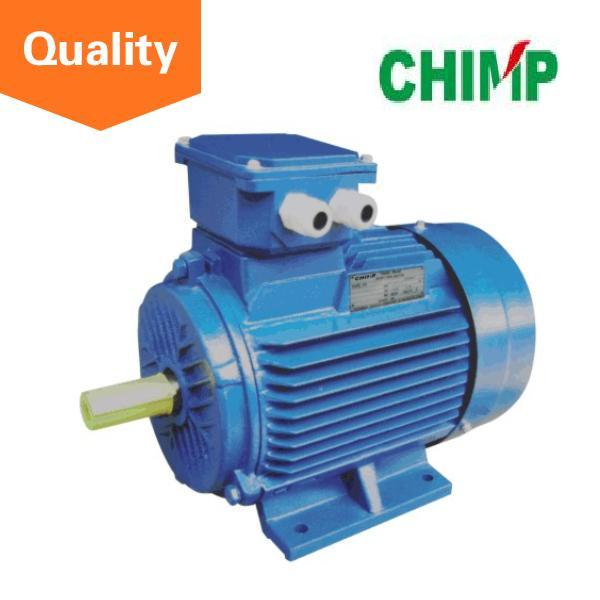

Multi-Speed Asynchronous Automatic Electric Motor

Prod Model:	YD series
Application:	Power Tools
Operating Speed:	High Speed
Number Of Stator:	Three-Phase
Casing Protection:	Closed Type
Starting Mode:	Direct on-line Starting
Species:	Yd Series

Product Description

Product Details
Basic Info.
Model NO.:YD90L

Application:Industrial
Speed:High Speed

Number of Stator:Three-Phase
Function:Control

Casing Protection:Closed Type
Number of Poles:2

Starting Mode:Direct on-line Starting
Certification:ISO9001, CCC, CE

Brand:Chimp / OEM
Package:Strong Carton Packing with Export Standard.

Trademark:CHIMP / OEM
Origin:China

Base Center Height:63-315mm
Power Range:0.45-20 Kw

Nsulation Class:B or F
Protection Class:IP54 (or IP55)

Work System:S1
HS Code:850152000

Production Capacity:1500 Pieces Per Day



Product Description
Feature:

YD series Pole-changing Multi-speed Three-phase motor of unified design  with excellent performance,good appearance,better interoperability with other similar products from abroad.Protection class is IP44

Rated Parameters
Base Center Height:63-315mm                                 Power Range: 0.45-20 kW
Nsulation Class: B or F                                                Protection Class: IP54 (or IP55)
Work System: S1

Mounting Structure:

B3 Frame without foot cover end flange
B35 Frame with foot cover end flange
B5 Frame with foot cover end flange


Type	Output	Rated current	Rated speed	η	Power factor	Locked-rotor current Rated current	Locked-rotor torque Rated troque	Pull-out torque Rated torque
	KW	IN(A)	nN(rmp)	(%)	(cos Φ)	Tst/TN	Ist/TN
YD90L	0.45	1.9	700	58	0.63	1.5	5.5	1.8
	0.75	1.92	1420	72	0.87	1.5	6.5	1.8
YD100L	0.85	3.1	700	68	0.63	1.5	5.5	1.8
	1.5	3.5	1420	75	0.88	1.5	6.5	1.8
YD112M	1.5	5.0	700	75	0.63	1.5	5.5	1.8
	2.4	5.3	1420	78	0.88	1.5	6.5	1.8
YD132S	2.2	7.0	720	75	0.64	1.5	5.5	1.8
	3.3	7.1	1440	80	0.88	1.5	6.5	1.8
YD132M	3	9.0	720	78	0.65	1.5	5.5	1.8
	4.5	9.4	1440	82	0.88	1.5	6.5	1.8
YD160M	5	13.9	730	83	0.66	1.5	5.5	1.8
	7.5	15.2	1450	84	0.89	1.5	6.5	1.8
YD160L	7	19.0	730	85	0.66	1.5	5.5	1.8
	11	21.8	1450	86	0.89	1.5	6.5	1.8
YD180L	11	26.0	730	86	0.74	1.5	6	1.8
	17	31.5	1470	87	0.92	1.5	7	1.8
YD200L1	14	33.0	740	86	0.74	1.5	6	1.8
	22	41.3	1470	88	0.92	1.5	7	1.8
YD200L2	17	40.1	740	87	0.74	1.5	6	1.8
	26	48.8	1470	88	0.92	1.5	7	1.8
YD225M	24	53.2	740	89	0.77	1.4	6	1.8
	34	66.7	1480	88	0.88	1.3	7	1.8
YD250M	30	64.9	740	90	0.78	1.4	6	1.8
	42	78.8	1480	89	0.91	1.3	7	1.8
YD280S	40	83.5	740	91	0.80	1.4	6	1.8
	55	102	1480	90	0.91	1.3	7	1.8
YD280M	47	96.9	680	91	0.81	1.4	6	1.8
	67	122.9	930	90	0.92	1.3	7	1.8
YD90S	0.35	1.6	680	56	0.60	1.4	6	1.8
	0.45	1.4	930	70	0.72	1.3	7	1.8
YD90L	0.45	1.9	710	59	0.60	1.5	5	1.8
	0.65	1.9	950	71	0.73	1.5	6	1.8
YD100L	0.75	2.9	710	65	0.60	1.5	5	1.8
	1.1	3.1	950	75	0.73	1.5	6	1.8
YD112M	1.3	4.5	710	72	0.61	1.5	5	1.8
	1.8	4.8	950	78	0.73	1.5	6	1.8
YD132S	1.8	5.8	730	75	0.62	1.5	5	1.8
	2.4	6.2	970	80	0.73	1.5	6	1.8
YD132M	2.6	8.2	730	78	0.62	1.5	5	1.8
	3.7	9.4	970	82	0.73	1.5	6	1.8
YD160M	4.5	13.3	930	83	0.62	1.5	5	1.8
	6	14.7	980	85	0.73	1.5	6	1.8
YD160L	6	17.5	930	84	0.62	1.5	5	1.8
	8	19.4	980	86	0.73	1.5	6	1.8
YD180M	7.5	21.9	930	84	0.62	1.5	5	1.8
	10	24.2	980	86	0.73	1.5	6	1.8
YD180L	9	24.8	730	85	0.65	1.5	5	1.8
	12	28.3	980	86	0.75	1.5	6	1.8
YD200L1	12	32.5	730	86	0.65	1.5	5	1.8
	17	39.1	980	87	0.76	1.5	6	1.8
YD200L2	15	40.3	730	87	0.65	1.5	5	1.8
	20	45.4	980	88	0.76	1.5	6	1.8
YD100L	0.75/1.3/1.8	2.62/3.66/4.53	940/1420/2880	67/72/71	0.65/0.75/0.85	1.8/1.6/1.6	5.5/6/7	1.8/1.8/1.8
YD112M	1.1/2/2.4	3.52/5.14/5.80	940/1440/2890	73/74/74	0.65/0.81/0.85	1.7/1.4/1.6	5.5/6/7	1.8/1.8/1.8
YD132S	1.8/2.6/3	5.14/6.10/7.38	940/1440/2900	75/78/71	0.71/0.83/0.87	1.4/1.3/1.7	5.5/6/7	1.8/1.8/1.8
YD132M1	2.2/3.3/4	6.03/7.46/8.79	940/1440/2900	77/80/76	0.72/0.84/0.91	1.3/1.3/1.7	5.5/6/7	1.8/1.8/1.8
YD132M2	2.6/4/5	6.86/9.04/10.8	940/1440/2900	80/80/77	0.72/0.84/0.91	1.5/1.4/1.7	5.5/6/7	1.8/1.8/1.8
YD160M	3.7/5/6	9.52/11.2/13.2	940/1440/2900	81/81/76	0.72/0.84/0.91	1.5/1.3/1.4	5.5/6/7	1.8/1.8/1.8
YD160L	4.5/7/9	11.4/15.1/18.8	970/1490/2930	83/83/79	0.72/0.85/0.92	1.5/1.21.3	5.5/6/7	1.8/1.8/1.8
YD112M	0.65/2/2.4	2.66/5.14/5.80	910/1460/2930	59/74/74	0.63/0.81/0.85	1.4/1.3/1.2	4.5/6/7	1.8/1.8/1.8
YD132S	1/2.6/3	3.16/6.10/7.08	710/1440/2900	69/78/74	0.61/0.83/0.87	1.4/1.2/1.4	4.5/6/7	1.8/1.8/1.8
YD132M	1.3/3.7/4.5	4.56/8.37/10.0	710/1440/2900	71/80/75	0.61/0.84/0.91	1.5/1.3/1.4	4.5/6/7	1.8/1.8/1.8
YD160M	2.2/5/6	7.55/11.2/13.2	710/1440/2900	75/81/76	0.59/0.84/0.91	1.4/1.3/1.4	4.5/6/7	1.8/1.8/1.8
YD160L	2.8/7/9	9.21/15.10/18.80	720/1460/2930	77/83/79	0.60/0.85/0.92	1.3/1.2/1.3	5.5/6.5/7	1.8/1.8/1.8
YD112M	0.85/1/1.5	3.72/3.06/3.53	710/940/1400	62/68/75	0.56/0.73/0.86	1.4/1.2/1.4	5.5/6.5/7	1.8/1.8/1.8
YD132S	1.1/1.5/1.8	4.10/4.22/4.03	710/940/1440	68/74/78	0.60/0.73/0.87	1.4/1.3/1.3	5.5/6.5/7	1.8/1.8/1.8
YD132M1	1.5/2/2.2	5.18/5.41/4.87	710/940/1440	71/77/79	0.62/0.37/0.87	1.3/1.5/1.4	5.5/6.5/7	1.8/1.8/1.8
YD132M2	1.8/2.6/3	6.13/6.84/6.55	710/940/1440	72/78/80	0.62/0.74/0.87	1.5/1.5/1.5	5.5/6.5/7	1.8/1.8/1.8
YD160M	3.3/4/5.5	10.2/9.87/11.6	720/970/1460	79/81/83	0.62/0.76/0.87	1.7/1.4/1.5	5.5/6.5/7	1.8/1.8/1.8
YD160L	4.5/6/7.5	13.8/14.5/15.6	720/970/1460	80/83/84	0.62/0.76/0.87	1.6/1.6/1.5	5.5/6.5/7	1.8/1.8/1.8
