Multialayer PCB 8 Layer BGA Circuit Board with Immersion Gold
| Price: |
US $ 0.95/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-152-V1.52 |
| Final Foil External: |
1 Oz |
| Final Foil Internal: |
1 Oz |
| Final Height Of PCB: |
1.6mm |
| Surface Finish: |
Immersion Gold |
| Solder Mask Color: |
Green, Psr-2000 Kx700g, Taiyo Supplied. |
| Colour Of Component Legend: |
White, S-380W, Taiyo Supplied. |
| Minimum Trace And Space: |
4 Mil/4 Mil |
| Minimum / Maximum Holes: |
0.2/3.56mm |
| Via: |
Plated Through Hole(Pth), Minimum Size 0.2mm, Micr |
| Test: |
100% Electrical Test Prior Shipment |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description

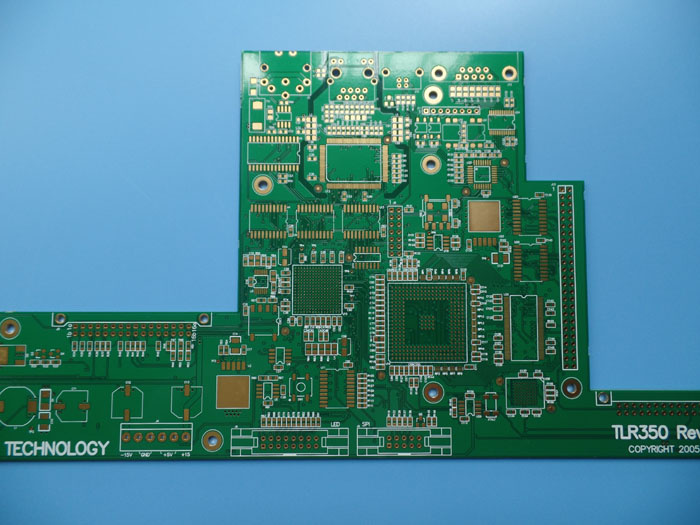

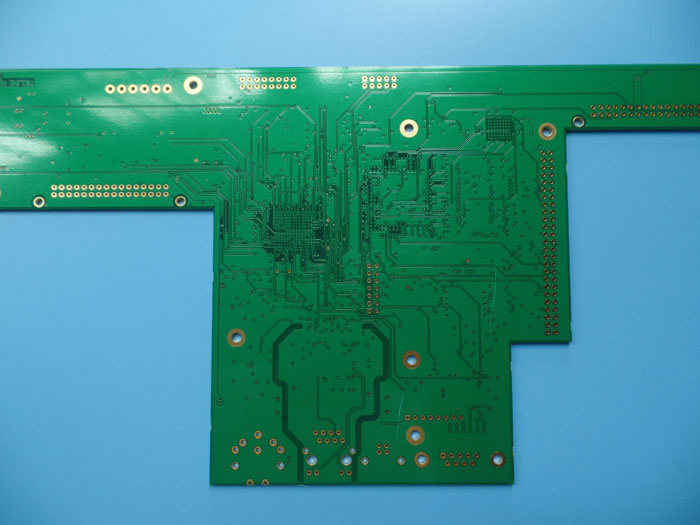

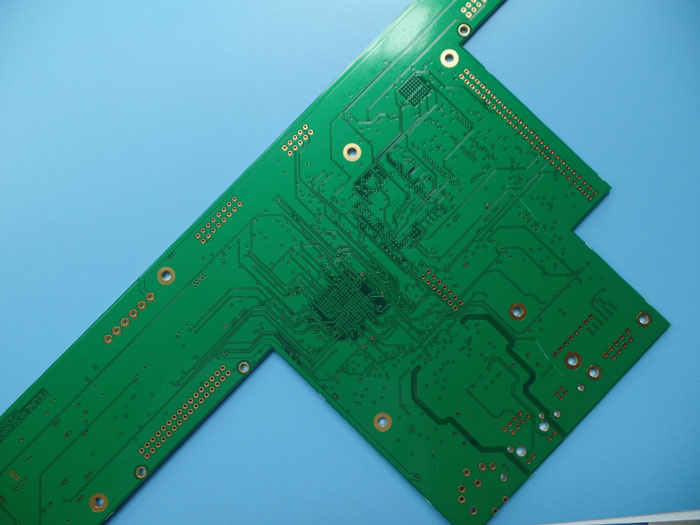

8 Layer Printed Circuit Board BGA Tek at 1.6mm Thick Matt Green Solder Mask Applied In
Signal Generator
Commodity IntroductionThis is a type of FR-4 PCB for the application of Signal Generator. It's an 8 layer board at 1.6mm
thick.The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per
IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.
Parameters & Data Sheet| PCB SIZE | 189 x 237mm=1PCS |
| BOARD TYPE | |
| Number of Layers | Multilayer PCB, 8 layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | YES |
| LAYER STACKUP | Top , Copper, 1.4 mil |
| Prepreg1, 2116, 3.23 mil |
| GND, Copper, 1.4 mil |
| CORE1, FR4, 8.27 mil |
| PWR, Copper, 1.4 mil |
| Prepreg2, 2116, 9.72 mil |
| Internal 1, Copper, 1.4 1mil |
| CORE2, FR4, 8.27 mil |
| Internal 2, Copper, 1.41 mil |
| Prepreg 3, 2116, 8.62 mil |
| GND-X, Copper, 1.41 mil |
| CORE3, FR4, 8.27 mil |
| Internal 3, Copper, 1.41 mil |
| Prepreg 4, 2116, 3.23 mil |
| Bottom, Copper, 1.41 mil |
| TECHNOLOGY | |
| Minimum Trace and Space: | 4 mil/4 mil |
| Minimum / Maximum Holes: | 0.2/3.56mm |
| Number of Different Holes: | 21 |
| Number of Drill Holes: | 5121 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control: | no |
| Number of Gold finger: | 0 |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4 TG170ºC, er<5.4.IT-180, ITEQ Supplied |
| Final foil external: | 1 oz |
| Final foil internal: | 1 oz |
| Final height of PCB: | 1.6mm ±0.16 |
| PLATING AND COATING | |
| Surface Finish | Immersion gold (18% ),0.1 um gold over 3 um nickel |
| Solder Mask Apply To: | TOP and Bottom, 12micron Minimum |
| Solder Mask Color: | Green, PSR-2000 KX700G, Taiyo Supplied. |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP and Bottom. |
| Colour of Component Legend | White, S-380W, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and \leged FREE AREA |
| VIA | plated through hole(PTH), minimum size 0.2mm, Micro BGA |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | BGA package, Signal Generator, Laptop Wifi Antenna
Mobil Router
USB Modem
3G Technology
Variable Frequency Drives |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
