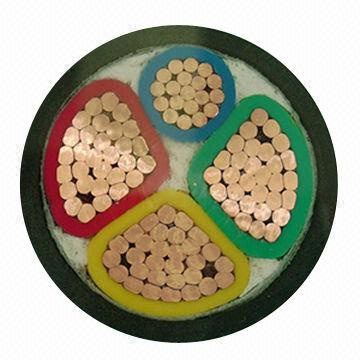

Multicore Electrcal PVC Insulated LV Cable

Name: Multicore Electrcal PVC Insulated LV Cable
Brand: all-electronics-online.com
SKU: 710854072
Availability: InStock
Rating: 4.6 (94 reviews)

Price:	US $ 0.5/Meter
Min Order:	100/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	3+1 core
Product Name:	Low Voltage Power Cable 4*35mm2
Application:	Power Station
Voltage:	Low and Medium Voltage Cable
Current:	AC Cable
Certification:	CE
Insulation Material:	None
Brand:	Yifang

Product Description

0.6/1KV Cu/Al Conductor PVC Insulation PVC Sheath Power Cable
1. The applications: Rated voltage (U0/U) 0.6/1KV in transmission & transformation line & for water-proofing purpose.
2. Standards: IEC60502-1 2004 ISO9001: 2008
3. Product Features: Electric power cables
1) No necessary to heat up in advance while installing above 0oC.
2) Max. Continuous normal operating Temperature: 70oC (PVC Sheathed Cable).
3) Max. Permissible temperature at short circuit (5s. At longest): 160oC.
4) Permissible bending radius:
Single core: ≥ 20(d+D)± 5%.
Three-core: ≥ 15(d+D)± 5%(D is the actual overall diameter of cable, and d is the actual overall diameter of conductor).
Detailed Description: Electric power cables
Cross-linked PVC insulation power cable not only has excellent electric and mechanical properties, but also has powerful resistance against chemical corrosion, heat-aging and environmental stress. Its structure is simple and can be used conveniently and also can be laid with no restriction of different levels. The long term operating temperature is 700C, and its transmission capacitance is large.
Our company can produce both flame retardant and non-flame retardant series of PVC power cables. Our products can be produced according to our works specifications which are equivalent to GB12706, IEC60502, IEC60332, IEC60754, and its some indexes are superior to standards as stated above...Electric power cables
The flame-retardant cable covers all kinds of low-smoke, free-halogen, low-smoke halogen free and three classes of A, B, C. We can design and manufacture special PVC cables according to the other standards require by the customers, such as heavy section cut part conductors, water-resistant, defend termites, defend mouse, and so on. Electric power cables
Mouse, and so on. Electric power cables

Rate
Voltage(kv)

Sectional
Area(mm 2 )

No.of Core

1st class

0.6/1

1.8/3

3.6/6

6/10

8.7/15

12/20

18/30

21/35

2nd class

1/1

3/3

6/6

8.7/10

12/15

18/20

26/35

1 Core

1.5-800

25-800

25-1200

35-1200

50-1200

2 Core

1.5-185

25-185

3 Core

1.5-400

25-400

35-400

50-400

4 Core

2.5-400

25-400

5 Core

2.5-400

25-400

Zhengzhou Yifang Cable Co., Ltd is a large joint-stock\hi-tech enterprise established in 1988. We are specialized in wires & cables, including designment, production and sales.

There are more than 500 staffs in our factory including over 50 technical personnel, 5 senior engineers. With complete advanced cable producing equipments over 150 sets, complete testing equipments, a national level fire-resistant & flame retardant cable laboratory. Our technology has reached advanced levels at home and abroad.

Our main products include: Power Cable for voltage up to 220KV, Overhead insulated cable, ABC Cable, Building Cable and flexible cord, Control Cable, Rubber Cable, Bare Conductor(ACSR, AAC, AAAC, BCC), Welding Cable, Galvanized Steel Wire(Stay wire), flame retardant mining cable, etc

We have own IM/EX right, our products have been exported to Europe, Australian, Middle-east, South-east Asia, Africa, American, South American etc., being subjected to consistent good opinion of customers.
