Multilayer Count PCB Circuit Board with Edge Plating RO4350b 30mil
| Price: |
US $ 2.01/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-599-V5.99 |
| Board Thick: |
0.6mm |
| Surface Finish: |
Immersion Gold |
| Out Layer Copper: |
35um (1 Oz) |
| Soldermask Color: |
Gloss Yellow, Taiyo Psr-2000gt600d |
| Silkscreen Color: |
No Silkscreen Requried |
| Minimum Trace And Space: |
4 Mil/4 Mil |
| Minimum / Maximum Holes: |
0.3/3.50mm |
| Final Foil Internal: |
0.5oz |
| Via: |
Via in Pad and Via Capping on CS and PS |
| Test: |
100% Electrical Test Prior Shipment |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description
Company ProfileBicheng Enterprise Limited which was founded in Shenzhen China in 2003 is a professional
PCB export enterprise. We have established a good relationship of cooperation with well-known
enterprises in the same industry. Our PCB products range from fiberglass PCB, high frequency
PCB to metal core PCB and ceramic PCB's. This is a unique printed circuit board supplier and
export enterprise. She has groups of skilled manufacturing facilities just like the experienced
football players in the football field and every batch of shipment is like a beautiful gift transmitted
to your hands.
Printed Circuit Board
Aluminum PCB
High Frequency PCB
Flex PCB

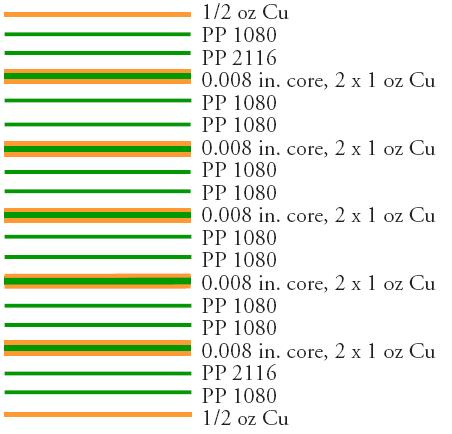

The components of multilayer PCB: copper foilA multilayer board consists of copper foils, thin rigid laminates and prepreg sheets.
The standard thicknesses for copper foils are shown below| µm | 5 | 9 | 12 | 17.5 | 35 | 70 |
| oz | 0.14 | 0.25 | 0.34 | 0.5 | 1 | 2 |
Thick copper (heavy copper) foils are used for voltage and ground planes by some electronics
companies. Thicknesses up to 210 µm (6 oz) are specified for high voltage coil boards. For very
fine-line boards, 5 and 9 µm (0.14 and 0.25 oz.), ultrathin copper foils are also used for the outer
layers.
Copper foils are used as copper cladding of the thin laminates used in the inner layers. Such
laminates can be delivered with different copper thicknesses on the two sides, for example,
17.5 µm (0.5 oz.) on one side for a signal layer and 35 µm (1 oz.) on the other side for ground
or voltage planes.
Copper foils are sometimes used directly as cap foils for the outer layers. In such cases, the
copper foils are bonded to the next layers by means of prepreg and form the outer layer circuits.
For signal outer layers, the copper foil thickness is usually 17.5 µm (0.5 oz.) or 35 µm (1 oz.)
depending on the minimum track width and spacing. In the case of high-density fine-line boards,
5 or 9 µm (0.14 or 0.25 oz.) ultrathin copper foils can be the only solution to achieve the required
high resolution when etching the board.
For signal inner layers, a 35 µm (1 oz.) copper foil is normally chosen. For ground and voltage
planes, 35 µm (1 oz.) and 70 µm (2 oz.) copper foils can be used. However, the thicker foil, the
more difficult it is to fill the apertures in the planes around the hole wall with epoxy flowing from
the prepreg sheets during lamination.
