Multilayer PCB 0.05 Micron Gold 4 Layer 2.0mm Thick Board
| Price: |
US $ 1.03/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC1332R3.8 |
| Surface Finish: |
Immersion Gold |
| Inner Copper Thick: |
1 Oz |
| Outer Copper Thick: |
1oz |
| Solder Mask Colour: |
Green |
| Legend Color: |
White |
| Mininum Trace (Mil): |
7 Mil |
| Minimum Gap(Mil): |
5 Mil |
| RoHS Required: |
Yes |
| Board Thick: |
2.0mm |
| Test: |
100% Electrical Test |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description

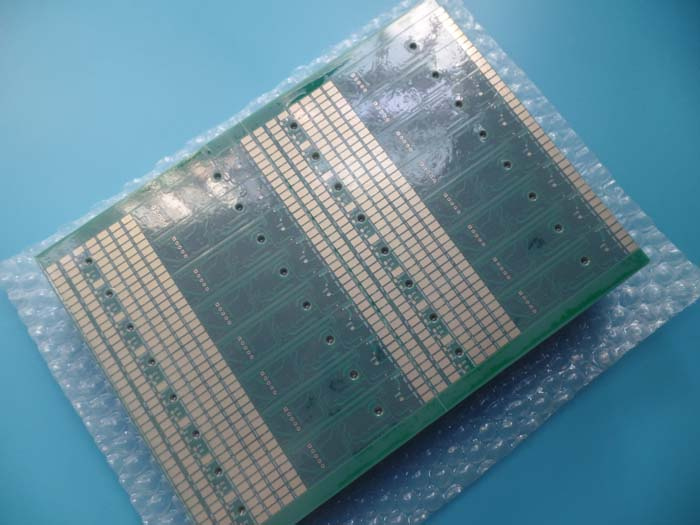

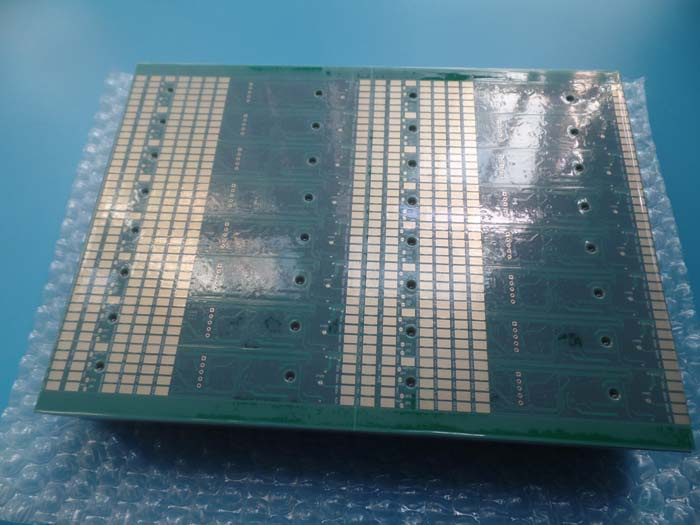

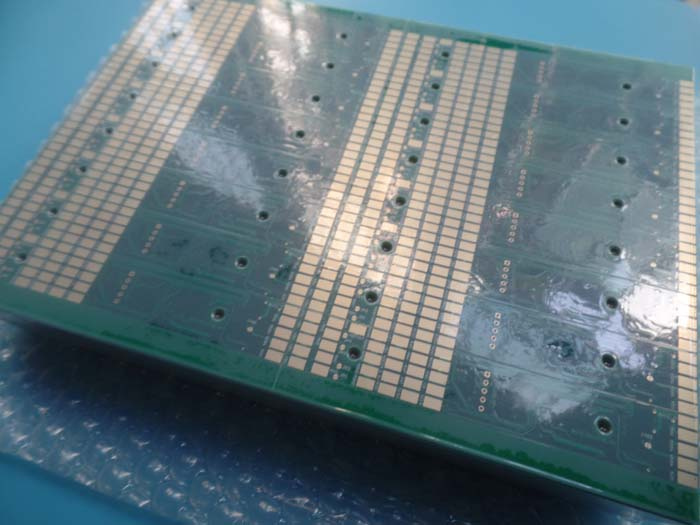

Multilayer PCB 0.05 micron gold 4 Layer 2.0mm thick board with immersion Gold
Commodity Introduction
This is a type of FR-4 PCB for the application of CODEC. It's a 4 layer board at 2.0mm thick. The
base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012
Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.
Parameter & Data Sheet| Number of Layers | 4 |
| Board Type | Multilayer PCB, 4 Layers |
| Board Thickness | 2.0mm +/-0.2 |
| Board Material | FR-4 |
| Board Material Supplier | ITEQ |
| Tg Value of Board Material | 135ºC |
| |
| PTH Cu thickness | ≥20 um |
| Inner Iayer Cu thicknes | 35 um (1oz) |
| Surface Cu thickness | 35 um (1oz) |
| |
| Solder Mask Type and Model No. | LPSM, PSR-2000GT600D |
| Solder Mask Supplier | TAIYO |
| Solder Mask Colour | Green |
| Number of Solder Masks | 2 |
| Thickness of Solder Mask | 13um |
| |
| Type of Silkscreen Ink | IJR-4000 MW300 |
| Supplier of Silkscreen | TAIYO |
| Color of Silkscreen | White |
| Number of Silkscreen | 1 |
| |
| Mininum Trace (mil) | 7 mil |
| Minimum Gap(mil) | 5 mil |
| |
| Surface Finish | Immersion gold, 0.05 micron gold over
4.13 micron nickel |
| RoHS Required | Yes |
| Warpage | 0.23% |
| |
| Thermal Shock Test | Pass, 288±5ºC,10 seconds, 3 cycles.
No delamination, no blistering. |
| Solderablity Test | Pass, 255±5ºC,5 seconds Wetting Area Least 95% |
| Function | 100% Pass electrical test |
| Workmanship | Compliance with IPC-A-600H & IPC-6012C Class 2 |
Laminates --- FR-4 Applied on printed circuit boards (PCBs)
FR-4 grade materials are generally used on the circuit board has many types, but most are based
on the so-called four function (Tera-Function) composite material which is composed of woven fiberglass cloth with an epoxy resin binder that is flame resistant.
FR-4 is the primary insulating backbone upon which the vast majority of rigid printed circuit boards
(PCBs) are produced. A thin layer of copper foil is laminated to one or both sides of an FR-4 glass
epoxy panel. These are commonly referred to as copper clad laminates (CCL).
FR-4 copper-clad sheets are fabricated with circuitry interconnections etched into copper layers to
produce printed circuit boards (PCBs). More sophisticated and complex FR-4 printed circuit boards
(PCBs) are produced in multiple layers, also known as "multilayer circuitry".
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
