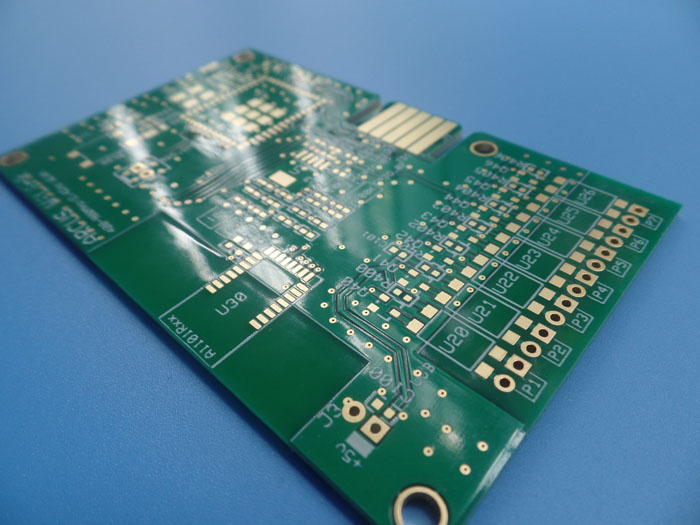

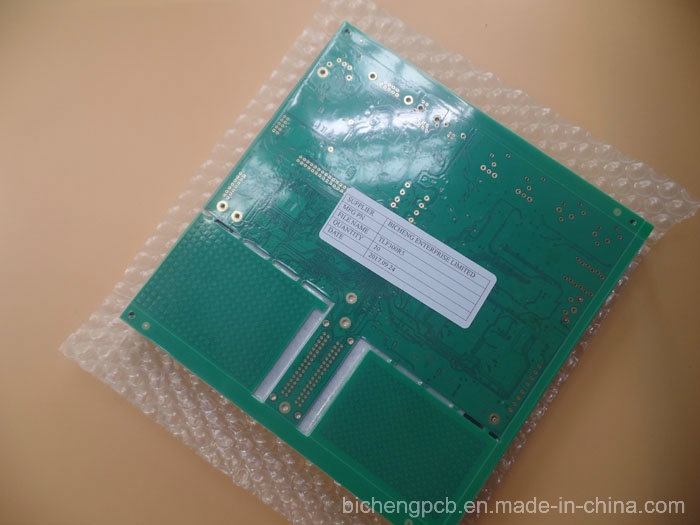

Multilayer PCB 10 Layer Circuit Board with Immersion Gold

Name: Multilayer PCB 10 Layer Circuit Board with Immersion Gold
Brand: all-electronics-online.com
SKU: 831348185
Availability: InStock
Rating: 4.3 (55 reviews)

Price:	US $ 2.87/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BIC-460.1757-V1.1
Final Foil External:	1.5oz
Final Foil Internal:	0.5oz
Final Height Of PCB:	1.6mm ±0.16
Surface Finish:	Immersion Gold
Solder Mask Color:	Green, Lp-4G G-05, Nanya Supplied
Minimum Trace And Space:	4mil
Minimum / Maximum Holes:	0.25/6.50mm

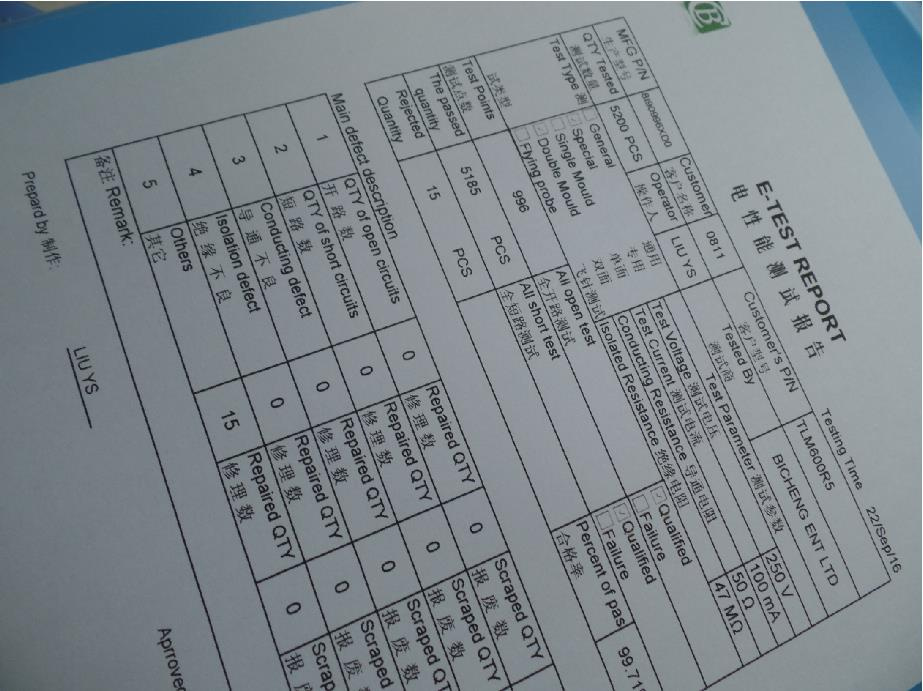

Test:	100% Electrical Test Prior Shipment
Number Of Milled Slots:	3
Number Of Drill Holes:	4182
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0
Brand:	Bicheng

Product Description

Company Profile
Bicheng Enterprise Limited is a unique printed circuit board supplier and export enterprise. We have been specialized in multispecies of PCB, medium and small batch PCB, superior difficulty PCB and quick turn-around prototypes. The single plant has the highest operating efficiency, the strongest mixed manufacturing capacity, the best performance ratio of the fast circuit board supplier.

PCB Board

Aluminum PCB

Microwave PCB

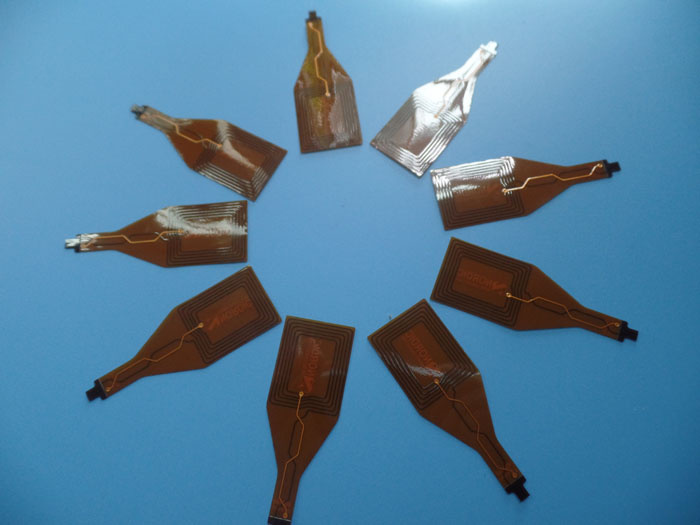

Flexible PCB

Laminates --- FR-4 Applied on printed circuit boards (PCBs)
FR-4 grade materials are generally used on the circuit board has many types, but most are based on the so-called four function (Tera-Function) composite material which is composed of woven fiberglass cloth with an epoxy resin binder that is flame resistant.

FR-4 is the primary insulating backbone upon which the vast majority of rigid printed circuit boards (PCBs) are produced. A thin layer of copper foil is laminated to one or both sides of an FR-4 glass epoxy panel. These are commonly referred to as copper clad laminates (CCL).

FR-4 copper-clad sheets are fabricated with circuitry interconnections etched into copper layers to produce printed circuit boards (PCBs). More sophisticated and complex FR-4 printed circuit boards (PCBs) are produced in multiple layers, also known as "multilayer circuitry".

Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.

The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.

Different plant scale to suit for your requirements

16000 square meter factory building

30000 square meter month capability

8000 types of PCB per month

ISO9001, ISO14001, TS16949, UL Certified

We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.

A) Various kinds of PCB products

Double sided PCB

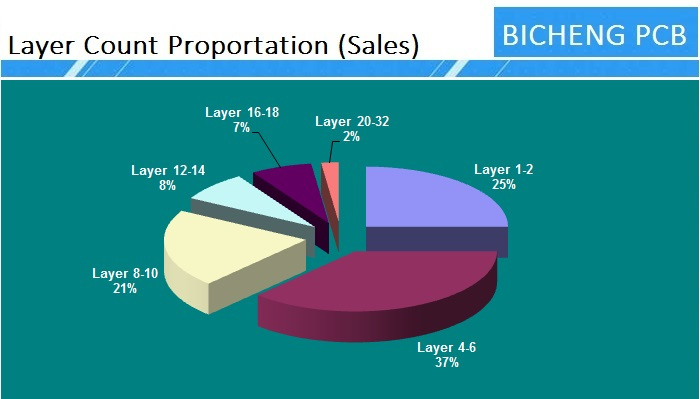

Multilayer PCB up to 32 layers

FR-4 PCB (Tg130, Tg170)

High frequency PCB (RO4350B, RO4003C)

Aluminum PCB (1W/MK, 2W/MK, 3W/MK)

Flexible PCB

HDI PCB Board

B) Multiple PCB technology to meet the market demands

Blind via PCB, Via in pad PCB, Fine pitch BGA PCB

Impedance controlled PCB

Heavy copper PCB

Hybrid material PCB

C) Many discount policies for new customers

SMT stencil foil, free of charge

Prototype shipping cost, free of charge

Prototype test, free of charge

PCB panelization, free of charge

D) High quality PCB services

Engineering design prevents problems from occurring in pre-production.

Meet your PCB needs from prototype to mass volume production.

Eligible products rate of first production: >95%

Delivery on time: >98%, door to door shipment service

Customer complaint rate: <1%

Choose BichengPCB means you choose hassle free.
