Multilayer PCB 10 Layer Single Trace Impedance Control 50 Ohm
| Price: |
US $ 0.92/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC1238R3.8 |
| Surface Finish: |
Immersion Gold |
| Board Thick: |
1.6mm |
| Outer Copper Thick: |
1.5 Oz |
| Solder Mask Color: |
Green |
| Inner Copper Thick: |
0.5 Oz |
| Legend Color: |
White |
| Differential Pairs: |
90 Ohm |
| Single Trace: |
50 Ohm |
| Minimum Trace And Space: |
4 Mil/4 Mil |
| Minimum&/Maximum Holes: |
0.3/2.6mm |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description
PCB Prototype Circuit Board Multi Layer Board Tg170 FR-4 Immersion Gold Applied In
Telecomunication
Commodity Introduction

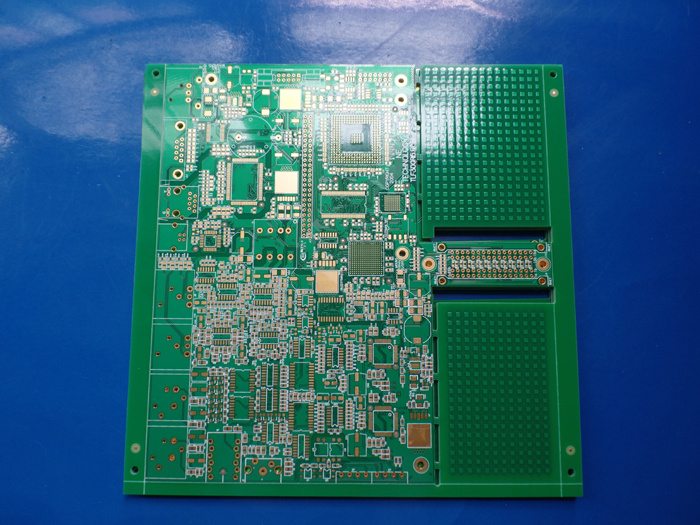

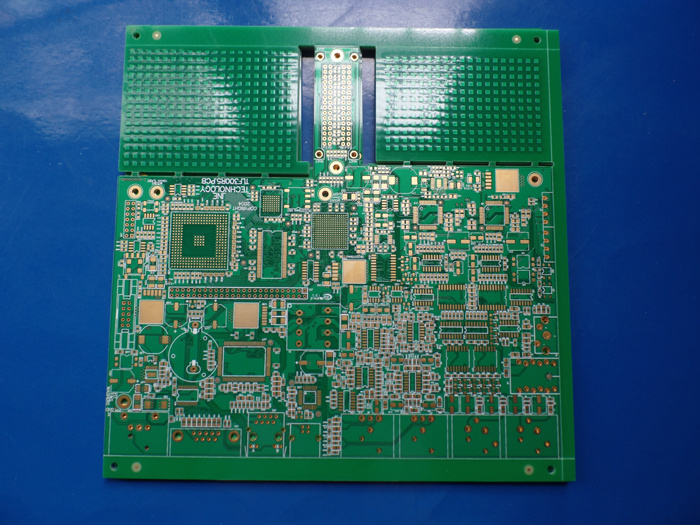

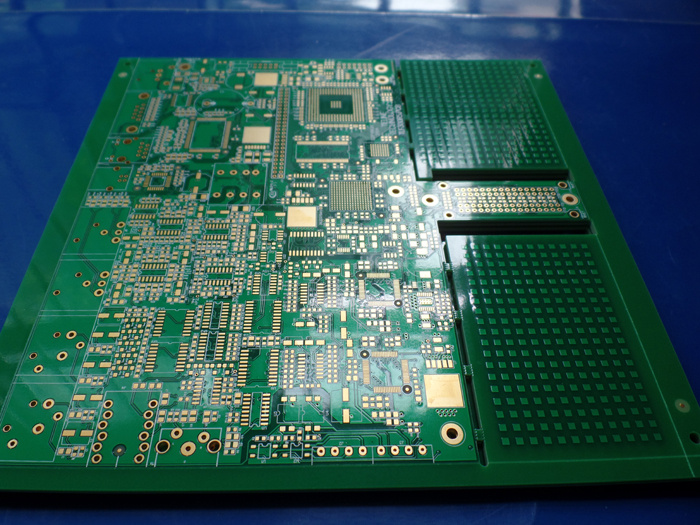

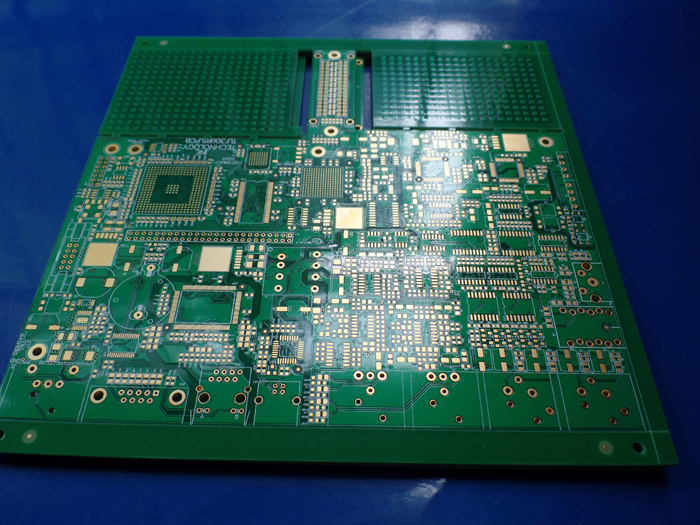

This is a type of FR-4 PCB for the application of Telecomunication.It's a 10 layer board at 1.6mm
thick. The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per
IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.
Parameters & Data Sheet| PCB SIZE | 245 x 221mm=1PCS |
| BOARD TYPE | |
| Number of Layers | Multilayer PCB, 10 Layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | YES |
| LAYER STACKUP | copper ------- 35um(1oz)+plate TOP Signal |
| 4mil prepreg |
| copper ------- 18um(0.5oz) GND Plane |
| 5mil FR-4 |
| copper ------- 18um(0.5oz) SIG1 |
| 5mil prepreg |
| copper ------- 18um(0.5oz) SIG2 |
| 5mil FR-4 |
| copper ------- 18um(0.5oz) PWR Plane |
| 13mil prepreg |
| copper ------- 18um(0.5oz) GND Plane |
| 5mil FR-4 |
| copper ------- 18um(0.5oz) SIG3 |
| 5mil prepreg |
| copper ------- 35um(1oz) SIG4 |
| 5mil FR-4 |
| copper ------- 35um(1oz) GND Plane |
| 4mil prepreg |
| copper ------- 35um(1oz)+plate BOT Signal |
| TECHNOLOGY | |
| Minimum Trace and Space: | 4mil/4mil |
| Minimum / Maximum Holes: | 0.3/2.6mm |
| Number of Different Holes: | 32 |
| Number of Drill Holes: | 18541 |
| Number of Milled Slots: | 2 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | Differential pairs impedance control,
Layer 4 and layer 7, 4/6mil, 4/4mil
90ohm+/-10%.Single trace impedance
control: Layer 1, L3, L4, L7, L8, L10, 4mil,
5mil, 5.8mil track 50ohm +/-10% |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4, ITEQ IT-180 TG>170, er<5.4 |
| Final foil external: | 1.5oz |
| Final foil internal: | 0.5oz |
| Final height of PCB: | 1.6mm ±0.16 |
| PLATING AND COATING | |
| Surface Finish | Immersion Gold (30.1%) 2µ" over 100µ" nickel |
| Solder Mask Apply To: | Top and Bottom, 12micon Minimum. |
| Solder Mask Color: | Green, LP-4G G-05, Nanya supplied |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White, S-380W, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and
leged FREE AREA |
| VIA | Plated Through Hole(PTH), via tented. |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | IP Telephony, Wifi Card
Bluetooth Printer
Solar Inverter
12V Power Inverter
Wireless Range Extender |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Mass production capability
The manufacturing facilities are independent industrial plant. There're 16000 square meters
workshop area. And the brand new automatic equipment was introduced from Israel, Germany,
Japan and Taiwan area. As of now the manufacturing capability for 2-12 layer PCBs covers 300
thousand square feet per month. 7000-8000 types of different PCBs are shipped to worldwide
each month.
Product & Service
a) FR-4 TG>135, High TG>170, High CTI>600V
b) RO4350B, RO4003C, F4B microwave material
c) Aluminum based PCB, 1W/MK-3W/MK material
d) Layer Count up to 32 layers
e) Heavy Copper
f) Hybrid Material Multilayer PCB
g) Impedance Controlled PCB
h) HASL Lead free, Electroless Nickle Immersion Gold (ENIG), Immersion Silver, Immersion Tin,
OSP
i) Colour of Solder mask: Green, Blue, Yellow, Black, Red and it's relative Matt color
j) Special holes: blind via, countersink hole, castellation hole, press-fit hole
k) Quick turn-around (QTA) Delivery
l) Minimum Order Quantity (MOQ) 1 pcs
m) Door to Door shipment service
Service Area
North America, Oceania, Southeast Asia, Eastern Europe, Africa, Latin America, Western &
Southern Europe, Northern Europe, Central & South Asian, Middle East.
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
