Multilayer PCB 4 Layer 2.4mm Thick with Heavy Copper Board
| Price: |
US $ 1.12/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC1313R3.8 |
| Solder Mask Color: |
Green |
| Board Thick: |
2.28mm |
| Surface Finish: |
Lead Free HASL |
| Legend Color: |
White |
| Copper Thick: |
1 Oz |
| Trace Width (mm): |
0.614mm |
| Spacing (mm): |
0.342mm |
| Warp And Twist: |
0.23% |
| Electrioal Test: |
100% Passed |
| Visual Inspection: |
100% Passed |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description
Multilayer PCB 4 Layer 2.4mm Thick with heavy copper board for HASL Lead Free

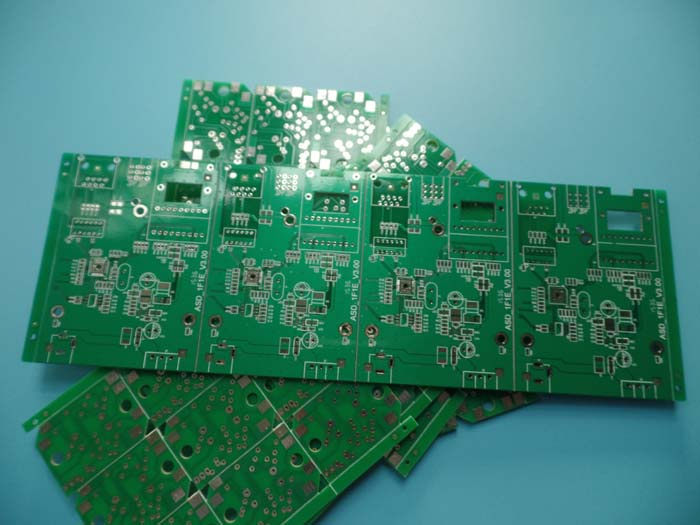

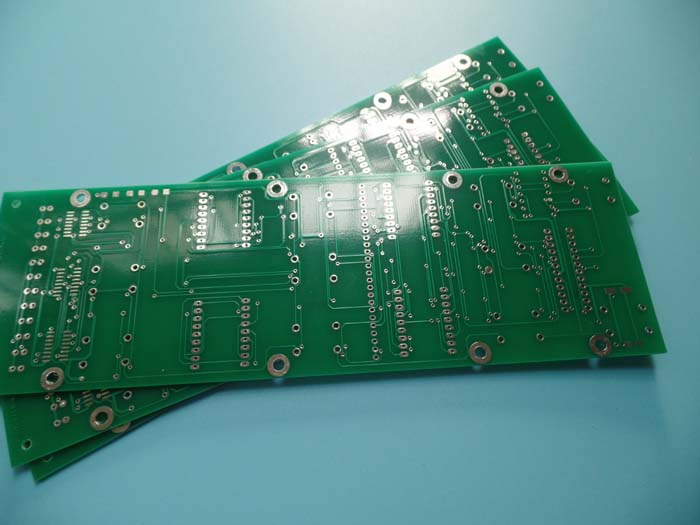

Commodity IntroductionThis is a type of FR-4 PCB for the application of CODEC. It's a 4 layer board at 2.4mm thick.
The base laminate is from SHENGYI , Solder mask and silkscreen from Onstatic and Taiyo.
It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are
packed separately.
Parameters & Data Sheet| Item | Description | Requirement | Actual |
|
| Laminate | Laminate Type | FR4:CTI:175V-249V | FR4:CTI:175V-249V |
| Supplier | SHENGYI | SHENGYI |
| Tg | TG >135 | TG >135 |
| Finished thickness | 2.36+/-0.236 MM | 2.28 MM |
| Plating Thickness | PTH Cu thickness | 20 um | 22.32um |
| Inner layer Cu Thickness | 1/1 OZ | 1/1 OZ |
| Surface Cu thickness | 70um | 83.5 um |
| Solder Mask | Material type | R-500BL | R-500BL |
| Supplier | Onstatic | Onstatic |
| Color | Green | Green |
| Single / both sides | Both Sides | Both Sides |
| S/M thickness | >= 10.0 um | 27.43um |
| 3M tape test | NO Peel Off | no peel off |
| Legend | Material type | S-380W | S-380w |
| Supplier | Tai yo | Tai yo |
| Color | White | White |
| Location | Both Sides | Both Sides |
| 3M tape test | No peel off | no peel off |
| Circuit | Trace Width (mm) | 0.635+/-20%mm | 0.614mm |
| Spacing (mm) | 0.38+/- 20%mm | 0.342 mm |
| Identification | UL mark | YES | OK |
| Company Logo | YES | OK |
| Date code | WWYY | WWYY |
| Mark location | NA | OK |
| Surface Finish | Lead- free HASL | 1-40um | 5.78um |
| Reliabilty Tests | Thermal shock test | 288±5ºC, 10sec ,
3 cycles | NO Discolor ,
NO Delamination |
| solder abllity test | 245±5ºC | 100% wetting |
| Function | Electrioal Test | 100% | pass |
| Standard | IPC-A 600H class 2,
IPC_6012C CLASS 2 | 100% | Pass |
| Appearance | Visual inspection | 100% | Pass |
| warp and twist | <= 0.75% | 0.23% |
| Others | V-Cut thickness | / | / |
| Angle | / | / |
