Name: Multilayer PCB 4 Layer Circuit Board 2.0mm PCB Circuits
Brand: all-electronics-online.com
SKU: 827254885
Availability: InStock
Rating: 4.7 (94 reviews)

Price:	US $ 2.13/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BIC-14651-V1.2
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0
Application:	Wireless Signal Booster
Processing Technology:	Enig
Base Material:	Copper Clad Laminate
Brand:	Bicheng

Product Description

Multilayer PCB 4 Layer Circuit Board 2.0mm PCB Circuits 368

Commodity Introduction

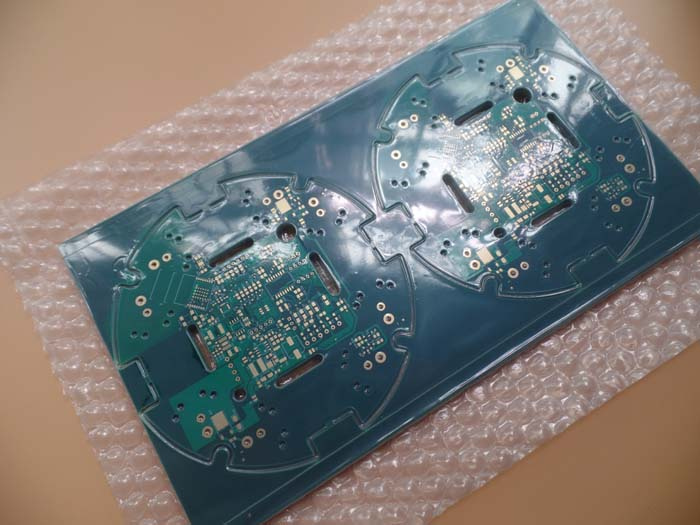

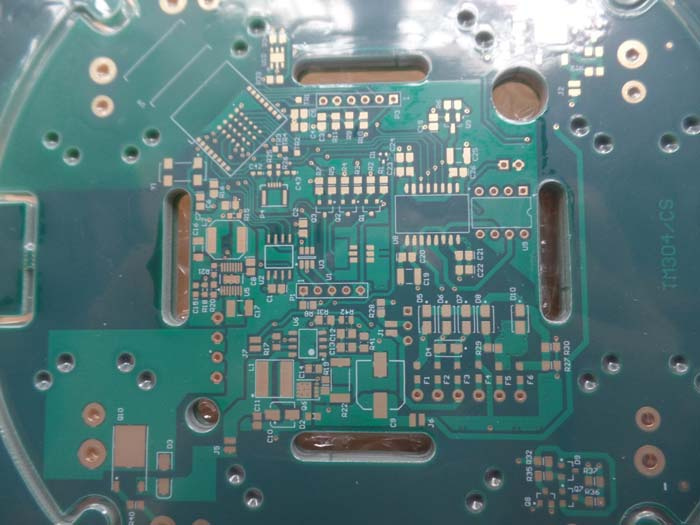

This is a type of 4 layer 2.0mm board for the application of Wireless Signal Booster with Immersion gold pad finish. The base laminate is from ITEQ, Green Solder mask from Kuangshun and White silkscreen from Taiyo. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 20 panel boards are packed separately.

Parameter & Data Sheet

Number of Layers	4
Board Type	Multilayer PCB
Board Thickness	2.0mm +/-0.2
Board Material	FR-4
Board Material Supplier	ITEQ
Tg Value of Board Material	135ºC

PTH Cu thickness	≥20 um (See hole wall details)
Inner Iayer Cu thicknes	35 um (1oz)
Surface Cu thickness	35 um (1oz)

Solder Mask Type and Model No.	LPSM, PSR-2000GT600D
Solder Mask Supplier	TAIYO
Solder Mask Colour	Green
Number of Solder Masks	2
Thickness of Solder Mask	13um

Type of Silkscreen Ink	IJR-4000 MW300
Supplier of Silkscreen	TAIYO
Color of Silkscreen	Whie
Number of Silkscreen	2

Mininum Trace (mil)	8 mil
Minimum Gap(mil)	8 mil

Surface Finish	Immersion gold
RoHS Required	Yes
Warpage	0.25%

Thermal Shock Test	Pass, 288±5ºC,10 seconds, 3 cycles. No delamination, no blistering.
Solderablity Test	Pass, 255±5ºC,5 seconds Wetting Area Least 95%
Function	100% Pass electrical test
Workmanship	Compliance with IPC-A-600H & IPC-6012C Class 2

Microsection Hole Wall (um)

Hole Wall Cu Thickness			≥20 um	Hole Wall Cu Roughness			≤25.4 um
NO.	A	B	C	D	E	F	AVE
1	25.706	24.506	24.566	26.206	25.480	25.116	25.263
2	26.323	25.123	125.823	26.103	25.733	25.183	42.381
3	25.515	24.315	24.375	26.015	25.295	24.925	25.073

Outline dimension Unit: mm

NO.	Required Dimension (toerance)		Actual dimension
1	162.00	±0.15	161.96	162.05	162.04	161.95
2	289.00	±0.15	288.97	289.12	288.98	288.97

Hole Size and Slot Dimension (mm)

NO.	Requerment Dimension (tolerance)		PTH/NPT	Actual dimension
1	2.500	±0.075	Y	2.500	2.475	2.525	2.500
2	2.200	±0.075	Y	2.200	2.175	2.225	2.200
3	1.000	±0.075	Y	1.000	0.975	1.025	1.000
4	0.900	±0.075	Y	0.900	0.875	0.925	0.900
5	3.200	±0.05	Y	3.200	3.175	3.225	3.200

Fast PCB prototypes

Category	Fastest lead time	Stanardard lead time
2 layer	24 hrs	4 days
4 layer	48 hrs	5 days
6 layer	72 hrs	7 days
8 layer	96 hrs	9 days
10 layer	120 hrs	11 days
12 layer	120 hrs	12 days
14 layer	144 hrs	15 days
16-20 layer	Depends on specifications
20 layer above	Depends on specifications

Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.

The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.

Different plant scale to suit for your requirements

16000 square meter factory building

30000 square meter month capability

8000 types of PCB per month

ISO9001, ISO14001, TS16949, UL Certified

We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.

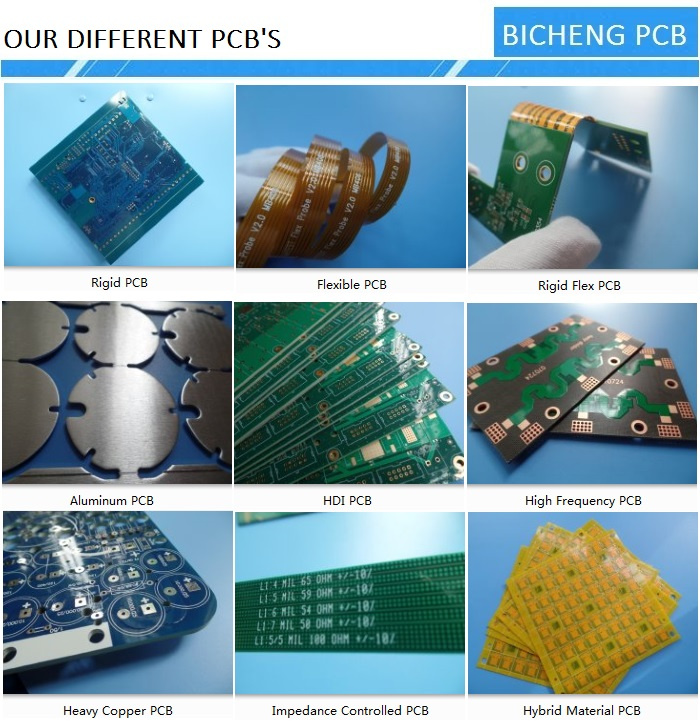

A) Various kinds of PCB products

Double sided PCB

Multilayer PCB up to 32 layers

FR-4 PCB (Tg130, Tg170)

High frequency PCB (RO4350B, RO4003C)

Aluminum PCB (1W/MK, 2W/MK, 3W/MK)

Flexible PCB

HDI PCB Board

B) Multiple PCB technology to meet the market demands

Blind via PCB, Via in pad PCB, Fine pitch BGA PCB

Impedance controlled PCB

Heavy copper PCB

Hybrid material PCB

C) Many discount policies for new customers

SMT stencil foil, free of charge

Prototype shipping cost, free of charge

Prototype test, free of charge

PCB panelization, free of charge

D) High quality PCB services

Engineering design prevents problems from occurring in pre-production.

Meet your PCB needs from prototype to mass volume production.

Eligible products rate of first production: >95%

Delivery on time: >98%, door to door shipment service

Customer complaint rate: <1%

Choose BichengPCB means you choose hassle free.
