Multilayer PCB 4 Layer No Silkscreen with Immersion Gold
| Price: |
US $ 0.67/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-255-V2.55 |
| Outer Copper Foil: |
1 Oz |
| Board Thickness: |
1.6mm |
| Surface Treament: |
Enig |
| Solder Mask: |
Blue Matt |
| Legend: |
No |
| Min Line Width (Mil): |
8.2 Mil |
| Min Line Spacing (Mil): |
5 Mil |
| Electrical Test: |
100% PCB Passed |
| Visual Inspection: |
Ipc-a-600h&Ipc-6012c |
| Solderability Test: |
245ºC 5s 1 Cycle |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description

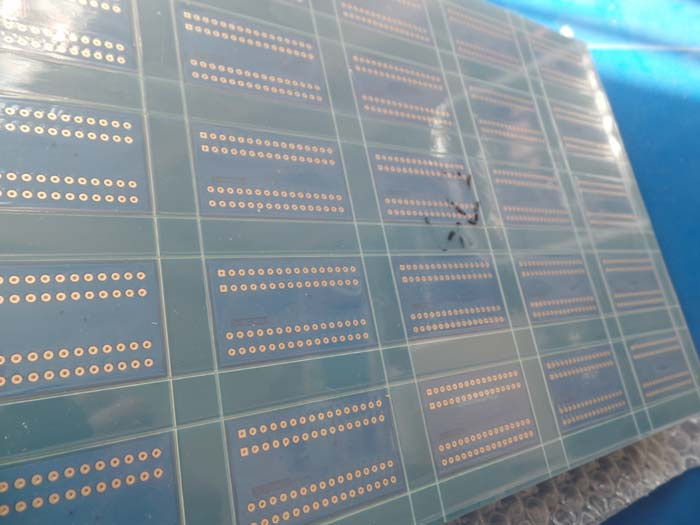

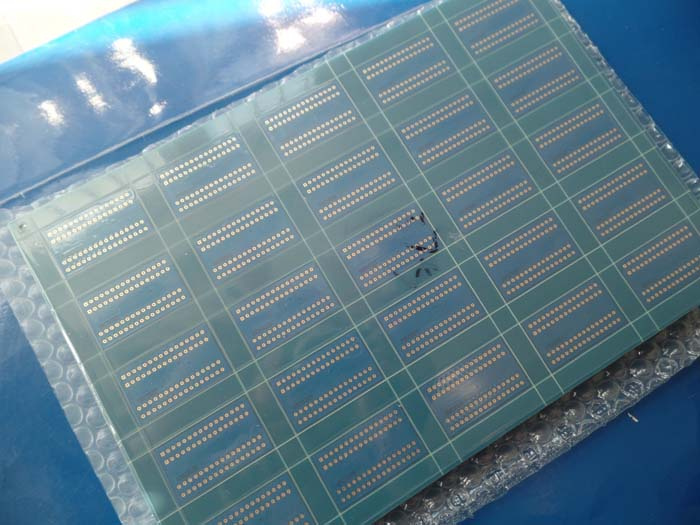

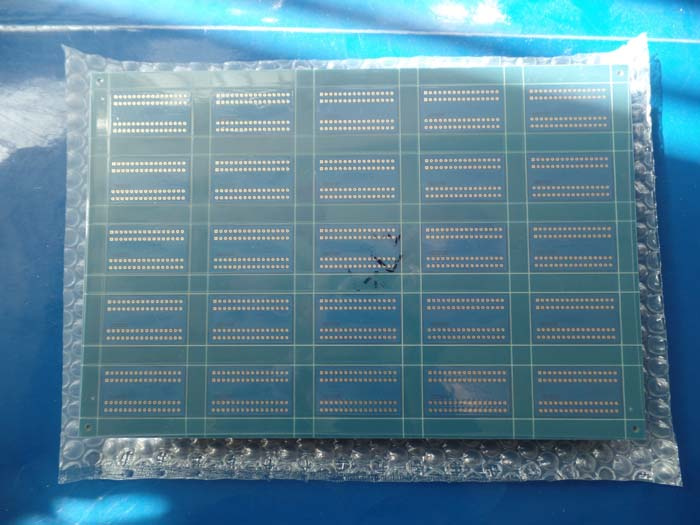

Multilayer 4 Layer prototype PCB 1.58-1.64mm Thick with Matt Blue Mask No Silkscreen
Immersion Gold in Bluetooth Transmitter
Commodity Introduction
This is a type of FR-4 PCB for the application of Bluetooth Transmitter. It's a 4 layer board at
1.6mm thick. The base laminate is from ShengYi, Solder mask from Taiyo. It's fabricated per
IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed separat
-ely.
Parameters & Data Sheet| Item | Requirement | Result |
| Laminate | Type | FR-4 Tg170 | FR-4 TG170 |
| Supplier | Shengyi | Shengyi |
| Board thickness | 1.6+/-10%mm | 1.58-1.64mm |
| Outer copper foil | >=35 um | 43.37um |
| Inner copper foil | 1/1 OZ | 1/1 OZ |
| Warp-twist | <= 0.75% | 0.17% |
| Legend | Type | N/A | OK |
| Color | N/A | OK |
| Location | N/A | OK |
| Marking | Co.logo | N/A | OK |
| UL.logo | N/A | OK |
| Date code | N/A | OK |
| Marking form | N/A | OK |
| Location | N/A | OK |
| Min line width (mil) | 8 | 8.2 |
| Min line spacing (mil) | 5.2 | 5 |
| Min ring width (mil) | NA | NA |
| Solder Mask | Type | KSM-6189BLM1 | KSM-6189BLM1 |
| Color | Blue matt | Blue matt |
| Thickness | >=10 um | 13 um |
| Pencil Test | 6H OR ABOVE | OK |
| SOLVENT TEST | NO ATTACK | OK |
| TAPE TEST | NO PEEL OFF | OK |
| Surface Treament | ENIG | OK |
| Special Treament | Silk screen | / | / |
| Location | / | / |
| Forming | V-cut | OK |
| Normal Testing | Electrical test | 100% PCB passed | OK |
| Visual inspection | IPC-A-600H&IPC-6012C | OK |
| Solderability Test | 245ºC 5S 1 Cycle | OK |
Finished dimension (unit: mm): including v-cut| No | Required Dimension (tolerance) | Actual Diemension |
| 1 | 126.80 | 126.87 | 126.8 | 126.75 | 126.75 |
| 2 | 203.72 | 190.54 | 203.81 | 203.67 | 203.62 |
Hole size and slot dimension(unit: mm, PTH tolerance +/-0.076, NPTH +/-0.05mm)| No | Required | PTH | Actual Dimension |
| 1 | 0.600 | Y | 0.600 | 0.625 | 0.575 | 0.600 |
| 2 | 0.750 | Y | 0.750 | 0.725 | 0.725 | 0.750 |
| 3 | 39.000 | Y | 0.900 | 0.875 | 0.875 | 0.900 |
| 4 | 1.000 | Y | 1.000 | 0.975 | 0.975 | 1.000 |
| 5 | 2.200 | Y | 2.200 | 2.175 | 2.175 | 22.000 |
| 6 | 2.000 | N | 2.000 | 2.025 | 1.975 | 2.000 |
Learn PCB and Buy PCB

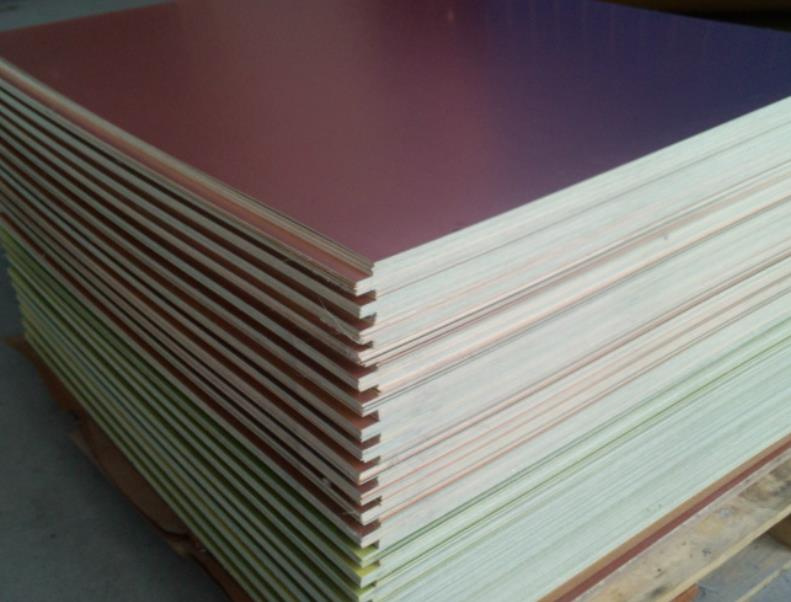

Specifications of Laminates FR-4
When ordering a copper clad laminate board, the FR-4 thickness and the copper foil thickness
must be specified separately.
FR-4 thickness is specified in thou or inches, and common thicknesses range from 10 thou
(0.010 in, 254 µm) to 3 inches (76 mm).
Copper foil thickness is specified in units of ounces per square foot (oz/ft2), commonly referred
to simply as ounce. Common thicknesses are 1 oz/ft2 (300 g/m2), 2 oz/ft2 (600 g/m2), and 3
oz/ft2(900 g/m2).
These work out to thicknesses of 34.1 µm (1.34 thou), 68.2 µm (2.68 thou), and 102.3 µm (4.02
thou), respectively. Some PCB manufacturers refer to 1 oz/ft2 copper foil as having a thickness
of 35 µm (may also be referred to as 35μ, 35micron, or 35mic).
1/0 - denotes 1 oz/ft2 copper one side, with no copper on the other side.
1/1 - denotes 1 oz/ft2 copper on both sides.
H/0 or H/H - denotes 0.5 oz/ft2 copper on one or both sides, respectively.
2/0 or 2/2 - denotes 2 oz/ft2 copper on one or both sides, respectively.
Due to the development needs of electronic product installation technology and PCB technology,
the high Tg (Glass temperature) FR-4 products was born.
