Multilayer PCB 4 Layer RO435b and Fr4 Material Circuit Board
| Price: |
US $ 2.03/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-154-V1.54 |
| Final Foil External: |
1 Oz |
| Final Foil Internal: |
1 Oz |
| Final Height Of PCB: |
1.6mm |
| Surface Finish: |
Immersion Gold |
| Solder Mask Color: |
Green, Psr-2000 Kx700g, Taiyo Supplied. |
| Colour Of Component Legend: |
White, Ijr-4000 MW300, Taiyo Supplied. |
| Minimum Trace And Space: |
5 Mil/5.3 Mil |
| Minimum / Maximum Holes: |
0.3/5.98mm |
| Board Plating: |
0.0030" (0.076mm) |
| Test: |
100% Electrical Test Prior Shipment |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V0 |
| Material: |
Hydrocarbon/Woven Glass and Fiberglass Epoxy |
| Insulation Materials: |
Glass Reinforced Hydro Carbon and Epoxy Resin |
| Dielectric: |
Fr-4 Tg135 and RO4350b Tg 288 |
Product Description

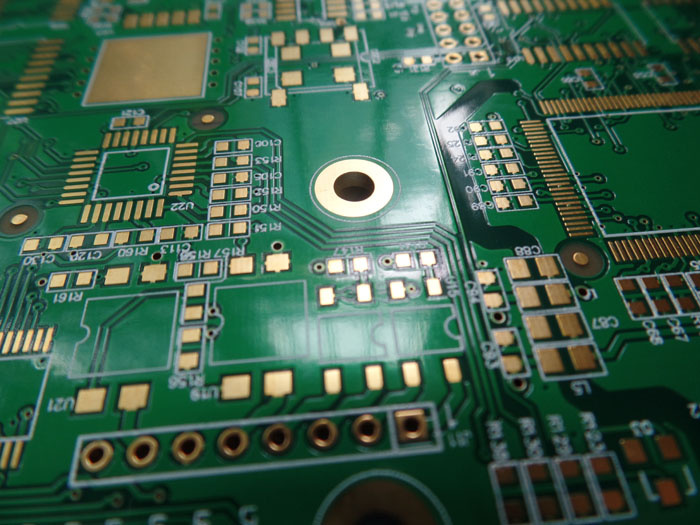

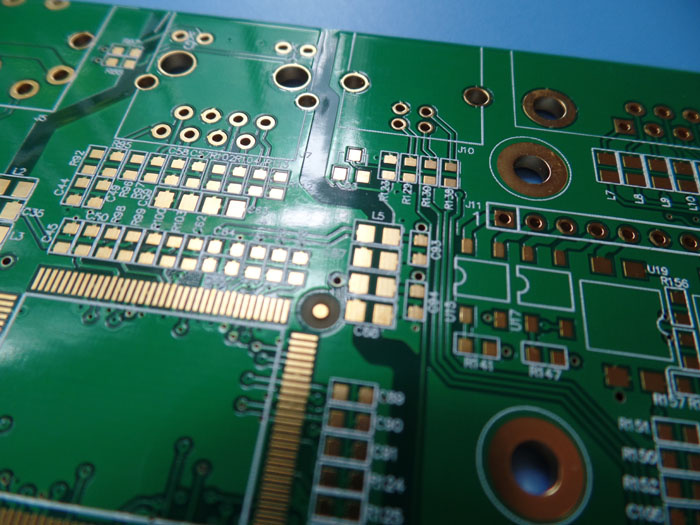

Hybrid Printed Circuit Board PCB 4 Layers RO435B and FR4 0.508mm Dielectric Immersion Gold PCB
Commodity IntroductionThis is a type of FR-4 and RO4350B PCB for the application of RF transceiver. It's a 4 layer board at 1.6mm thick. The base laminate is from ITEQ and ROGERS CORP., Solder mask and silkscreen from Taiyo. It's fabri
-cated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.
Parameters & Data Sheet| PCB SIZE | 295 x178mm=1PCS |
| BOARD TYPE | |
| Number of Layers | Multilayer Hybrid PCB, 4 layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | YES |
| LAYER STACKUP | Top layer, copper ------- 35 µm(1 oz) TOP layer |
| 0.508mm RO4350B (dielectric 1) |
| GND layer, copper ------- 35 µm(1 oz) MidLayer 1 |
| 0.40mm FR-4 (dielectric 2) |
| Signal layer, copper ------- 35 µm(1 oz) MidLayer 2 |
| 0.60mm FR-4 (dielectric 2) |
| Bottom layer, copper ------- 35 µm(1 oz) BOT Layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 5 mil/5.3 mil |
| Minimum / Maximum Holes: | 0.3/5.98mm |
| Number of Different Holes: | 14 |
| Number of Drill Holes: | 631 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control: | no |
| Number of Gold finger: | 0 |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4 TG135ºC and RO4350B Tg 288ºC |
| Final foil external: | 1 oz |
| Final foil internal: | 1 oz |
| Final height of PCB: | 1.6mm ±10% |
| PLATING AND COATING | |
| Surface Finish | Immersion gold (11.9% ), 0.05 um gold over 3 um nickel |
| Solder Mask Apply To: | TOP and Bottom, 12micron Minimum |
| Solder Mask Color: | Green, PSR-2000 KX700G, Taiyo Supplied. |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing. |
| MARKING | |
| Side of Component Legend | TOP. |
| Colour of Component Legend | White, IJR-4000 MW300, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and leged FREE AREA |
| VIA | Plated through hole(PTH) |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | RF transceiver, Switching Mode Power Supply
Switch Power Supply
DC Variable Power Supply
Puls Power Supply
24 VDC Power Supply |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Frequently Asked Questions
1. Do you sell quick turn (fast PCB) prototypes?Yes. We offer PCB prototypes and quick turn prototypes. The quickest time is 24 hours for double sided
and 5 days for 4 layer PCB. The disadvantage of quick turn is high cost.2. Do you offer Mass production?Yes. We have the independent industrial plant. There're 15000 square meters workshop area. And the
brand new automatic equipment were introduced from Israel, Germany, Japan and Taiwan area. As of
now, the manufacturing capability for 2-12 layer PCBs is 300 thousand square feet per month. 5000
types of different PCBs are shipped to worldwide each monthMass production capability The manufacturing facilities are independent industrial plant. There're 16000 square meters workshop
area. And the brand new automatic equipment was introduced from Israel, Germany, Japan and Taiwan
area. As of now the manufacturing capability for 2-12 layer PCBs covers 300 thousand square feet per
month. 7000-8000 types of different PCBs are shipped to worldwide each month. PRODUCTS & SERVICESa) FR-4 TG>135, High TG>170, High CTI>600Vb) RO4350B, RO4003C, F4B microwave materialc) Aluminum based PCB, 1W/MK-3W/MK materiald) Layer Count up to 32 layerse) Heavy Copperf) Hybrid Material Multilayer PCBg) Impedance Controlled PCBh) HASL Lead free, Electroless Nickle Immersion Gold (ENIG), Immersion Silver, Immersion Tin, OSPi) Colour of Solder mask: Green, Blue, Yellow, Black, Red and it's relative Matt colorj) Special holes: blind via, countersink hole, castellation hole, press-fit holek) Quick turn-around (QTA) Deliveryl) Minimum Order Quantity (MOQ) 1 pcsm) Door to Door shipment service SERVICE AREANorth America, Oceania, Southeast Asia, Eastern Europe, Africa, Latin America, Western & Southern
Europe, Northern Europe, Central & South Asian, Middle East.
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
