Multilayer PCB 4 Layer Single Trace Impdeance Controlled 1.0mm Thick
| Price: |
US $ 0.47/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC1229R2.9 |
| Copper Thick: |
1 Oz |
| Legend Color: |
White |
| Surface Finish: |
HASL Lead Free |
| Minimum Trace And Space: |
7 Mil/6 Mil |
| Board Thick: |
1.0mm |
| Solder Mask Color: |
Green |
| Minimum / Maximum Holes: |
0.9mm/3.3mm |
| Impedance Control: |
Single Trace 59 Ohm |
| Via: |
Via Tented |
| Test: |
100% Electrical Test |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description
Multi layer PCB Process Impedance Controlled PCB 4 Layer PCB FR-4 Tg135 1.0mm Thick
Applied In Intercom
Commodity Introduction

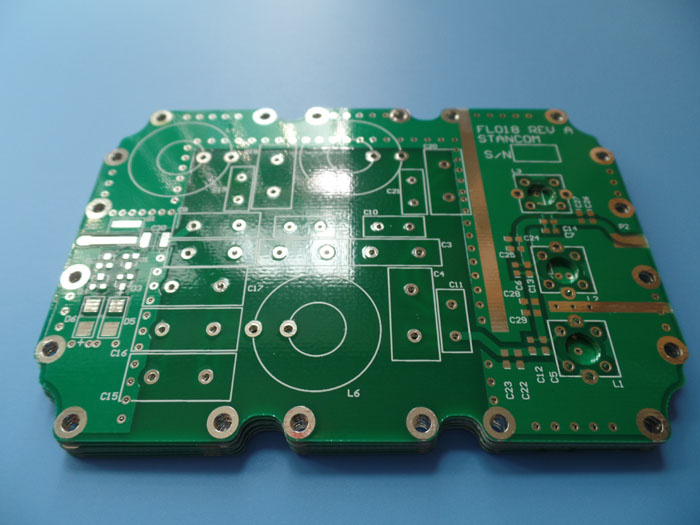

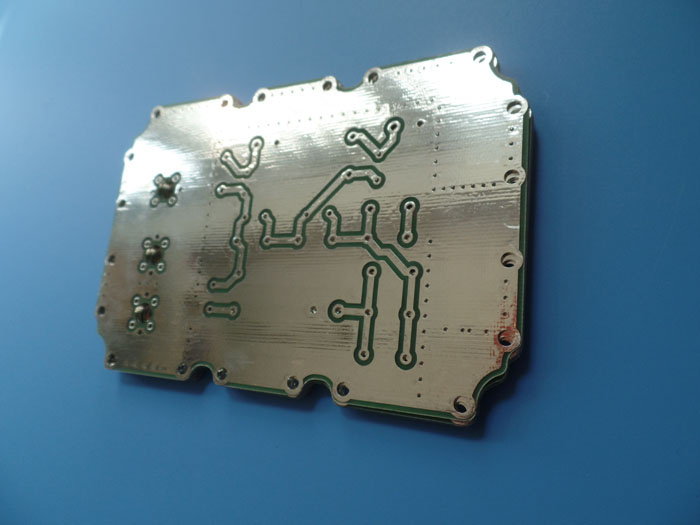

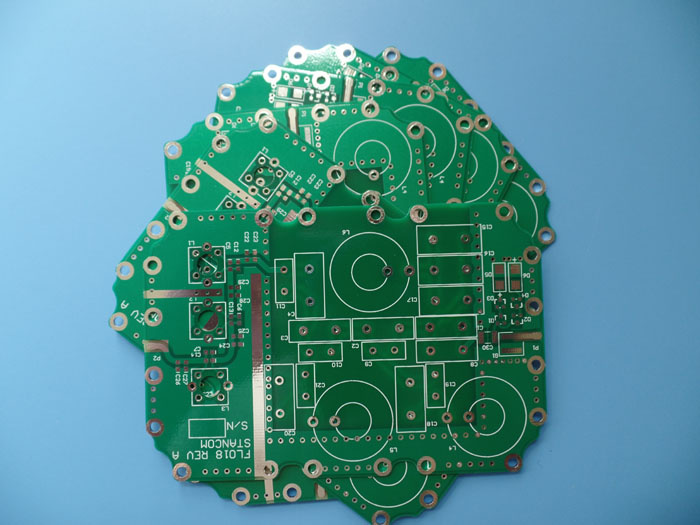

This is a type of FR-4 PCB for the application of Intercom. It's a 4 layer board at 1.0mm thick. The base laminate is from ITEQ, Solder mask and silkscreen from Kuang Shun and Taiyo. It's fabricat
-ed per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed
separately.
Parameters & Data Sheet| PCB SIZE | 78 x 53mm=1PCS |
| BOARD TYPE | |
| Number of Layers | Multilayer PCB, 4 Layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | YES |
| LAYER STACKUP | copper ------- 35um(1oz)+plate TOP layer |
| 7628H x 1 0.195mm |
| copper ------- 35um(1oz) |
| Core FR-4 0.4mm |
| copper ------- 35um(1oz) |
| 7628H x 1 0.195mm |
| copper ------- 35um(1oz)+plate BOT Layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 7mil/6mil |
| Minimum / Maximum Holes: | 0.9mm/3.3mm |
| Number of Different Holes: | 6 |
| Number of Drill Holes: | 512 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | Single trace impdeance control. L1, 7mil,
65 ohm+/-10%, L1 , 9mil, 59 ohm+/-10% |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4, ITEQ IT-140 TG>135, er<5.4 |
| Final foil external: | 1.5oz |
| Final foil internal: | 1oz |
| Final height of PCB: | 1.0mm ±0.1 |
| PLATING AND COATING | |
| Surface Finish | HASL Lead Free, Sn>=2.54µm |
| Solder Mask Apply To: | Top |
| Solder Mask Color: | Green, LP-4G G-05, Nanya supplied |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing, Fiducial Marks |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White, S-380W, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and
leged FREE AREA |
| VIA | Plated Through Hole(PTH), via tented |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Intercom, Antena Wifi
Mobile Broadband
Tracker GPS
Wireless Extender
LTE Router |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
The role of Printed circuit board (PCB)
Printed circuit board (short for PCB) is an important electronic part. It is the supporting body
of electronic component and the electrical connection supporter of electronic component. Sin
-ce it's made by electronic printing, it's called printed circuit board.
After PCBs are applied in electronic equipment, since it's consistency of the same board, it
confidently avoids the error of manual wiring. PCB can achieve the automatic pick and place
or surface mounting, automatic soldering, automatic inspection. It guarantees the quality of
electronic equipment. The labor productivity is improved, the cost is reduced and the mainte
-nance is convenient.
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
