Multilayer PCB 4layer Fr4 with HASL Surface Finish
| Price: |
US $ 0.6/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-268-V2.68 |
| Board Thickness: |
1.62-1.65mm |
| Outer Copper Foil: |
46.26um |
| Inner Copper Foil: |
H/H Oz |
| Surface Treament: |
HASL |
| Solder Mask: |
Green,Psr-2000gt600d |
| Legend: |
White,Kuang Shun |
| Min Line Width (Mil): |
6.5 |
| Min Line Spacing (Mil): |
3.5 |
| Electrical Test: |
100% PCB Passed |
| Solderability Test: |
245ºC 5s 1 Cycle |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |

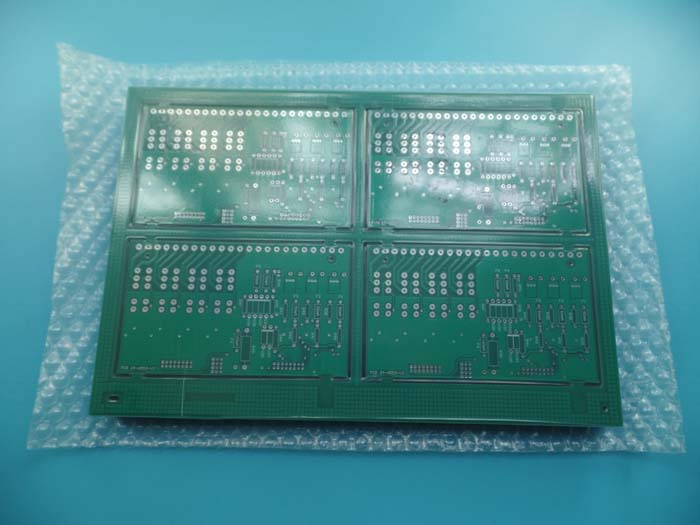

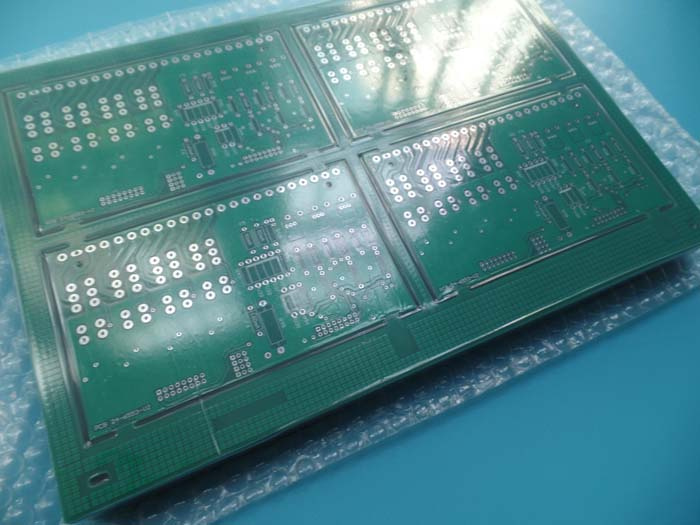

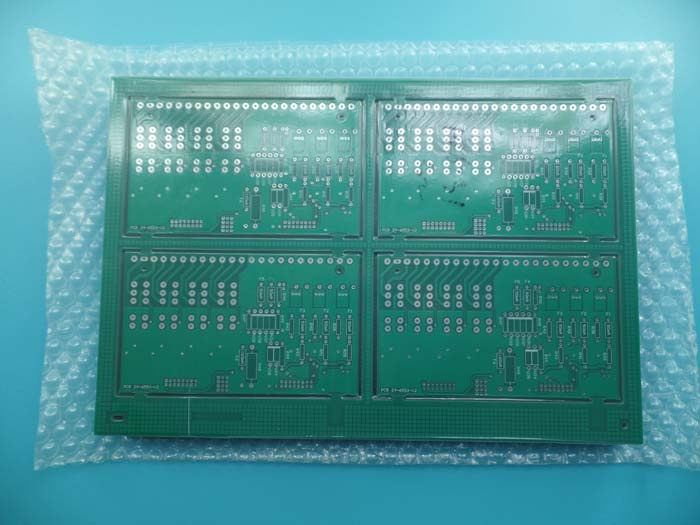

Product Description
4 Layer 1.62-1.65mm thick PCB Green Solder Mask 13um thick Lead Free HASL
in Transmitter
Commodity Introduction
This is a type of FR-4 PCB for the application of Transmitter. It's a 4 layer board at 1.6mm
thick.The base laminate is from ITEQ, Solder mask and silkscreen from KUANG SHUN and
Taiyo. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or
panels are packed separately.
Parameters & Data Sheet| Item | Requirement | Result |
| Laminate | Type | FR-4 | FR-4 |
| Supplier | ITEQ | ITEQ |
| Board thickness | 1.60±0.1mm | 1.62-1.65mm |
| Outer copper foil | >=35 um | 46.26um |
| Inner copper foil | H/H OZ | H/H OZ |
| Warp-twist | <=0.75% | 0.06%(max) |
| Legend | Legend Type | KUANG SHUN | KUANG SHUN |
| Color | White | White |
| Location | CS & SS | CS & SS |
| Marking | Co.logo | YES | OK |
| UL.logo | YES | OK |
| Date code | WWYY | WWYY |
| Marking form | NA | OK |
| Location | CS | CS |
| Min line width (mil) | 6.7 | 6.5 |
| Min line spacing (mil) | 3.3 | 3.5 |
| Min ring width (mil) | NA | NA |
| Solder Mask | Type | PSR-2000GT600D | PSR-2000GT600D |
| Color | Green | Green |
| Thickness | >=10 um | 13 um |
| Pencil Test | 6H OR ABOVE | OK |
| SOLVENT TEST | NO ATTACK | OK |
| TAPE TEST | NO PEEL OFF | OK |
| Surface Treament | HASL | OK |
| Special Treament | Silk screen | / | / |
| Location | / | / |
| Forming | / | / |
| Normal Testing | Electrical test | 100% PCB passed | OK |
| Visual inspection | IPC-A-600H&IPC-6012C | OK |
| Solderability Test | 245ºC 5S 1 Cycle | OK |
Finished dimension (unit: mm): including v-cut| No | Required Dimension (tolerance) | Actual Dimension |
| 1 | 100.00±0.15 | 99.99 | 100.05 | 100.06 | 100.00 |
| 2 | 45.00±0.15 | 44.94 | 44.94 | 44.94 | 45.11 |
Hole size and slot dimension(unit: mm)| No | REQ Dimension (tolerance) | PTH | Actual Dimension |
| 1 | 2.000±0.05 | N | 2.000 | 1.975 | 2.025 | 2.000 |
| 2 | 4.000±0.05 | N | 4.000 | 3.975 | 4.025 | 4.000 |
Learn PCB and Buy PCB

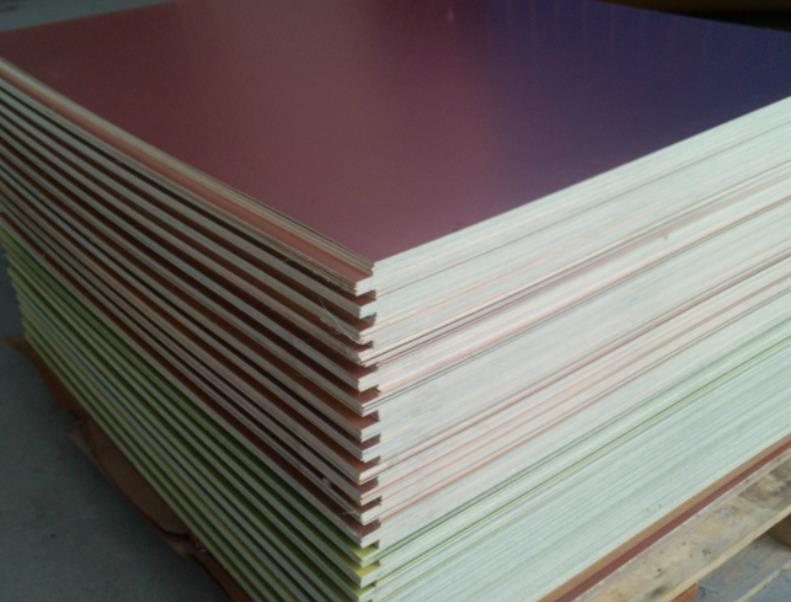

Specifications of Laminates FR-4
When ordering a copper clad laminate board, the FR-4 thickness and the copper foil thickness
must be specified separately.
FR-4 thickness is specified in thou or inches, and common thicknesses range from 10 thou (0.010
in, 254 µm) to 3 inches (76 mm).Copper foil thickness is specified in units of ounces per square
foot (oz/ft2), commonly referred to simply as ounce. Common thicknesses are 1 oz/ft2 (300 g/m2),
2 oz/ft2 (600 g/m2), and 3 oz/ft2 (900 g/m2). These work out to thicknesses of 34.1 µm (1.34 thou),
68.2 µm (2.68 thou), and 102.3 µm (4.02 thou), respectively.
Some PCB manufacturers refer to 1 oz/ft2 copper foil as having a thickness of 35 µm (may also be
referred to as 35 μ, 35 micron, or 35 mic).
1/0 - denotes 1 oz/ft2 copper one side, with no copper on the other side.
1/1 - denotes 1 oz/ft2 copper on both sides.
H/0 or H/H - denotes 0.5 oz/ft2 copper on one or both sides, respectively.
2/0 or 2/2 - denotes 2 oz/ft2 copper on one or both sides, respectively.
Due to the development needs of electronic product installation technology and PCB technology,
the high Tg (Glass temperature) FR-4 products was born.
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
