Multilayer PCB 8layer OSP Finished with Red Soldermask

Name: Multilayer PCB 8layer OSP Finished with Red Soldermask
Brand: all-electronics-online.com
SKU: 823060865
Availability: InStock
Rating: 4.3 (67 reviews)

Price:	US $ 0.75/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BIC-238-V2.38
Outer Copper Foil:	1oz
Board Thickness:	1.6mm
Surface Treament:	OSP
Solder Mask:	Red, Kuang Shun
Legend:	White, Kuang Shun
Min Line Width (Mil):	8.3
Min Line Spacing (Mil):	5.7
Electrical Test:	100% PCB Passed
Visual Inspection:	Ipc-a-600h&Ipc-6012c
Solderability Test:	245ºC 5s 1 Cycle
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0

Product Description

High Tg170 FR4 8 Layer 1.6mm Thick PCB With Red Solder Mask 8.5mils space and 100%
Pass in Hdmi Switch

Commodity Introduction

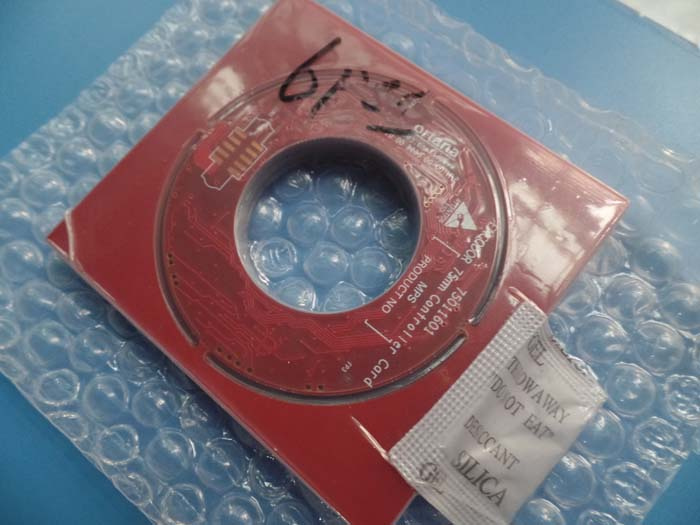

This is a type of FR-4 PCB for the application of Hdmi Switch. It's an 8 layer board at 1.6mm
thick.The base laminate is from ITEQ, Solder mask and silkscreen from KUANG SHUN. It's
fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are
packed separately.

Parameters & Data Sheet

Item		Requirement	Result
Laminate	Type	FR-4 TG170	FR-4 TG170
	Supplier	ITEQ	ITEQ
	Board thickness	1.6+/-10%mm	1.63-1.65mm
	Outer copper foil	>=35 um	42.66
	Inner copper foil	1/1OZ	1/1 OZ
	Warp-twist	<= 0.75%	0.30%
Legend	Type	KUANG SHUN	KUANG SHUN
	Color	White	White
	Location	CS	CS &
Marking	Co.logo	YES	OK
	UL.logo	YES	OK
	Date code	WWYY	WWYY
	Marking form	NA	OK
	Location	CS	CS
Min line width (mil)		8.5	8.3
Min line spacing (mil)		5.5	5.7
Min ring width (mil)		NA	NA
Solder Mask	Type	KUANG SHUN	KUANG SHUN
	Color	Red	Red
	Thickness	>=10 um	13 um
	Pencil Test	6H OR ABOVE	OK
	SOLVENT TEST	NO ATTACK	OK
	TAPE TEST	NO PEEL OFF	OK
Surface Treament	OSP		OK
Special Treament	Silk screen	/	/
	Location	/	/
	Forming	V-cut	OK
Normal Testing	Electrical test	100% PCB passed	OK
	Visual inspection	IPC-A-600H&IPC-6012C	OK
	Solderability Test	245ºC 5S 1 Cycle	OK

Finished dimension (unit: mm): including v-cut

No	Required Dimension (tolerance)	Actual Dimension
1	170.00	170.08	169.97	169.93	170.02
2	150.00	149.96	149.94	149.92	149.90

Hole size and slot dimension(unit: mm, PTH tolerance +/-0.076, NPTH +/-0.05mm)

No	Required	PTH	Actual Dimension
1	0.850	Y	0.850	0.825	0.875	0.85.
2	1.050	Y	1.050	1.025	1.075	1.050
3	1.150	Y	1.150	1.125	1.175	1.150
4	1.250	Y	1.250	1.225	1.275	1.250
5	1.850	Y	1.850	1.825	1.875	1.850
6	3.050	N	3.500	3.025	3.075	3.050

Learn PCB and Buy PCB
Laminates --- FR-4 Applied on printed circuit boards (PCBs)

FR-4 grade materials are generally used on the circuit board has many types, but most are based
on the so-called four function (Tera-Function) composite material which is composed of woven
fiberglass cloth with an epoxy resin binder that is flame resistant.

FR-4 is the primary insulating backbone upon which the vast majority of rigid printed circuit boards
(PCBs) are produced. A thin layer of copper foil is laminated to one or both sides of an FR-4 glass
epoxy panel. These are commonly referred to as copper clad laminates (CCL).

FR-4 copper-clad sheets are fabricated with circuitry interconnections etched into copper layers to
produce printed circuit boards (PCBs). More sophisticated and complex FR-4 printed circuit boards
(PCBs) are produced in multiple layers, also known as "multilayer circuitry".

Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.

The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.

Different plant scale to suit for your requirements

16000 square meter factory building

30000 square meter month capability

8000 types of PCB per month

ISO9001, ISO14001, TS16949, UL Certified

We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.

A) Various kinds of PCB products

Double sided PCB

Multilayer PCB up to 32 layers

FR-4 PCB (Tg130, Tg170)

High frequency PCB (RO4350B, RO4003C)

Aluminum PCB (1W/MK, 2W/MK, 3W/MK)

Flexible PCB

HDI PCB Board

B) Multiple PCB technology to meet the market demands

Blind via PCB, Via in pad PCB, Fine pitch BGA PCB

Impedance controlled PCB

Heavy copper PCB

Hybrid material PCB

C) Many discount policies for new customers

SMT stencil foil, free of charge

Prototype shipping cost, free of charge

Prototype test, free of charge

PCB panelization, free of charge

D) High quality PCB services

Engineering design prevents problems from occurring in pre-production.

Meet your PCB needs from prototype to mass volume production.

Eligible products rate of first production: >95%

Delivery on time: >98%, door to door shipment service

Customer complaint rate: <1%

Choose BichengPCB means you choose hassle free.
